* HDPE PLASTIC PIPE EXTRUSION LINE :Extrusion Capability-(900mm-1600mm)
( OPTION 1) COMPLETE LINE. TENDERER'S CAN MAKE AN OFFER FOR THE COMPLETE LINE AS CATALOGUED. (OPTION 2) PART/S OF THE LINE. TENDERER'S CAN MAKE AN OFFER ON INDIVIDUAL COMPONENTS OF THE EXTRUSION LINE. TENDERER'S ARE TO NOMINATE THESE COMPONENT/S ON THE TENDER RESPONSE FORM UNDER LOT 1

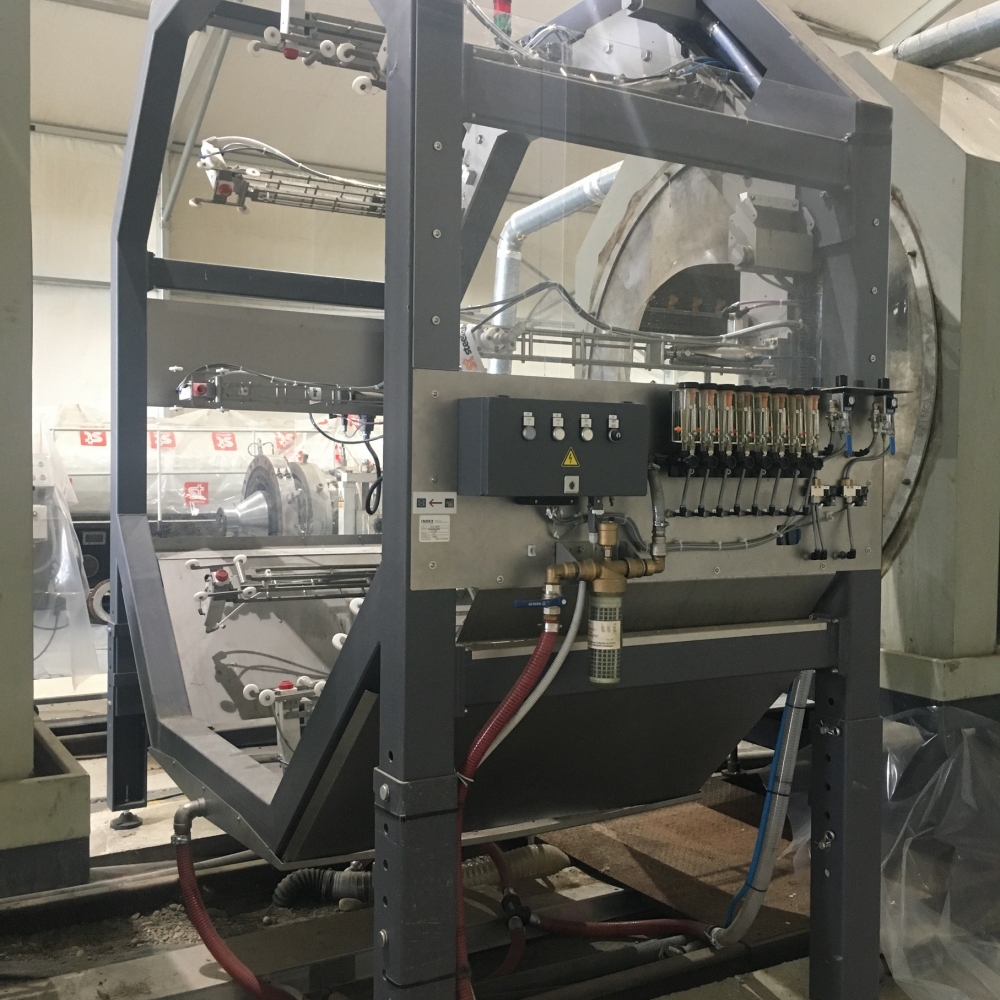

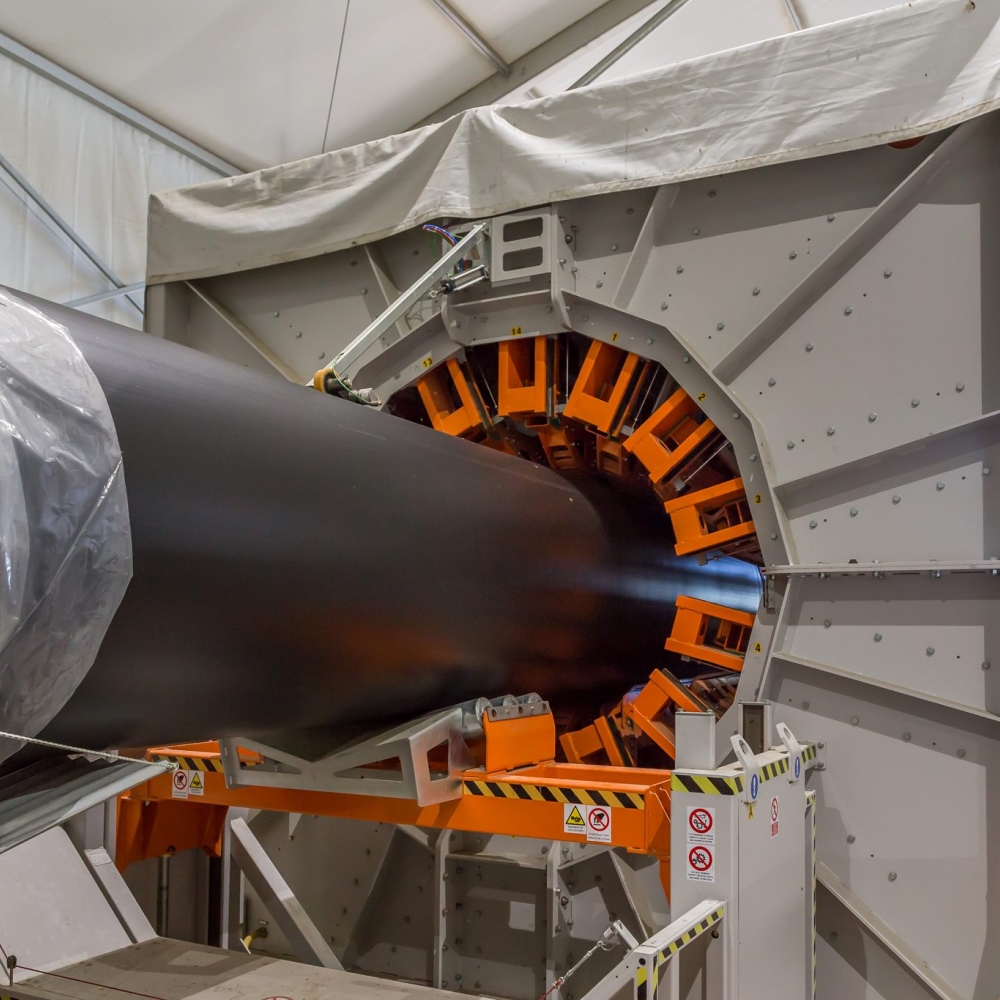

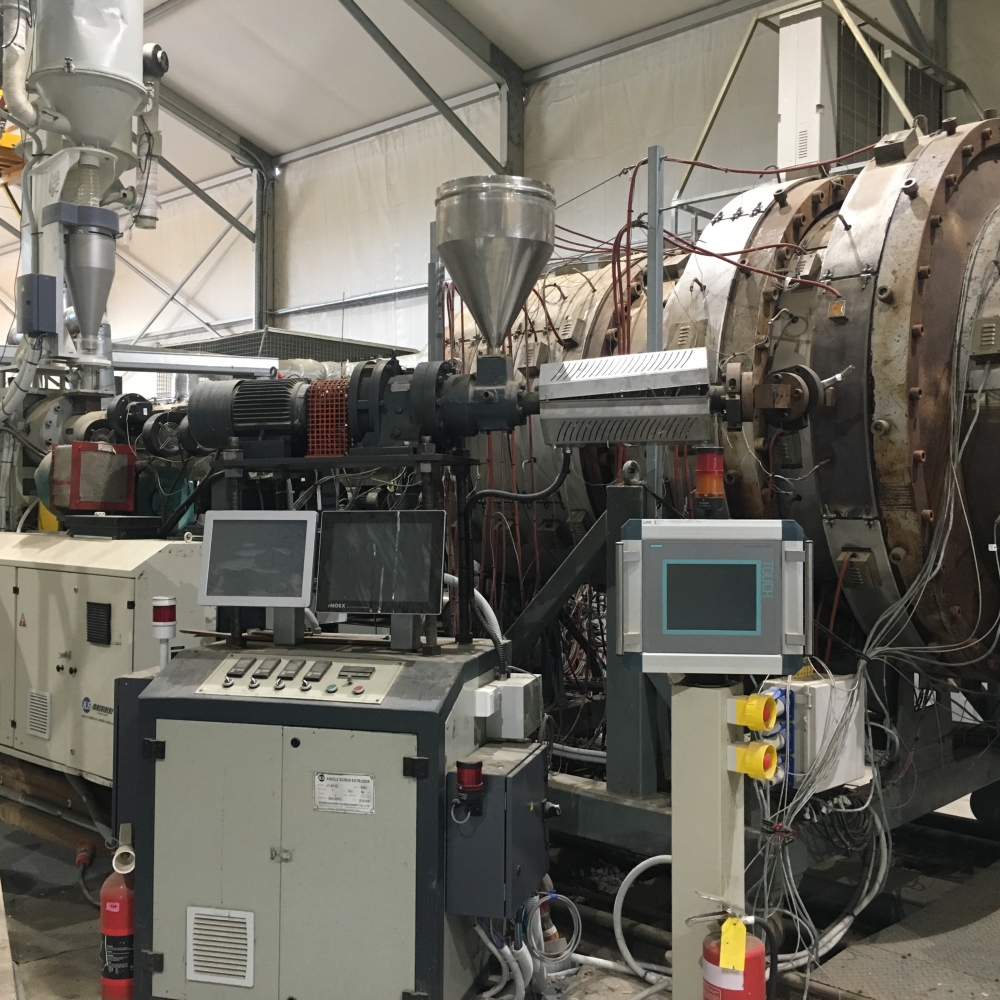

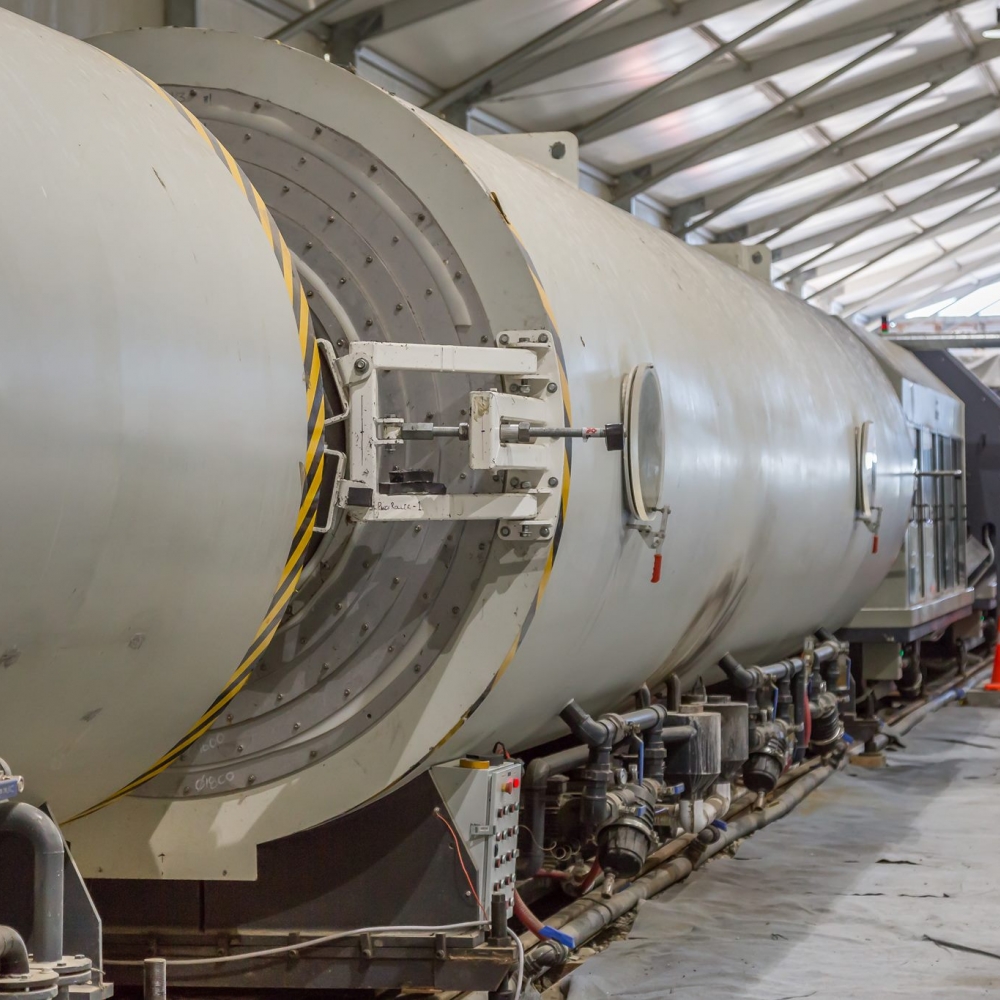

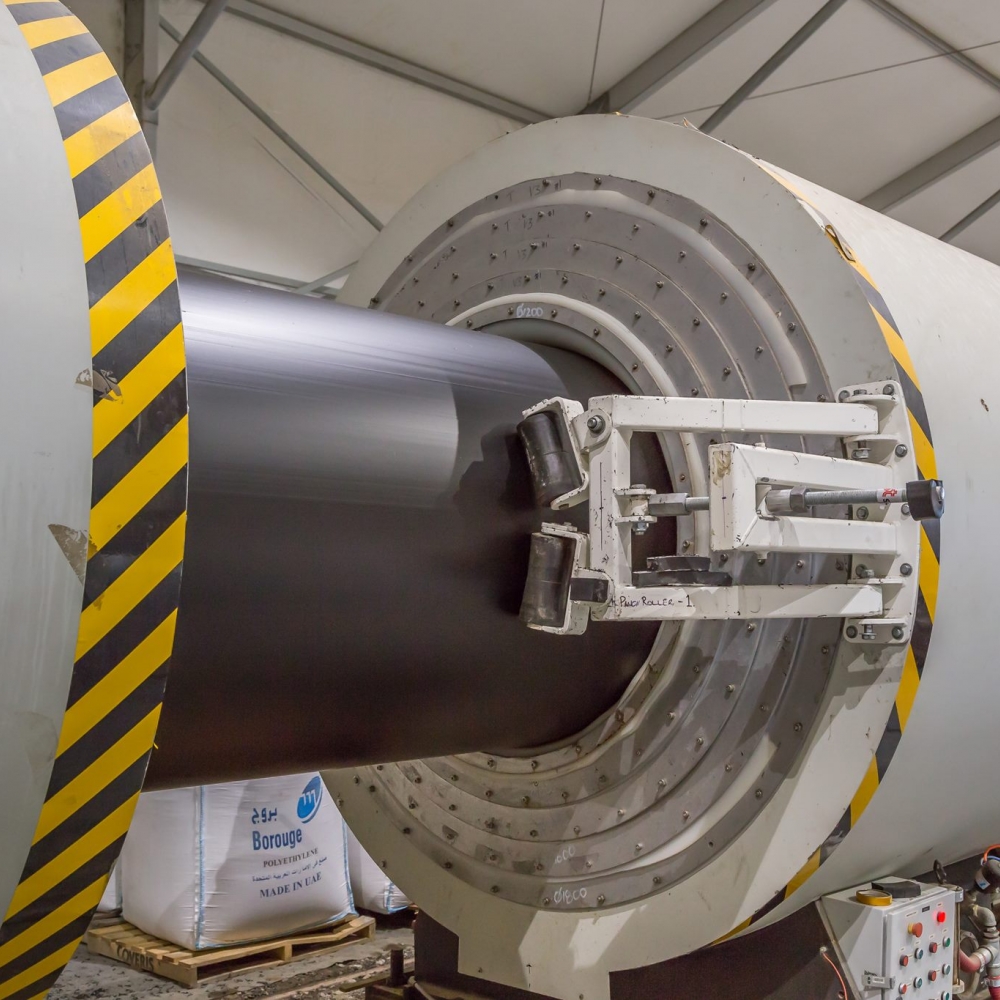

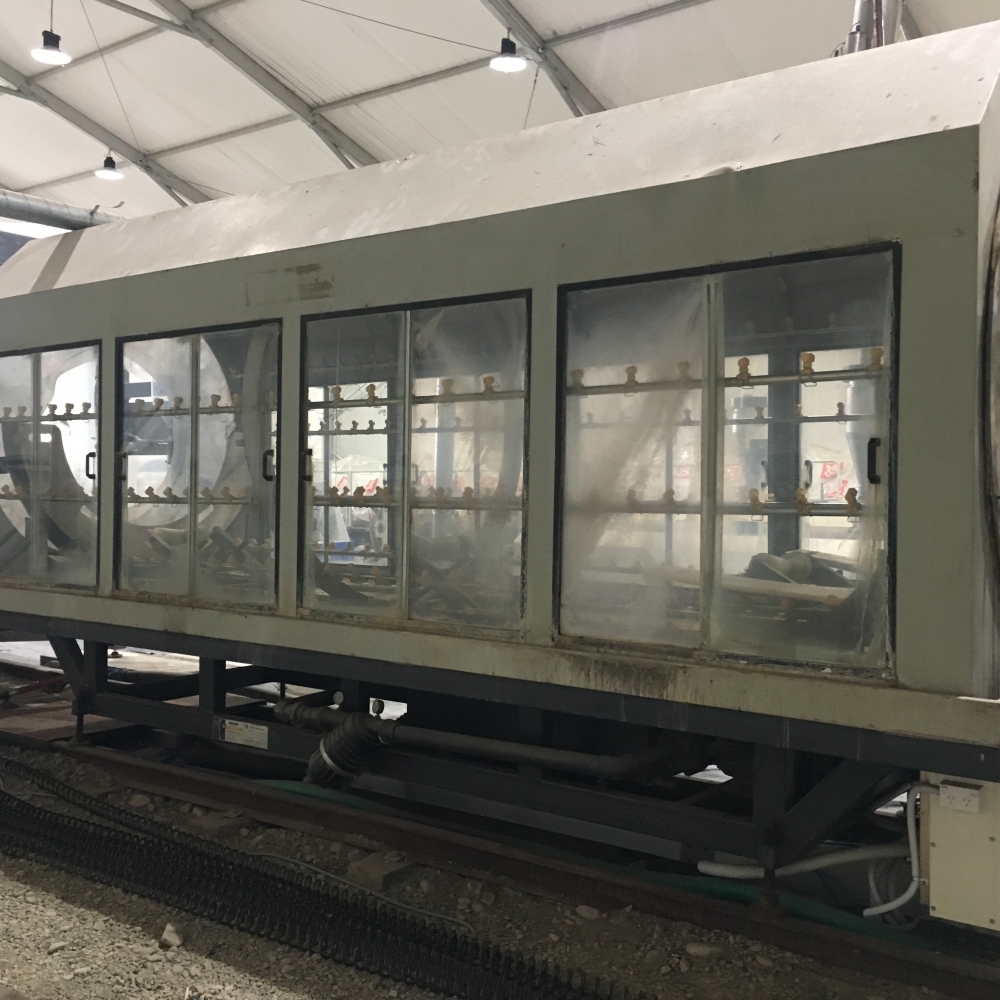

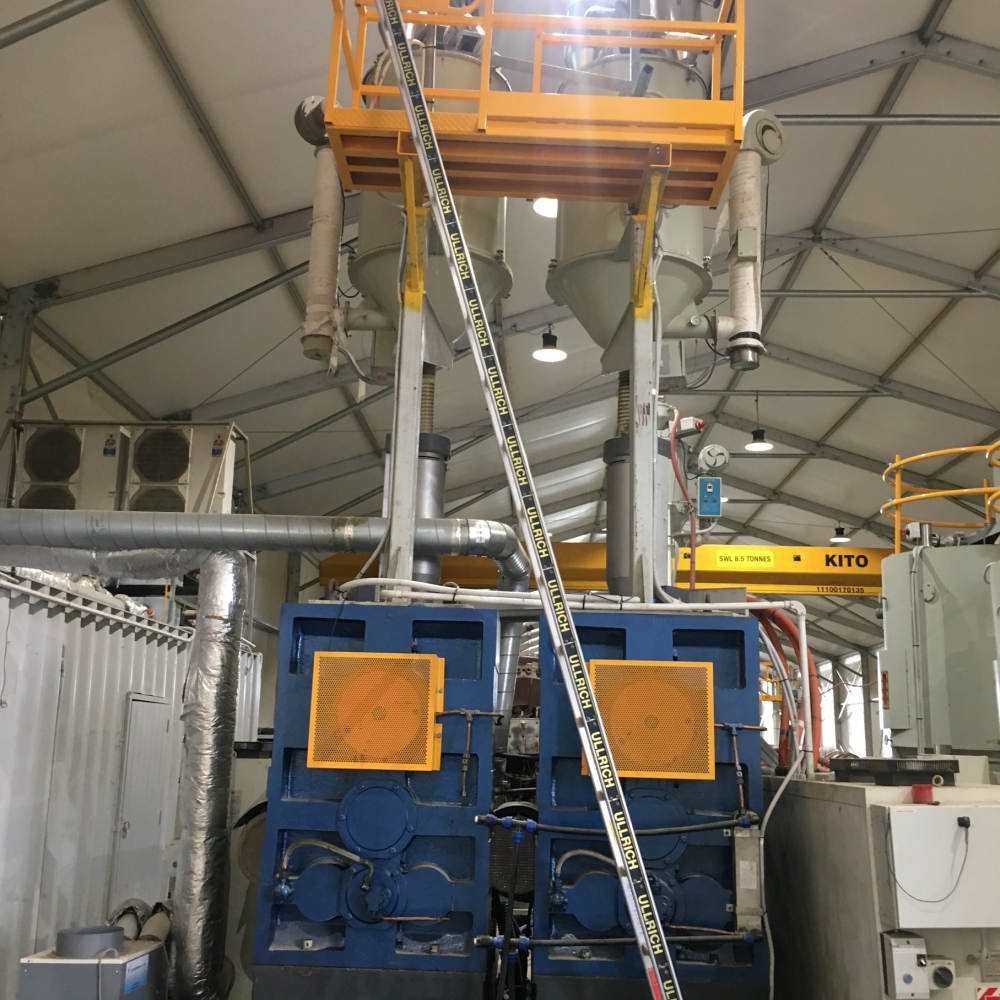

1600 LINE- EXTRUDER-2 X 150MM Extruders.Output per extruder,optimal 800 kg/ph(untested up to 1200kg/ph) 1 x 65mm extruder.Output 100/kg/ph. Comes with 2 x material hoppers-500 kg. Calibration Tanks-Vacuum Tank1(2 sections to enable dual vacuum control) includes Inoex ecco Ultrasonic measuring system to guide calibration. Vacuum tank 2..Quality Control-Inoex x Line Ultrasonic Measuring System and gravimetric system (Germany)This is linked to the extruders, haul off and material hoppers to allow full automation.Collects and monitors quality information. Spray Tank x 4 cools pipe to maintain pipe integrity and allow accurate measuring once cut. SICA Haul Off-P2000/14 plus (italy). Its Range is 630mm to 2000mm.It pulls the pipe at a constant speed during the extrusion process to maintain wall thickness. 1 x Planetary Saw(refurbished)..1 x Power Roller, assists with pulling the pipe once it has been cut..Material Dryer-(1x 2tn) 1x(3tn)
It was running at-1600kg per hour. New screw and barrel.Tested but has not run more than 100 hrs.Complete gearbox refurbishment,including thrust bearings.Installed less than 12 months ago.Heater bands/ elements and wiring upgrades.
* Haul Off-SICA(Italy) new 2016.
* Inoex ultrasonic measuring system(Germany) new 2016.

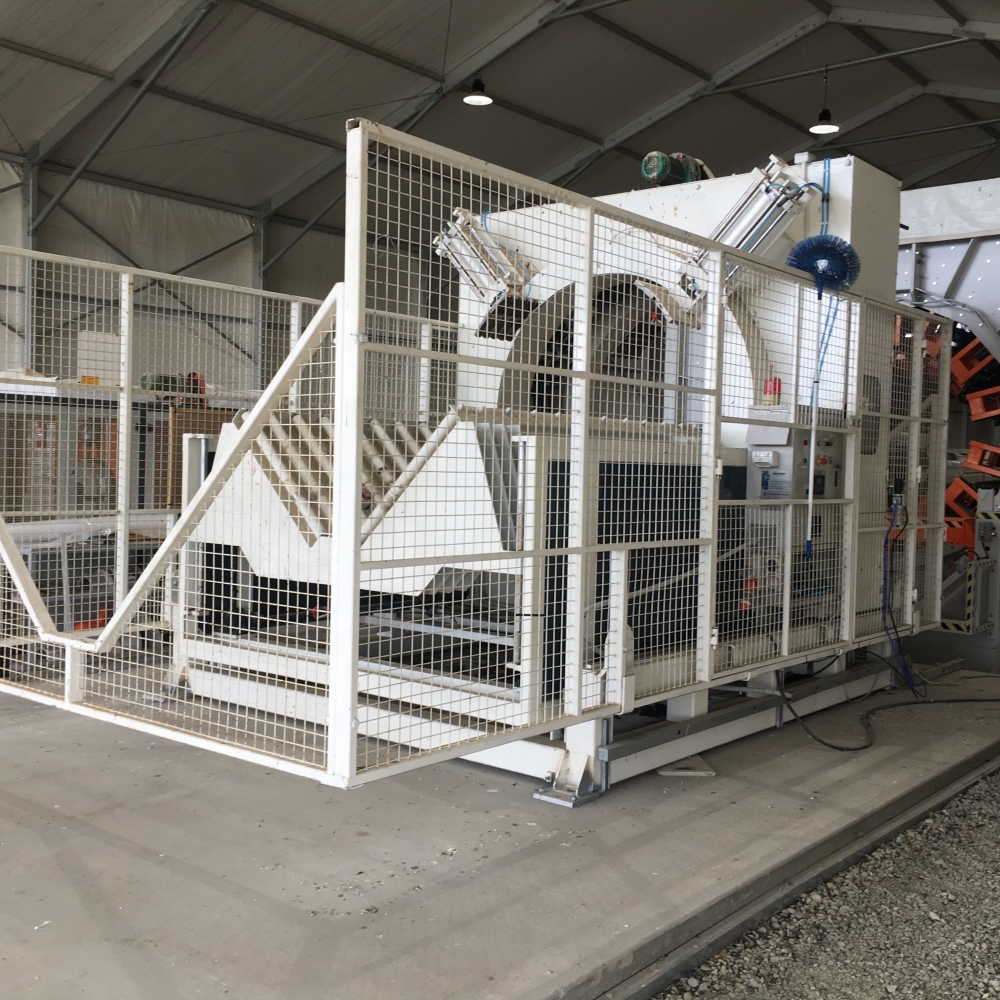

* Saw:Total refrbishment 2017(Pneumatics, Wiring, PLC, Clamp System) with assisting roller.
*Cooling and vacuum tanks:wiring upgrade throughout, new vacuum and water pumps, 2000mmm additional vacuum tank, install date approx-2015 .All non compliant electrical components replaced.Comes with assorted Spare Parts.
EXTRACTION/ DECOMMISSIONING/ LOADING COSTS
Extraction of complete Line, including the below factors/equipment, and load to truck or flat rack base.Included in estimate: labour,required hoists, travel and relocation of our equipment, cranage(franna for smaller items, 30T capable crane to load head)engineer for duration-($63,000.00 + gst)
Leaving Site: 16-18 flatracks will be Required. 1-2 20 ft containers-($3800.00 + gst) to get all empties to site. ($625.00 + gst) per flat rack or container site to Lyttelton(includes VBS booking at Port) 1x load out of gauge, additional $220.00 + gst for Pilot. Quote based on using combilift onsite.
If Trucked away 11-12 truckloads will be required. ($1000.00 + gst )per load to Christchurch receiver to unload.($ 5780.00 + GST) per load to Auckland/ receiver to unload. This allows for reasonable unloading time.
*EXTRACTION DATES-(Monday-11th March) to (Friday-29th March)
* ELECTRICAL DECOMMISSIONING COST FOR THIS LOT-Disconnect from supply-($475.00 + gst) Additionally disconnect each item ready for uplift-($1900.00+ gst)
