HDPE PLASTIC PIPE EXTRUSION LINE: This line producers pipe from (160mm-450mm)
( OPTION 1) COMPLETE LINE. TENDERER'S CAN MAKE AN OFFER FOR THE COMPLETE LINE AS CATALOGUED. (OPTION 2) PART/S OF THE LINE. TENDERER'S CAN MAKE AN OFFER ON INDIVIDUAL COMPONENTS OF THE EXTRUSION LINE. TENDERER'S ARE TO NOMINATE THESE COMPONENT/S ON THE TENDER RESPONSE FORM UNDER LOT 2.

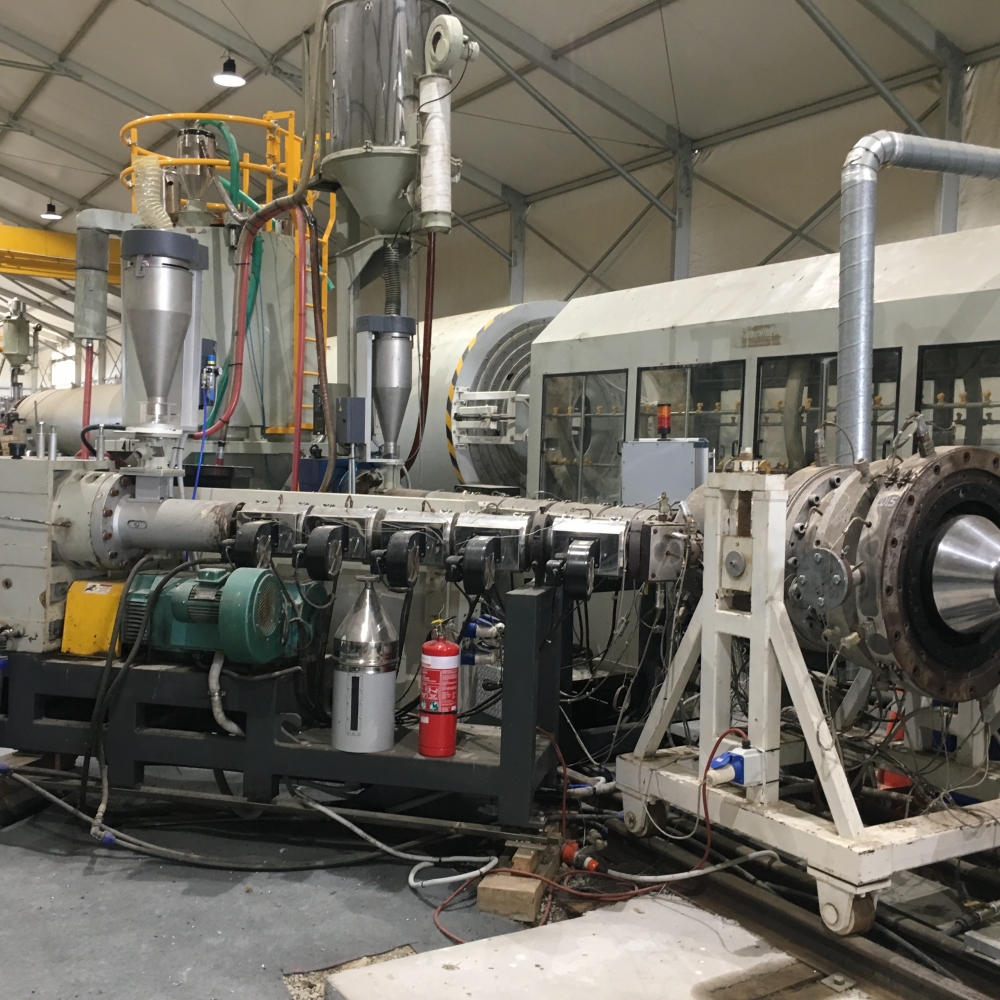

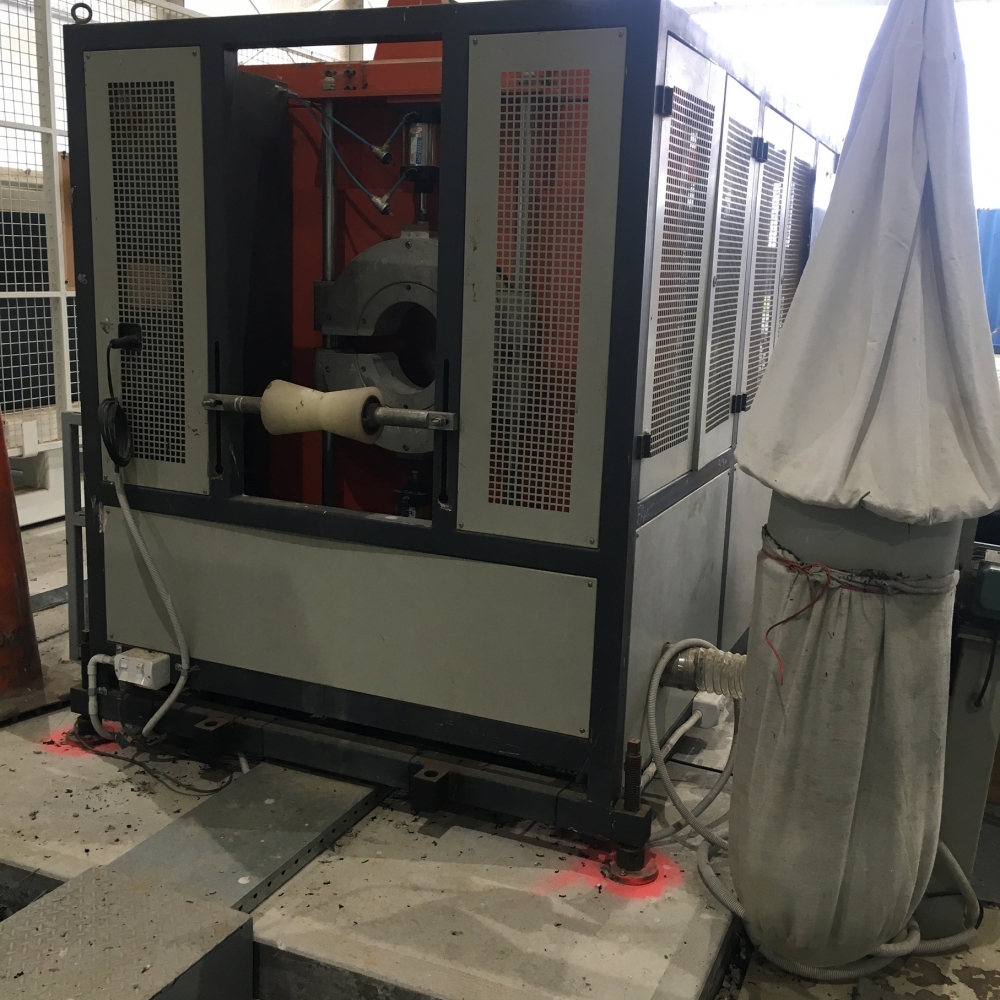

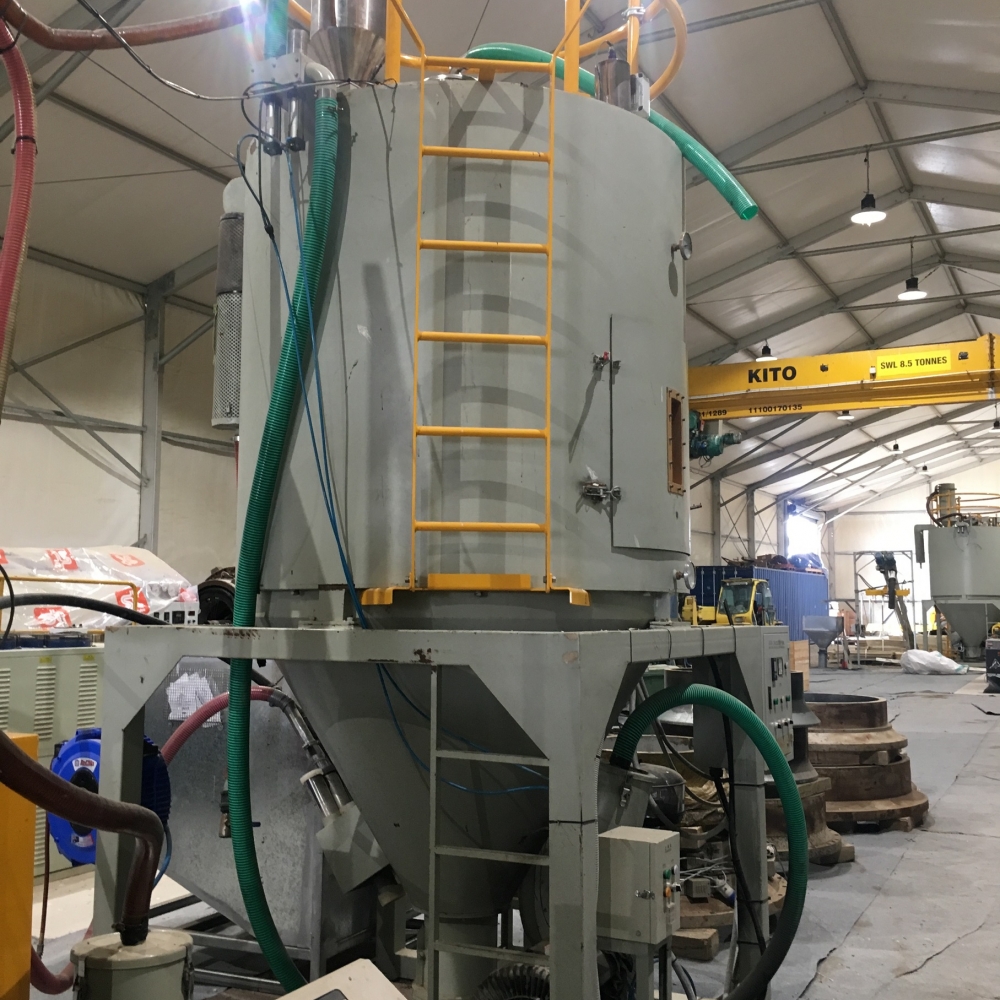

450 LINE EXTRUDER: 1 X 90MM Extruder-350 kg/ph...1 x 65mm extruder-100kg/ph...1 x material hopper-250 kg..1 x Calibration Tank/ vacuum tank (2 sections to enable dual vacuum control)..Spray Tanks x 2- cools pipe to maintain pipe integrity and allow accurate measuring once cut...Quality Control-Inoex Ecco Ultrasonic Measuring System and Gravimetric System.This is linked to Extruders,haul off and Material hoppers to allow full automation. Collects and monitors quality information...Haul Off-P500/6 PLUS) Its Range is 40mm to 500mm. It pulls pipe at a costant speed during the extrusion process to maintain wall thickness...Saw- Planetary Saw..Material Dryer- 1 x (2tn) It was run at 250kg per hour.
Complete gearbox refurbishment,including thrust bearings less than 12 months ago.
* Heater bands/ elements and wiring upgrades. * Spare screw and barrel.

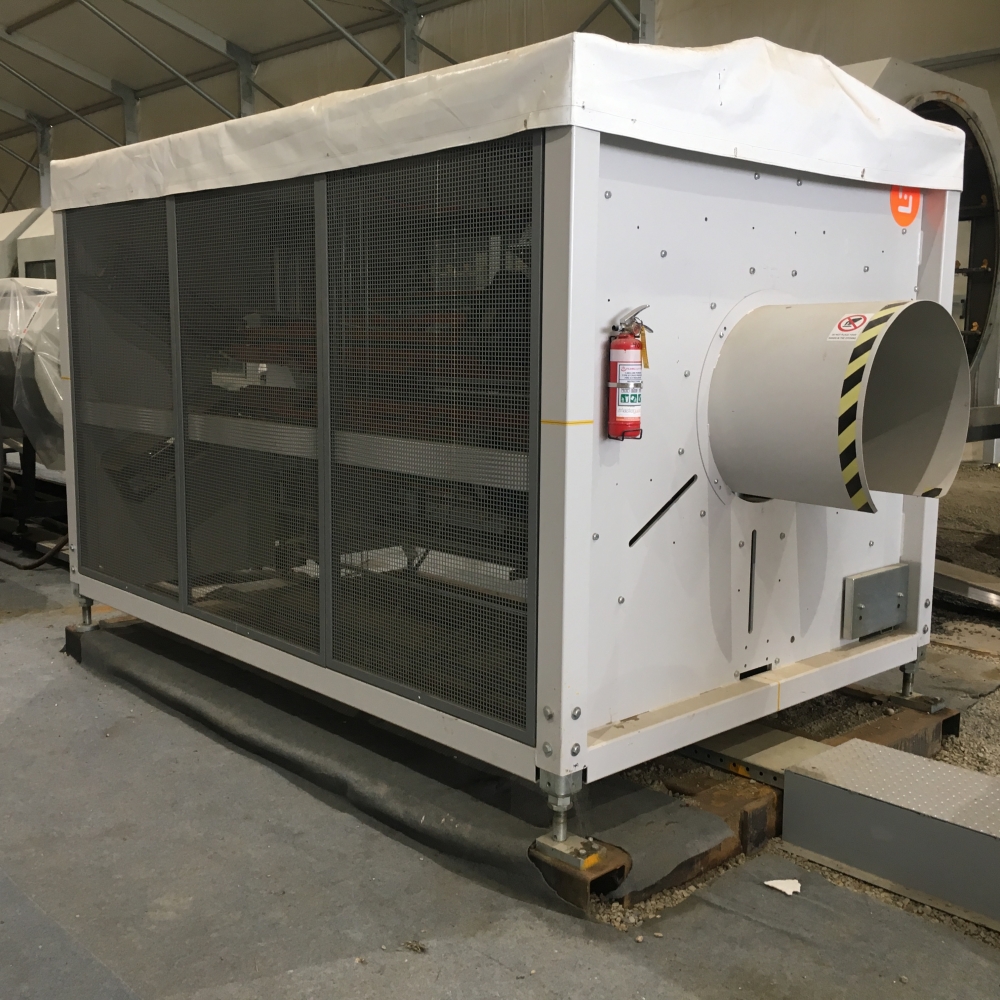

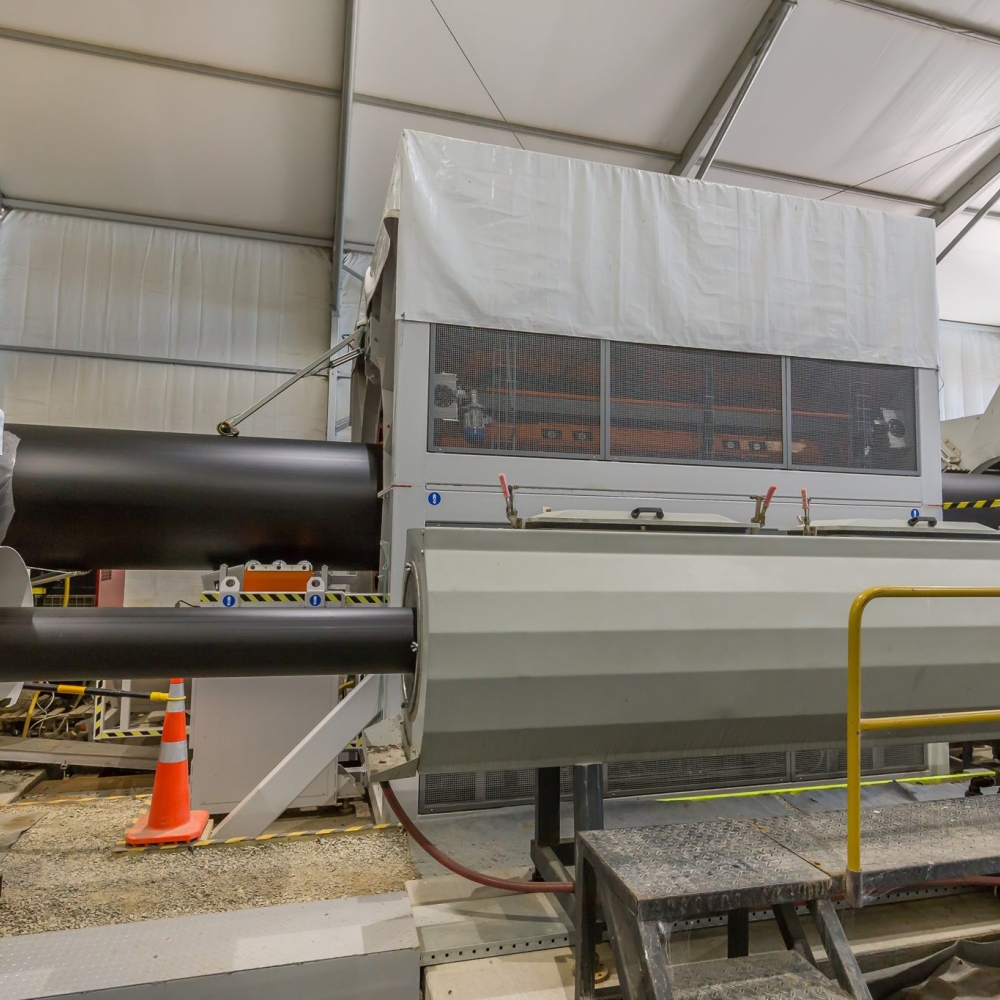

* HAUL OFF: SICA (Italy) New 2016.
* Inoex Ultrasonic Measuring System(Germany) Also Software and wiring upgrade 2016.

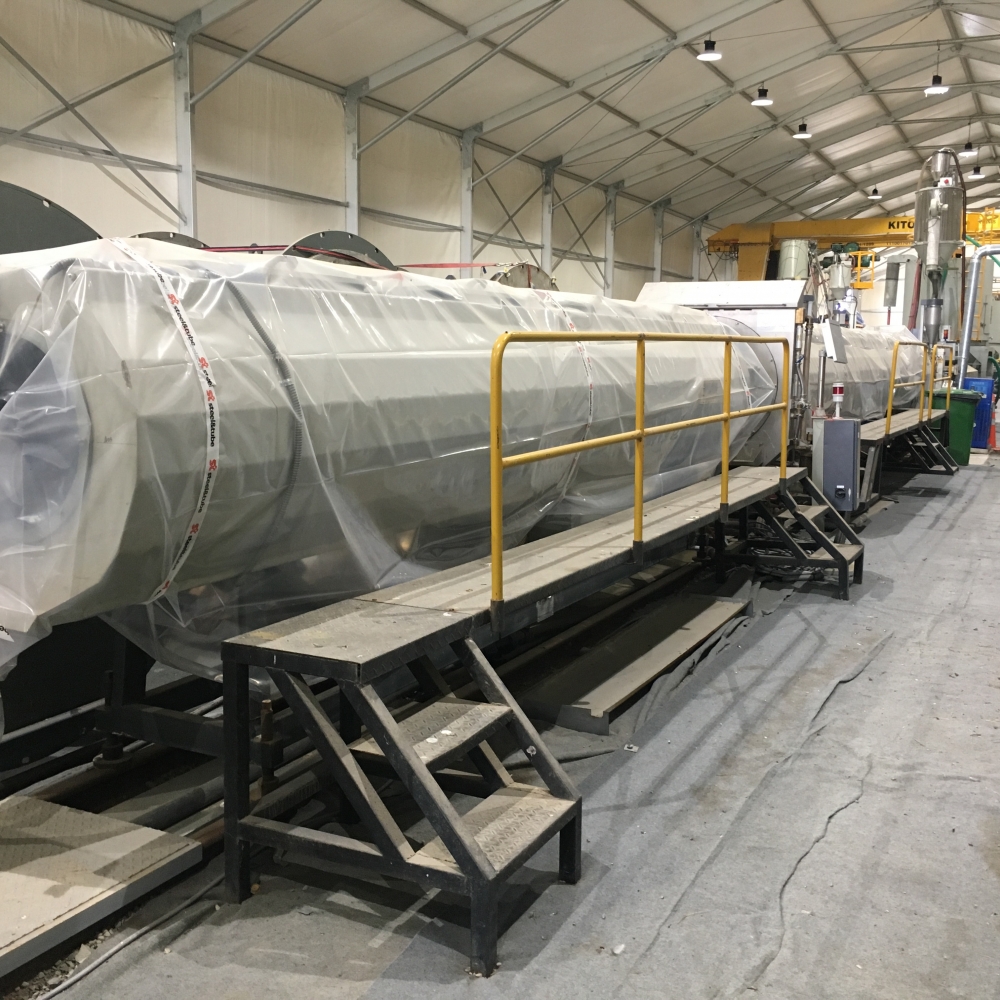

* Cooling and Vacuum tanks: Wiring upgrade throughout / New vacuum and water pumps.
NOTE;All non-compliant electrical components replaced,spare extruder gearbox (150mm) refurbished.Spare extruder gearbox-90mm refurbished, spare solid relays new and uninstalled,spare new motor 65mm extruder (compatible with both lines),spare new motor 90mm extruder, spare water and vacuum pumps, spare drive unit, Thorough maintenance programme.Project based business so low hours of running on all equipment.
#EXTRACTION/ DECOMMISSIONING / LOADING COSTS:
Extraction Of Complete Line, including the below factors/equipment, and load to truck or flatrack base.Included in estimate labour, required hoists, travel and relocation of equipment, crannage(franna 1 day)engineer for duration -($34,000.00 + GST)
Leaving Site-6-7 Flatracks Required,No cotainers required-($1850.00 + gst) to get all empties to site. ($625+gst) per flat rack or container site to Lyttelton(includes VBS booking at Port. Based on using comblift on site.
If trucked away 4-5 trucklaods will be required. ($1000.00 + gst) per load to Christchurch/receiver to unload. ($5780.00 + gst) per load to Auckland/receiver to unload.Allows for reasonable unloading time.
* *EXTRACTION DATES-(Monday-11th March) to (Friday-29th March)
* ELECTRICAL DECOMMISSIONING COST FOR THIS LOT-Disconnect from supply;($350.00 + GST) Additionally disconnect each item ready for uplift-($900.00 + gst)
