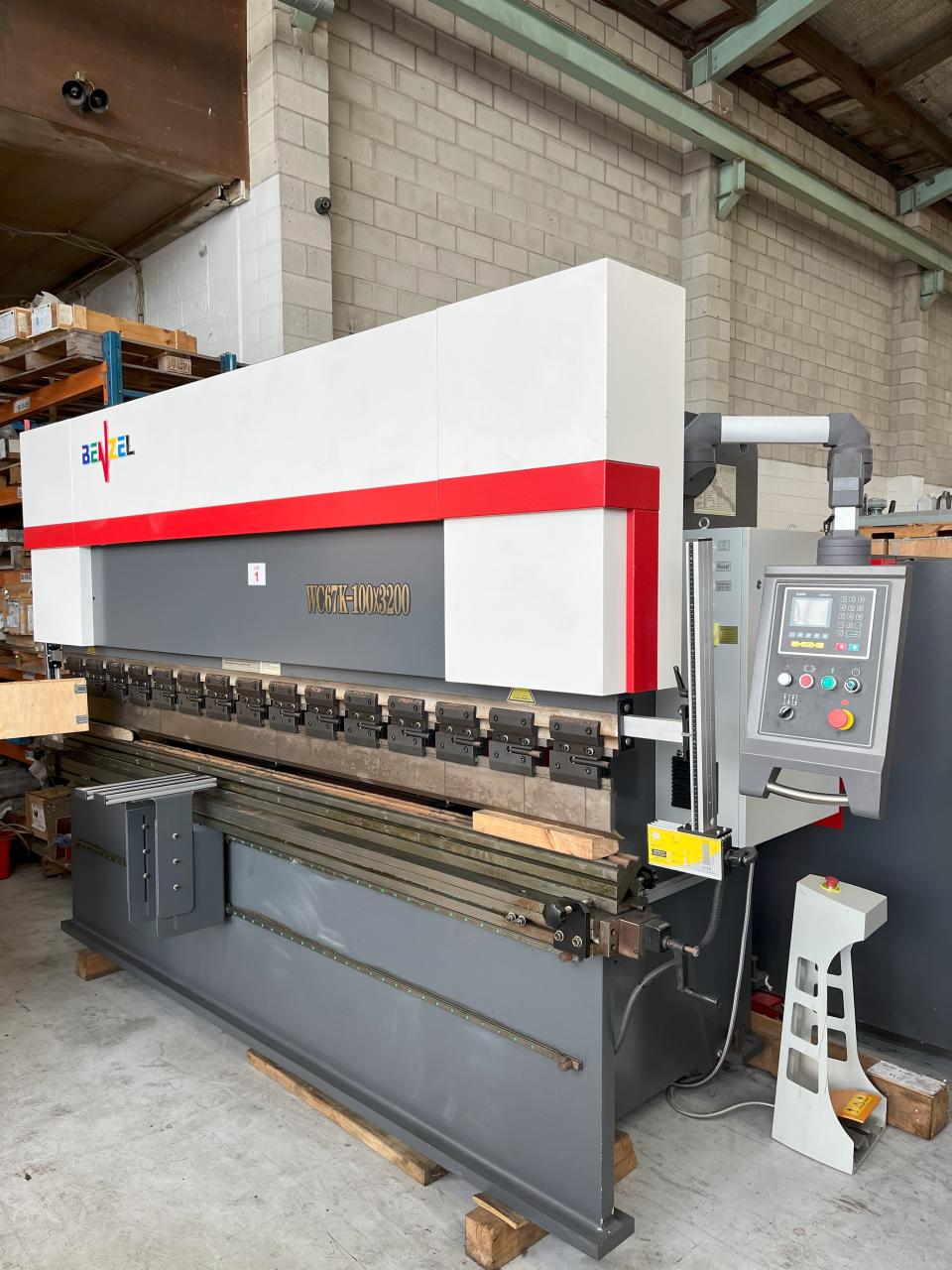

SPECIFICATIONS - Pressing Force 100 Ton
Bending Length 3200 mm
Stroke 100 mm
Max Daylight 360 mm
Distance Between Columns 2650 mm
Backgauge 550 mm
Axis Configuration X,Y
Throat Depth 250 mm
Approach Speed 50 mm/sec
Pressing Speed 7.5 mm/sec
Return Speed 45 mm/sec
Motor Power 6.5 (kW)
Controller Type Estun 200P
Light Guard Type AKAS
Weight Nett / Gross 5950 kg
Volume 13,300 cm
FEATURES - Hydraulic / mechanical ram with synchronised positive stop design. The ram stroke is controlled by precision mechanical nut depth stops, built into each cylinder.

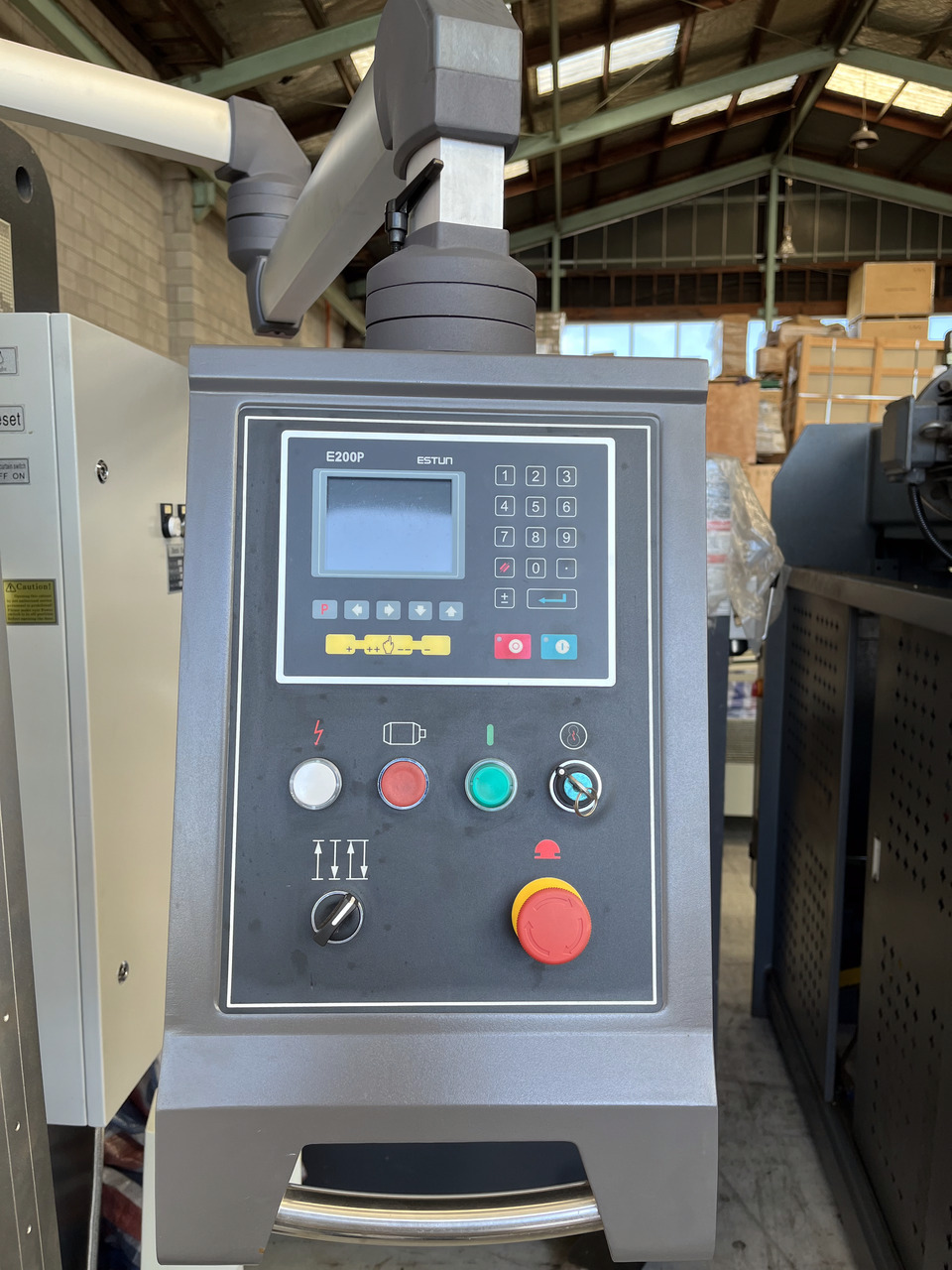

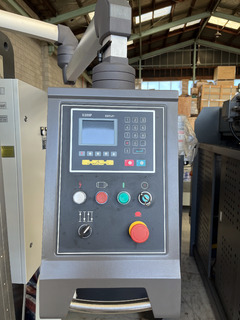

Electronically controlled by Estun E200P programmable digital controller assuring accurate repeatability.
Hardened ballscrew on back gauge with manual crowning arrangement.
Moveable front supports on guide rails for easy adjustments of sheet widths.
Hydraulic MPa pressure gauge mounted on right side of support frame with quick adjusting pressure control knob allowing operator to accurately set the pressure required for different material thickness, incorporated with hydraulic overload protection
Enclosed rear gate with micro safety switches complete with sliding rear door for easy access

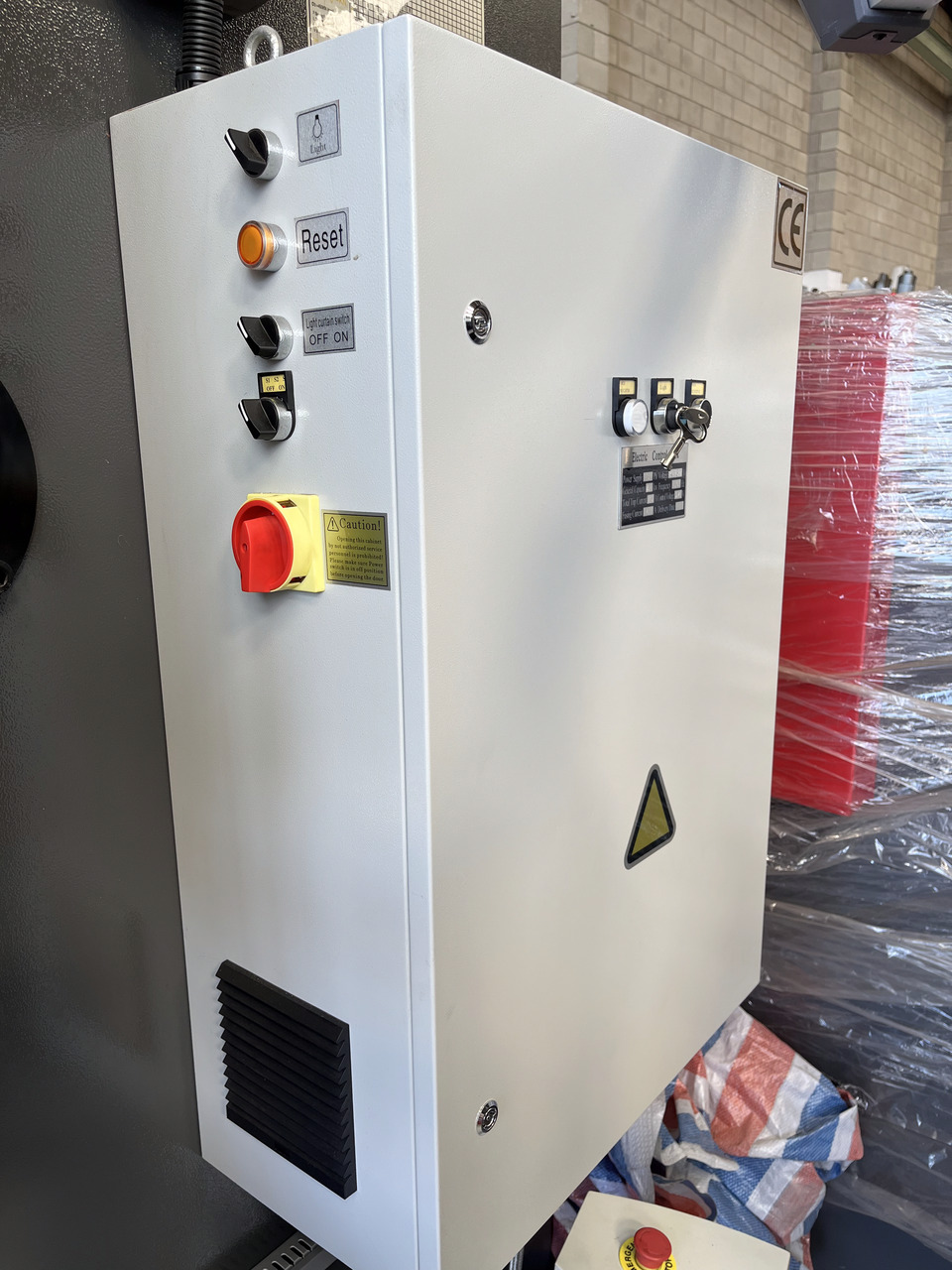

Conveniently mounted control box on pendant for quick swivel and adjustments.
Welded steel fabricated syncronised torsion bar horizontally supporting main bending beam to provide consistent
parallelism that also can be adjusted for taper correction.
