SPECIFICATIONS - Swing Over Bed 610 mm Dia
Swing Over X- slide 370 mm Dia
Distance Between Centres 1270 mm
Speeds Automatic 3 Grades Stepless : 22-220; 71-710; 215-2200
Spindle Bore 70 mm Dia
Spindle Nose A8
Z Travel 1270 mm Max Turning Length
X Travel 305 mm
Tailstock Taper MT5
Tool Post Turret Style: Horizontal 6 Position
Voltage 415 V
Motor Power 7.5 kW
Weight Nett/Gross 2700/3500 kg
Volumn Packed 19 m3
Overall Dimensions Packing 4050 x 2178 x 2149 mm
FEATURES - High precision spindle bearings
Hardened bedways
6 Station turret style toolholder with 3 boring bar holders
250mm 3 jaw chuck
Automatic lubrication system with auto-stop when dry
Fixed & Travelling steadies with adjustable roller fingers
Worklight above work area

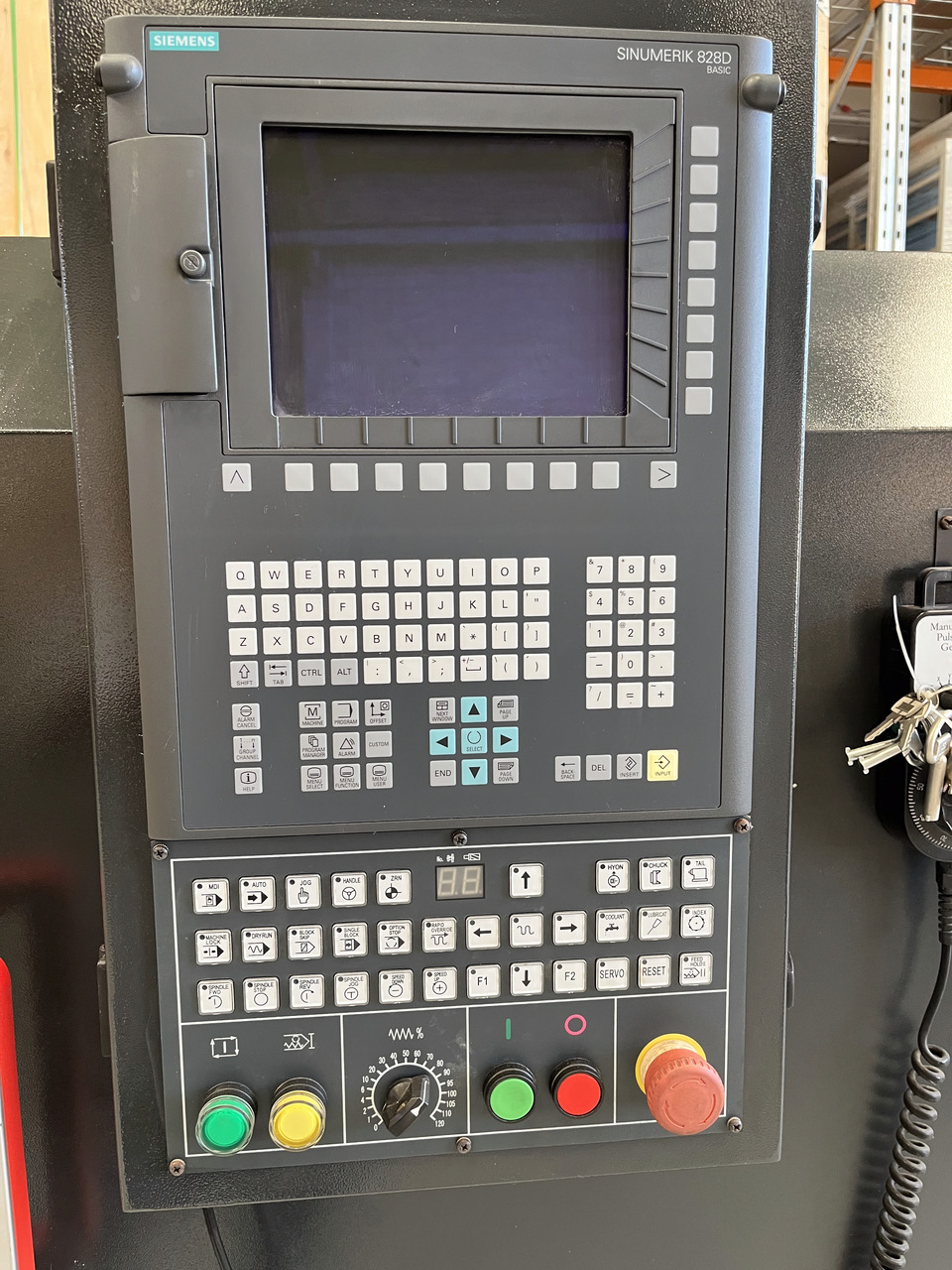

Siemens 828D Basic controller
Manual tailstock
