SPECIFICATIONS - Swing Over Bed 400mm with 190mm3 jaw chuck
Bed Width 320mm
Swing Over X -slide 300 mm
Distance Between Centres 835 mm
Speed Range 50 - 3500 rpm
Spindle Bore 54 mm
Spindle Nose A2-5
Bar Capacity 52 mm
Z Travel 815 mm
X Travel 300 mm
Tailstock Taper MT4
Turret Stations 6
Tool Size 20 x 20mm
Controller Siemens 808D
Rapid Feed Rate 8 m/min
Voltage 415 v
Motor Power 5.5 kW
Weight Nett / Gross 1550/1600 kg
Volume 2.1666 m3
Dimensions L x H x W 2120 x 1400 x 730 mm
FEATURES - Sturdy, well constructed machine
High precision spindle bearings
Hardened bedways

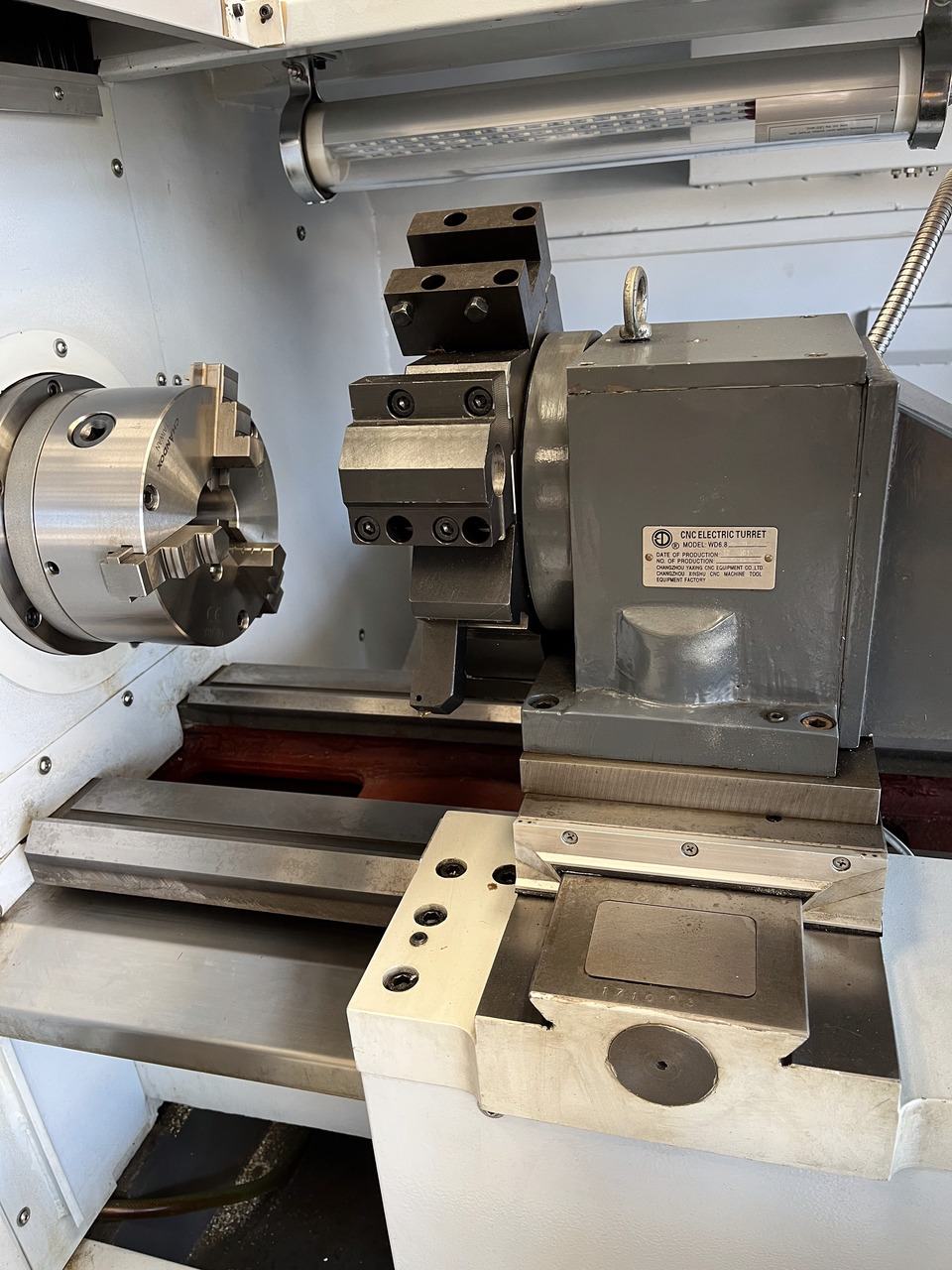

6 Station turret style toolholder
Fixed &travelling steadies with adjustable roller fingers
Worklight above working area

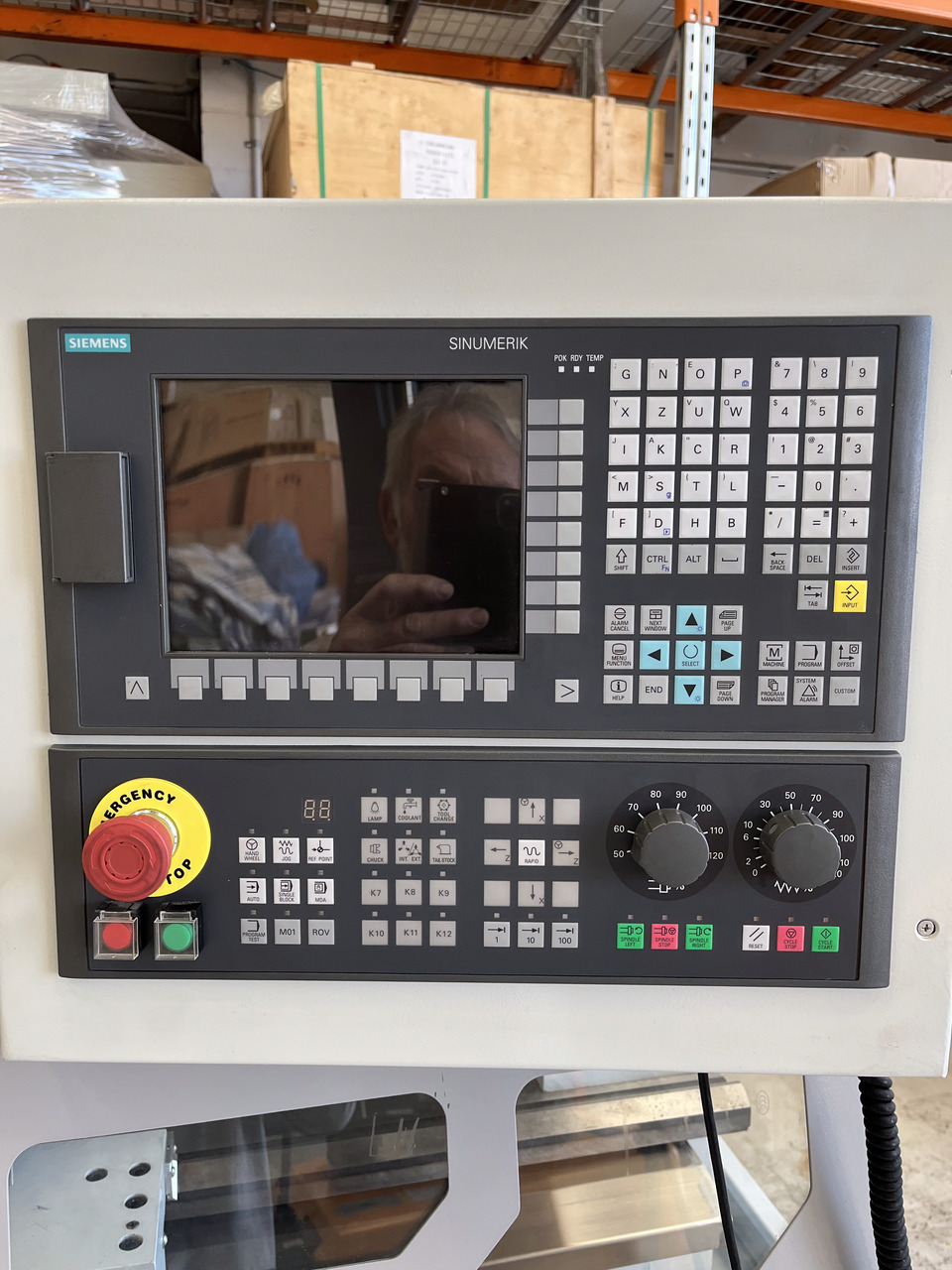

Siemens 808D Basic controller
Locking systems on all opening doors for safety
Rapid Feed
