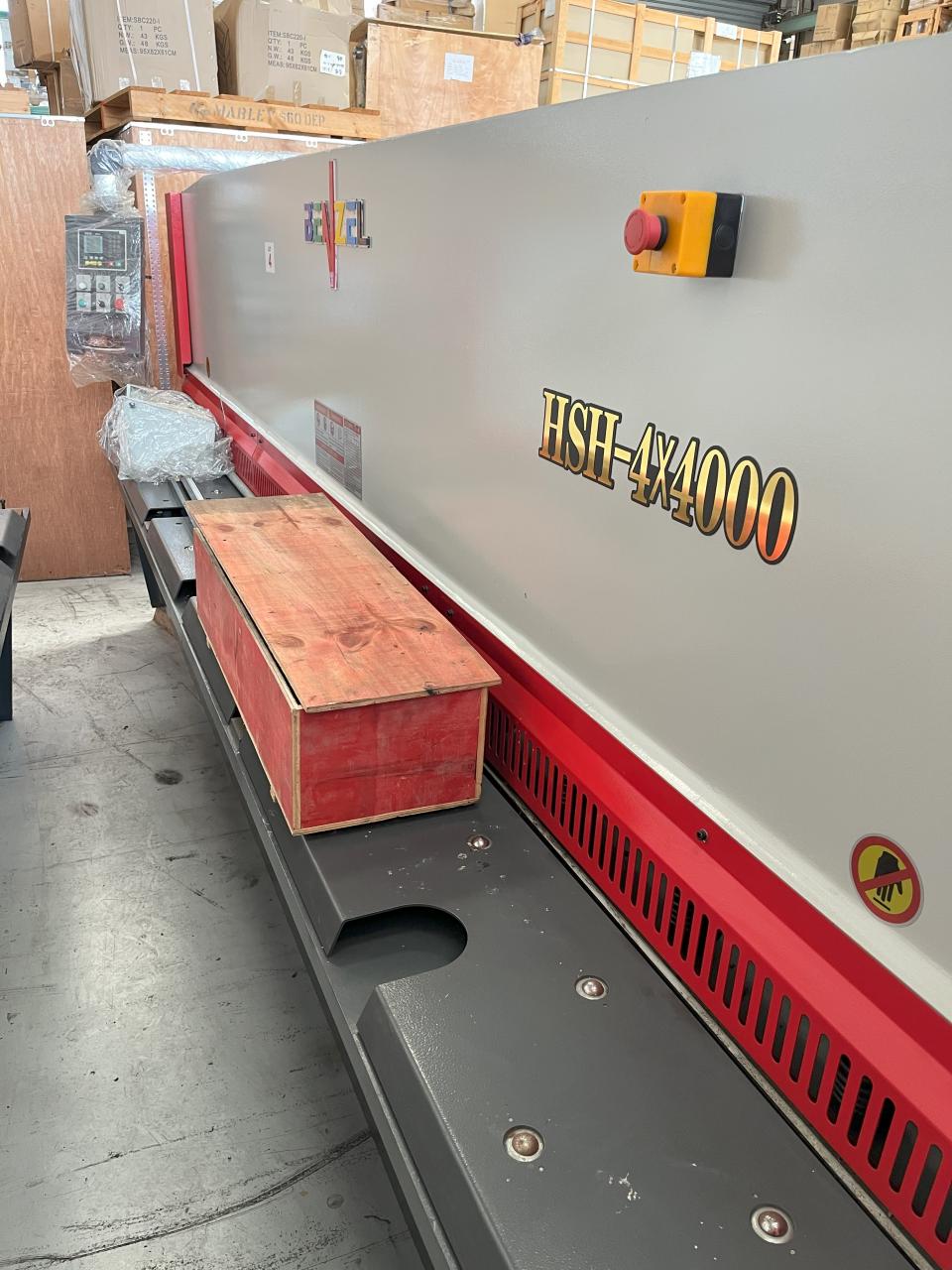

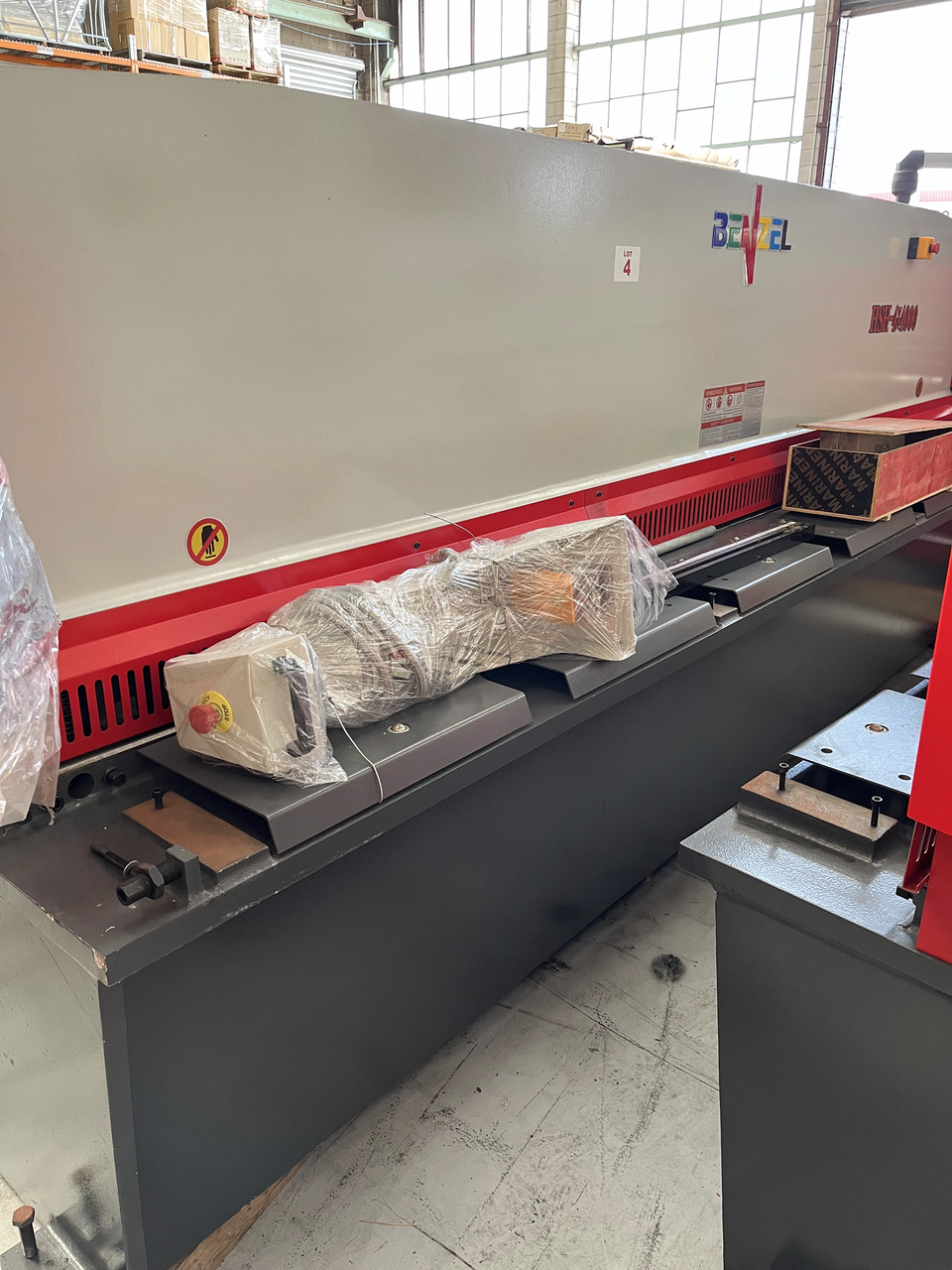

Hydraulic Guillotine, Benzel, Model HSH-4 X 4000
SPECIFICATIONS - Shearing Capacity 4 mm Mild Steel, 2 mm Stainless
Blade Length 4000 mm
Rake Angle Variable No
Min Rake Angle 1.5 degree
Hold Downs Clamps 10
Holding Force 55 psi
Controller ( Estun) E21S plus Invertor
Backgauge (mm) 20 mm-900mm
Motor Power 7.5 Kw, 380 v, 3 Phase
Length 4130 mm
Width 2030 mm
Height 1600 mm
Weight Nett/Gross 5200 kg
Volume 19,200 cm

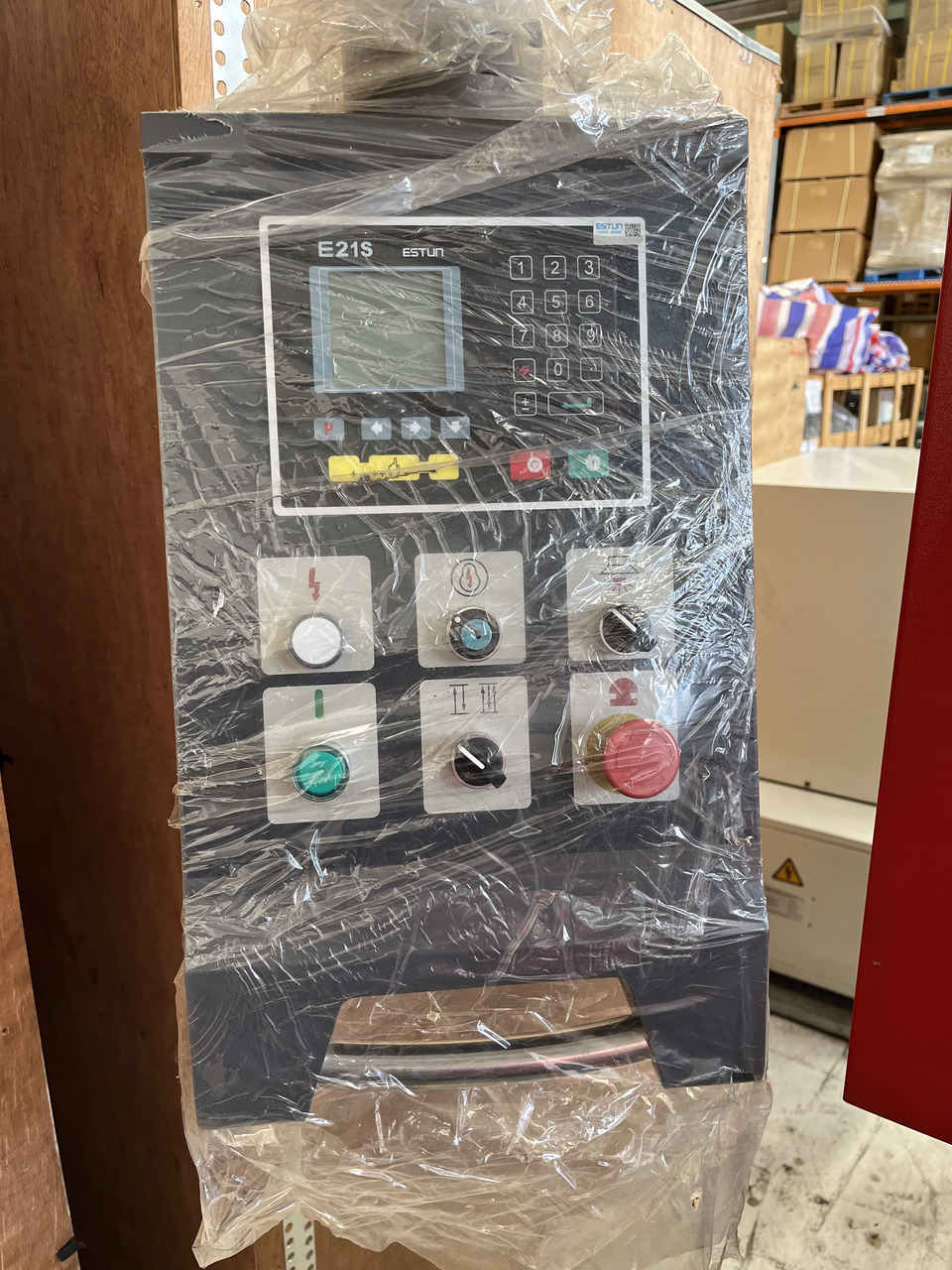

FEATURES - Estun E21S controller, mounted on swivel pendant arm plus Invertor
Transfer balls inserted into work table allowing material to be easily moved.
Front support arms with rollers, flip over stops and mitre gauge.
Rapid blade adjustment.
Hydraulic hold downs with nylon pads.
Side and front protection guards, photo-electric sensors at the back.
Hardened ballscrew type swing away backgauge.

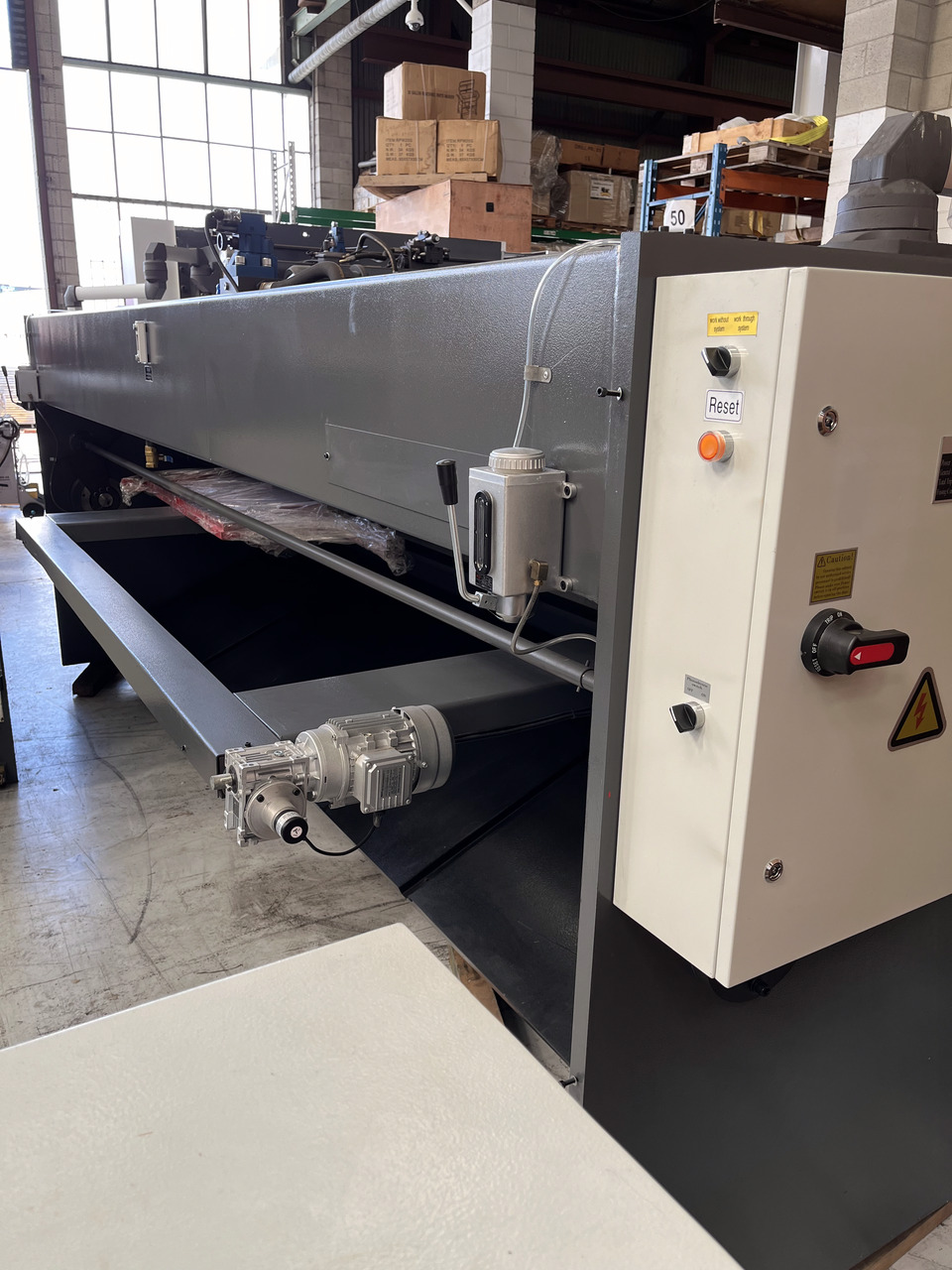

One shot lubrication pump and reservoir for slideway protection.
Blades manufactured from 9CrSi suitable for cutting stainless steel.
Roving foot pedal control.
Laser light shadow alignment device
