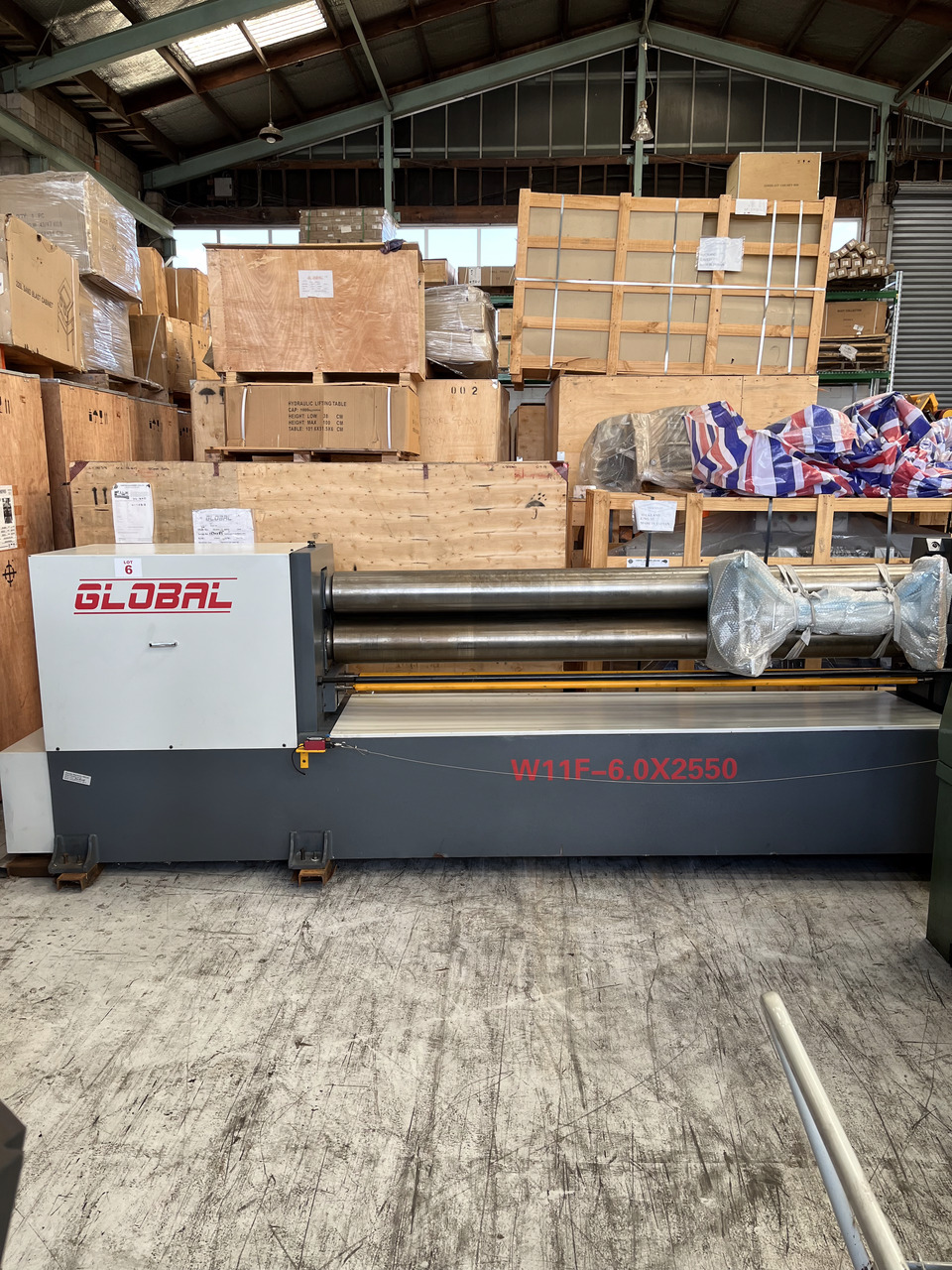

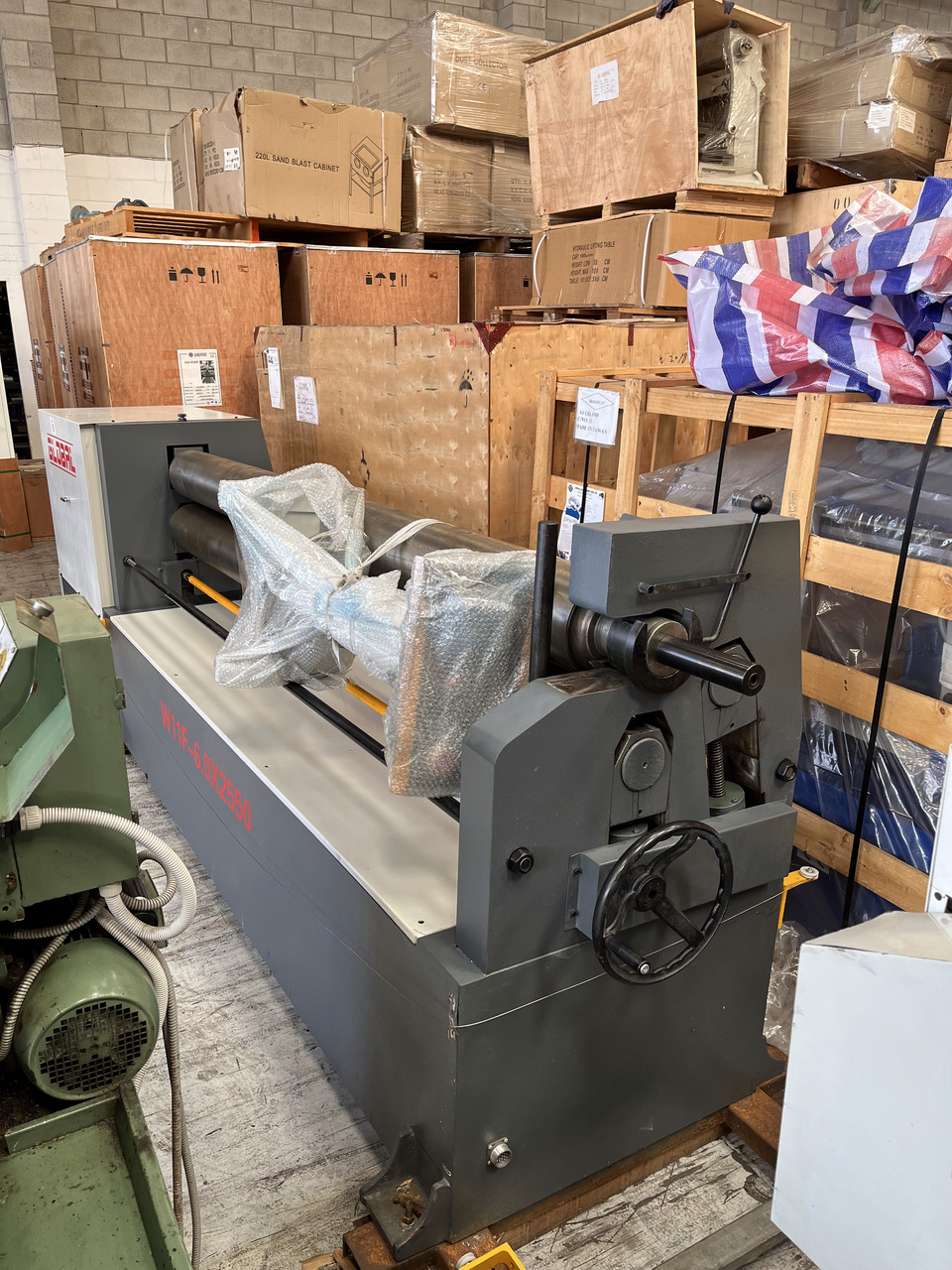

Slip Rolls, Global, 2550 mm x 6.0 mm, Power 5.5 kw, 3 Phase.
SPECIFICATIONS - Description Slip Rolls Initial Pinch
Capacity Mild Steel 6 mm
Top Roll Diameter 190 mm
Wire Grooves Yes
Min Forming Radius 400 mm
Material Length 2550 mm
Roll Speed 16 rpm
Motor 5.5 kw
Weight Nett/Gross 2850 kg
Volume 6.6367 cm
Packing 3980 x 1150 x 1450
FEATURES - Initial pinch rolls with pre-bending.
Motorised up and down rear curving roll enables quick and easy pre bending.
Digital readout display on rear curving roll position.
Mobile foot pedal control with digital readout display.
Two rolls are powered by reduction gearbox drive system.
Swing out top roller enables cone or cylinder to be removed.
Safety wire interlock system with emergency shut-off.
Rolls include wiring grooves.
Includes a conical bending guide roller.
