PRESS BRAKE, BENZEL, ( Used from Deceased Estate ) 2 AXIS, MODEL WC67E, 30 TON X 1600mm WITH ESTUN 200P CONTROLLER
SPECIFICATIONS - Pressing Force 30Ton
Bending length 1600 mm
Stroke 100 mm
Max Day Light 360 mm
Distance Between Columns
Throat Depth 250 mm
Approach Speed 50 mm/sec
Pressing Speed 7.5 mm/sec
Return Speed 45 mm/sec
Controller Type Estun 200P
Light Guard Type Lintech
Motor Power 5.5 kw
Weight Nett/Gross 2900/3000 kg
Volume 3.0240cm
Packing Size 2400 x 600 x2100 mm L x W x H
FEATURES - Hydraulic / Mechanical ram syncronised positive stop design, ram stroke controlled by precision mechanical nut depth
stops built into each cylinder.
Electronically controlled by Estun E200 programmable digital controller assuring accurate repeatability.
Hardened ball screw on back gauge with manual crowning arrangement.
Front support can be easily adjusted and moved depending on the sheet width.
Hydraulic MPa pressure gauge mounted on right side of support frame with quick adjusting pressure control knob
allowing operator to accurately set the pressure required for different material thickness incorporated with hydraulic
overload protection.
Enclosed rear gate with micro safety switches complete with sliding rear door for easy access.

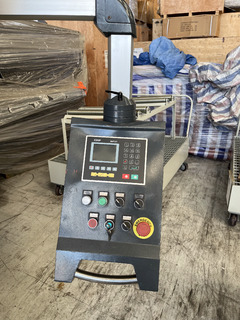

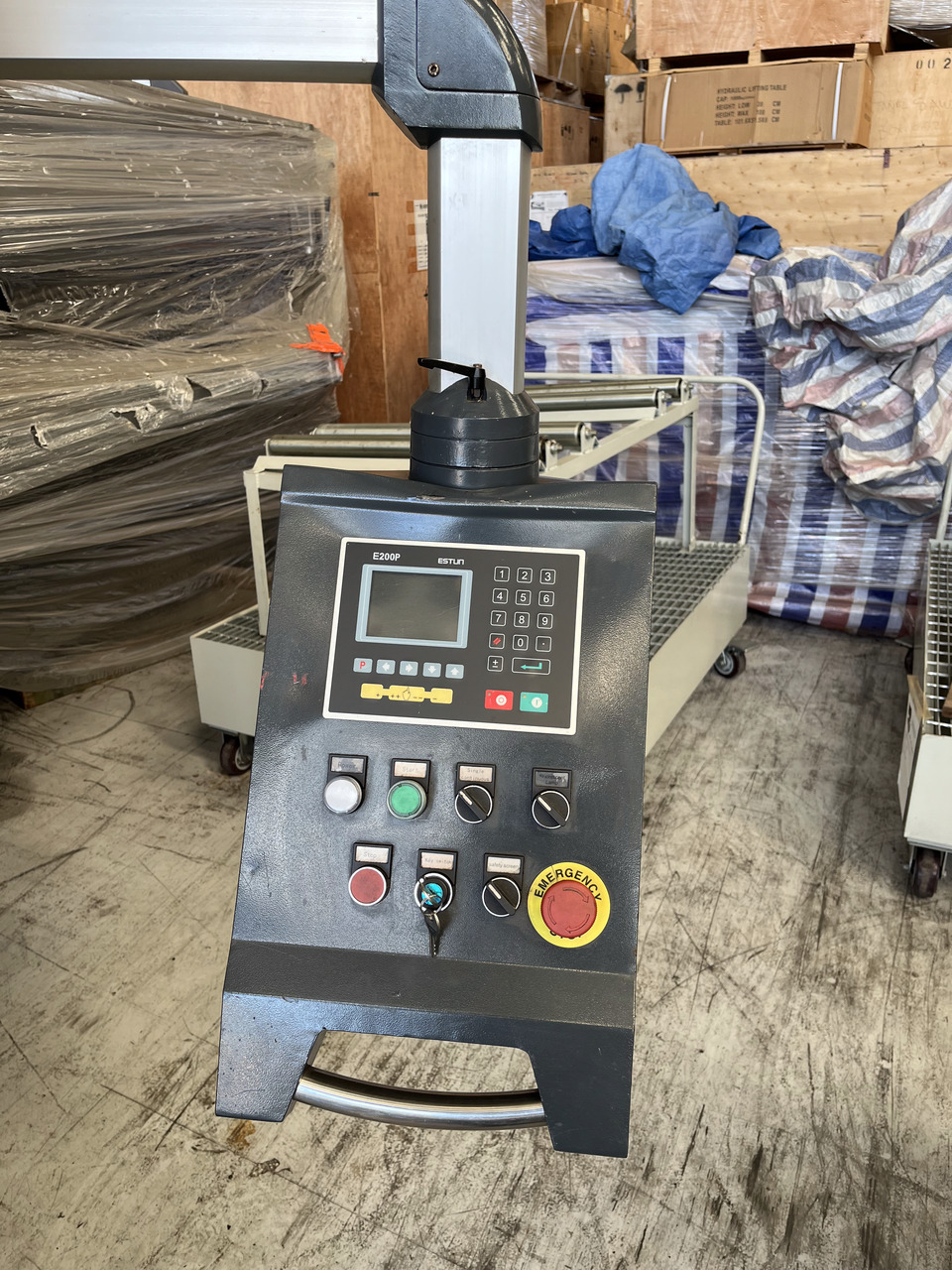

Conveniently mounted control box on pendant for quick swivel and adjustments.
Welded steel fabricated synchronised torsion bar horizontally supporting main bending beam to provide consistent
parallelism that also can be adjusted for taper correction.
