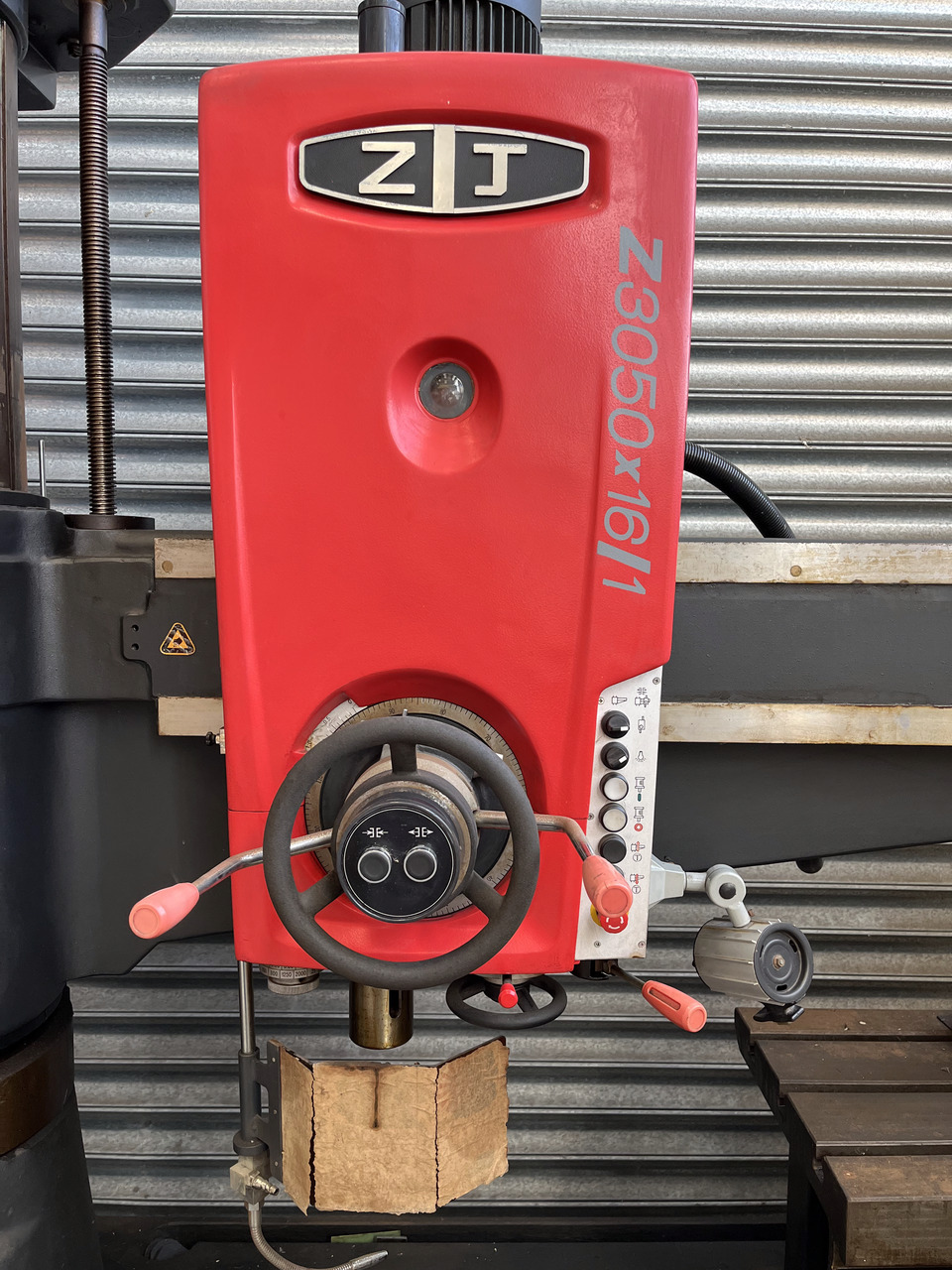

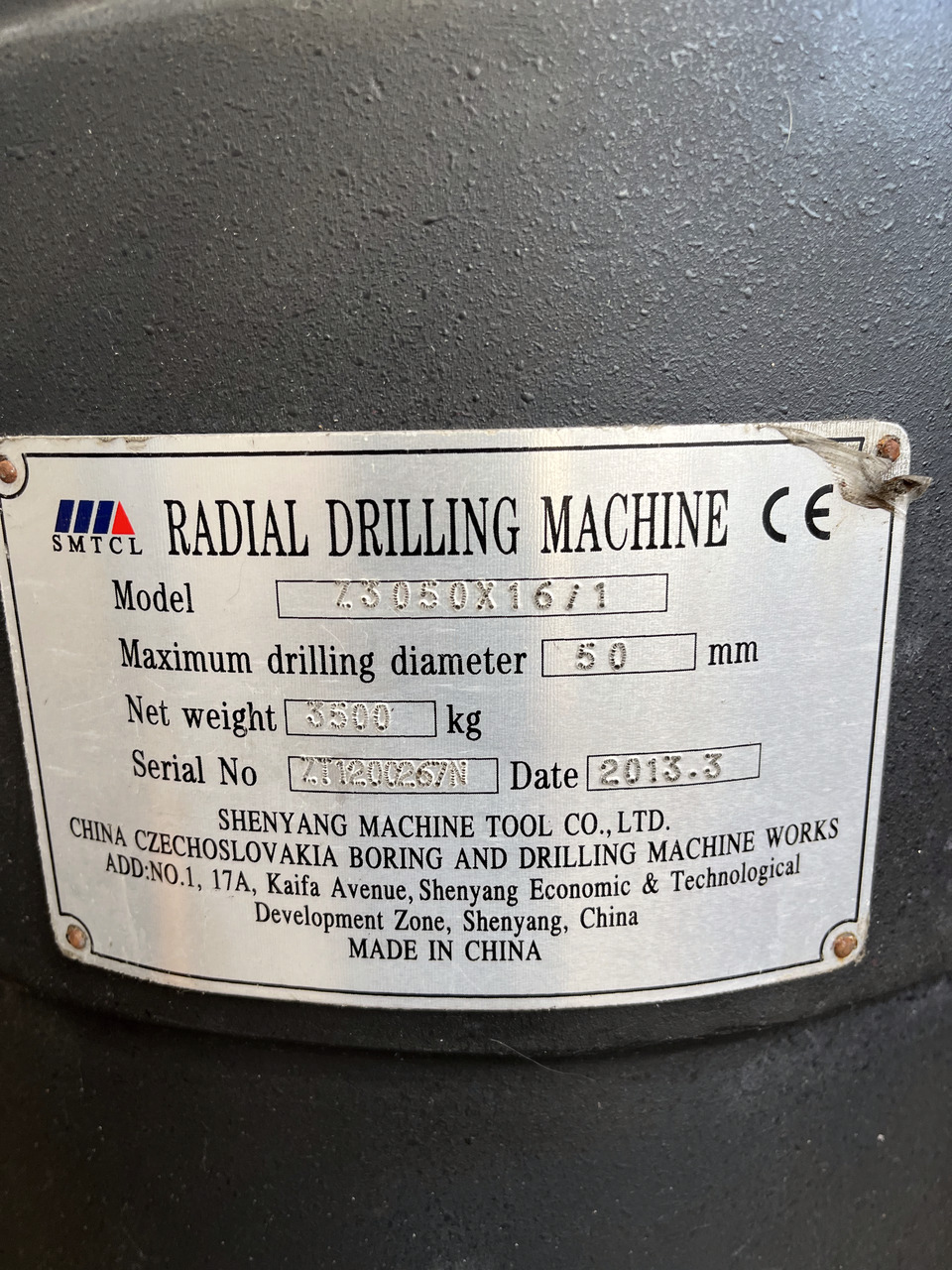

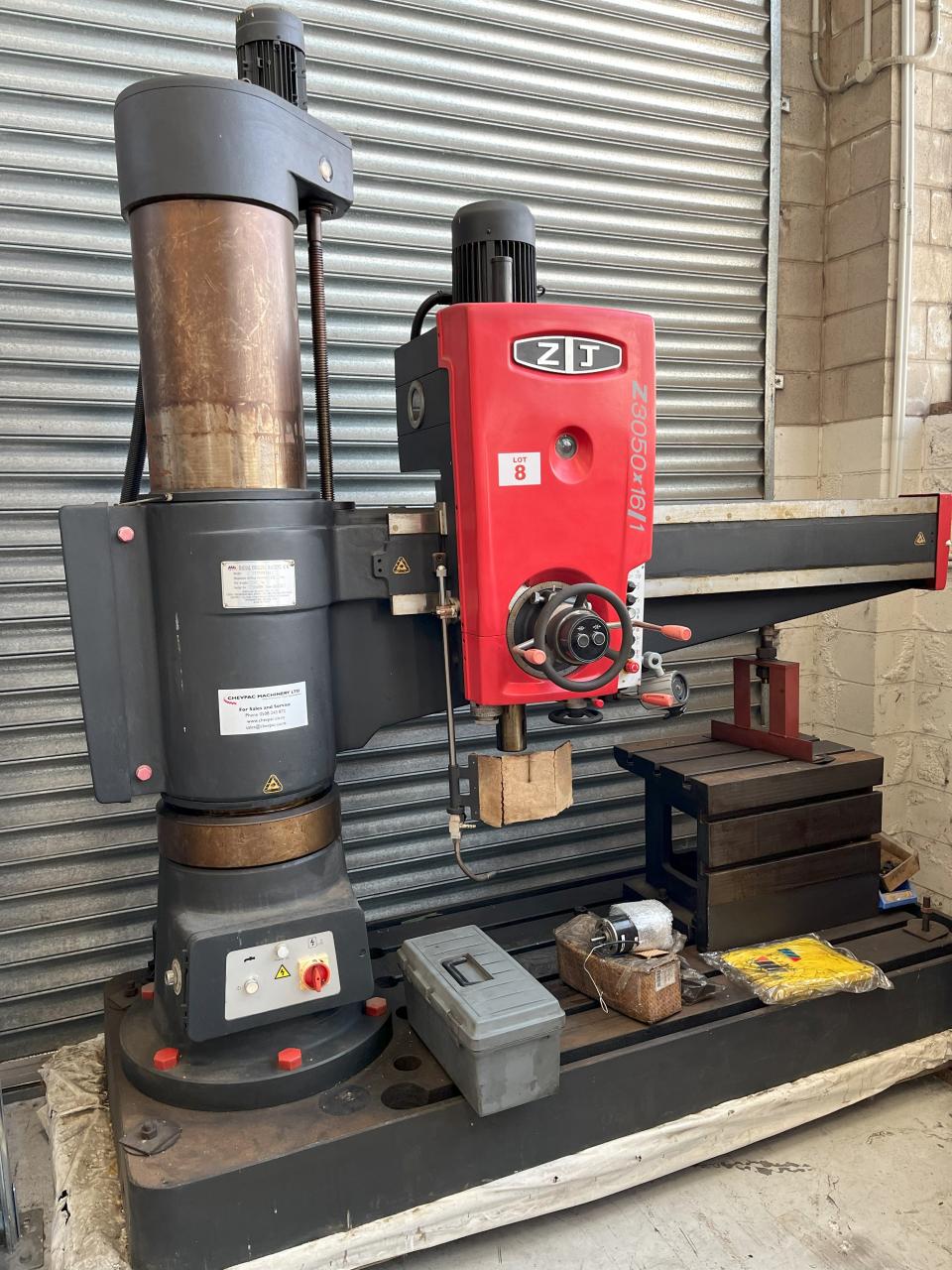

Radial Arm Drill, Model Z3050 x 16/1
SPECIFICATIONS - Drilling Capacity 50 mm
Spindle Taper MT5
Spindle Travel 315 mm
No. of Speeds 16
Speed Range 25 - 2000 rpm
Column Diameter 350 mm
Max Nose to Column 1600 mm
Max Base to Spindle 1220 mm
Weight 3500 kg
Voltage 415 v
Motor Power 4 kw
FEATURES - Excellent quality Radial Drill, widely used for drilling, enlarging and reaming holes facing spots & tapping.
All gears, spline shafts and guidways are hardened and ground for extra strength.
Oil bath lubricated gear box.
Hydraulically operated feed & spindle drives.
Fitted with autofeed and precision depth stops for accuracy.
Sensitive & reliable speed & feed change.
Motorised drilling arm for powered rise and fall.

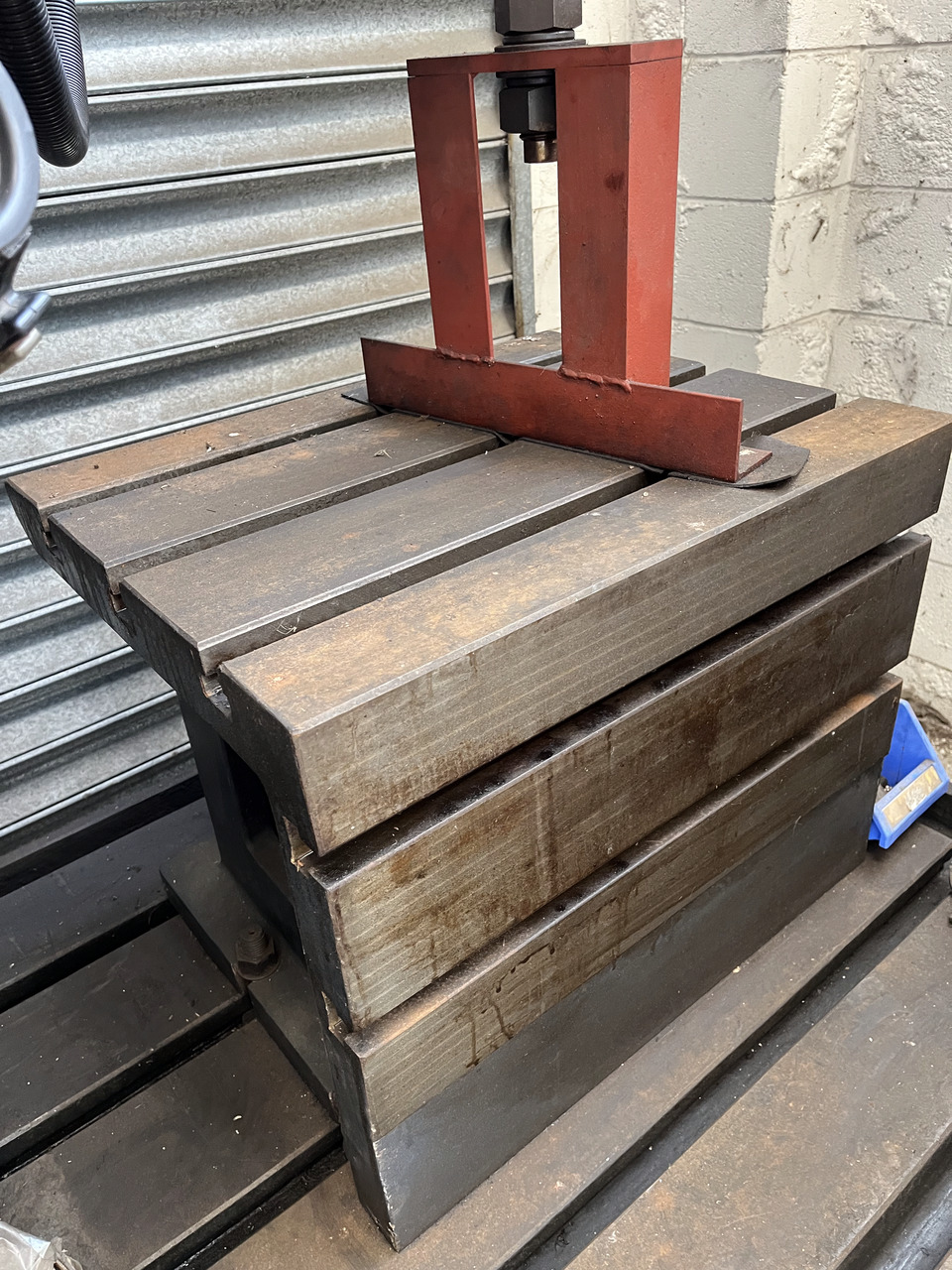

Complete with coolant pump, worklight & heavy duty slotted worktable.
