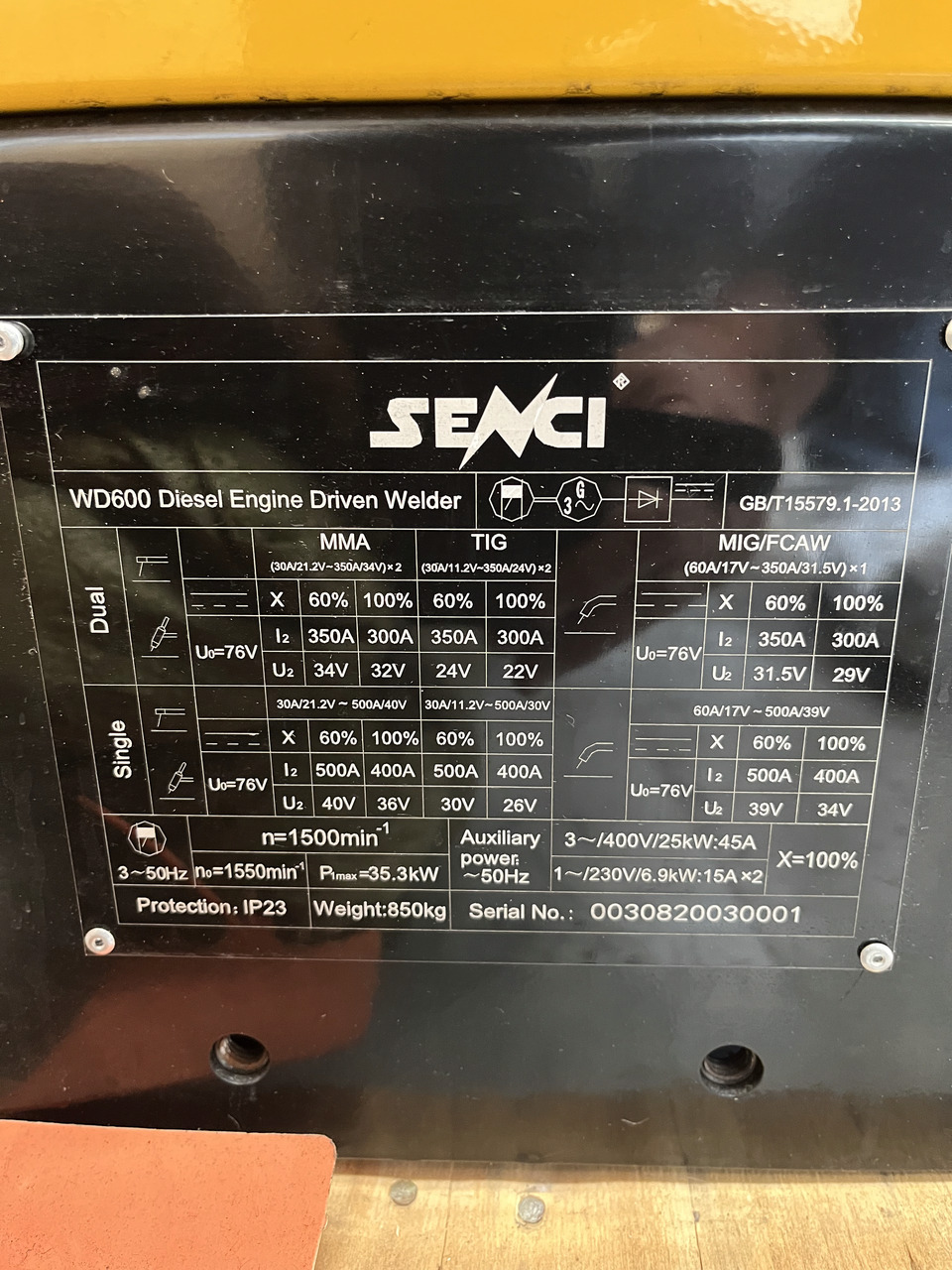

SPECIFICATIONS - Model WD600
Rated kW Prime 36 kw - Standby 39.6 kw
Current Range 30 - 350 Amp x 2
Alternator Wattek
Engine Type Kubota V3300-T Diesel
Max RPM 1,500
Frequency 50Hz
Duty Cycle Stick 100% Tig 60%
No Load Voltage- Stick 76 V
No Load Voltage- Mig 76 V
Phase Tri Phase -AC 400v / 25kw
Warning Gauges Temperature, Oil Pressure, Charging
Welding Outlets EW35-50 Female x 2

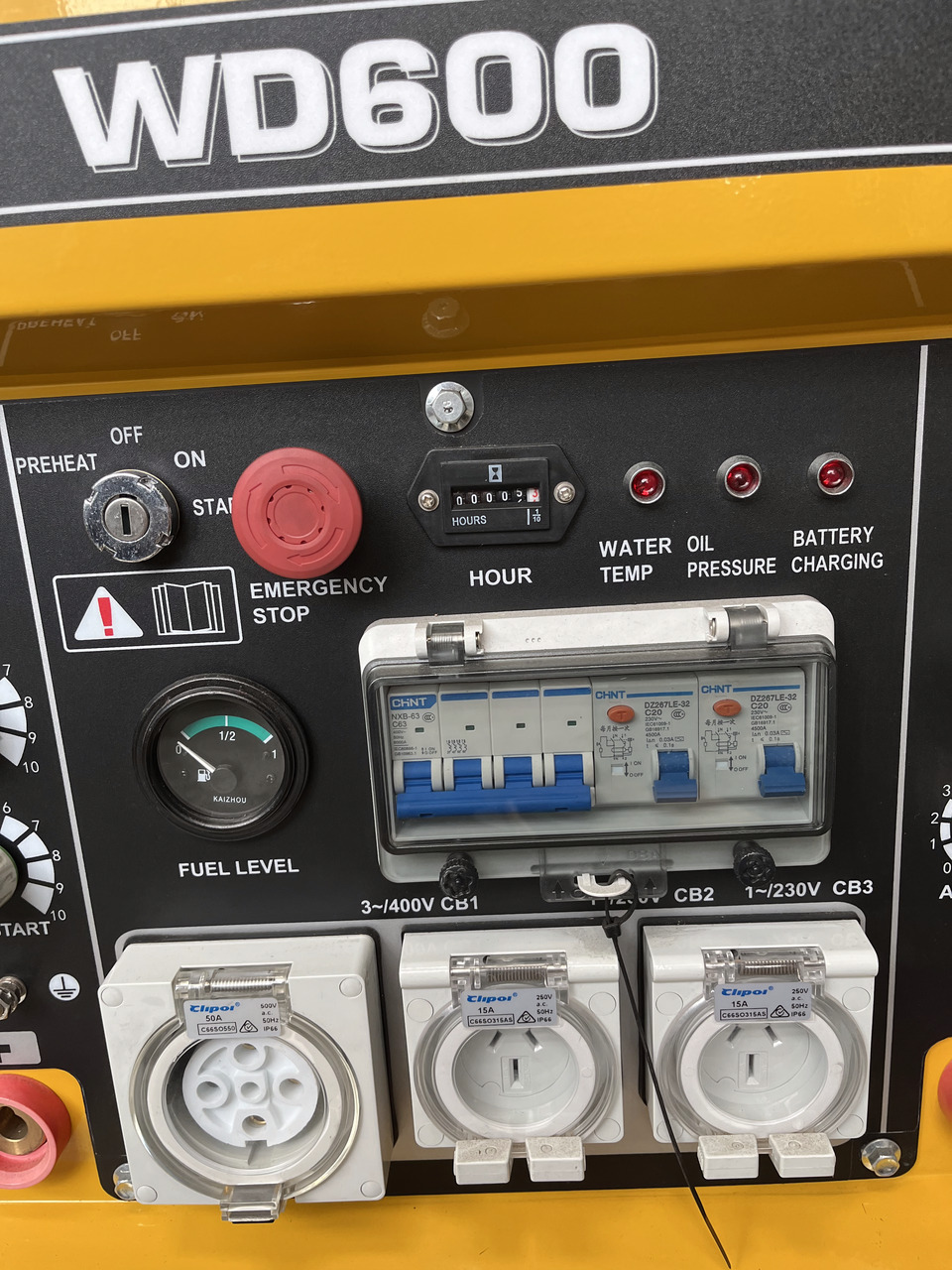

Power Outlets 230v x 2 / 400 x 1
Fuel Tank Capacity 80 Litre ( 7.4 hrs running )
Voltage Regulator AVR Brushless Ecitation
Start Type Electric
Weight Nett/Gross 850/860 kg
Volume 1.3776 m3
Dimensions 1600 x 820 x 1050 mm L x W x H

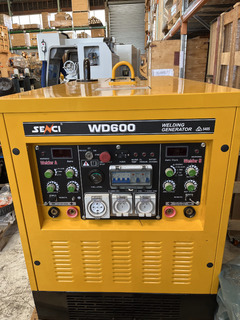

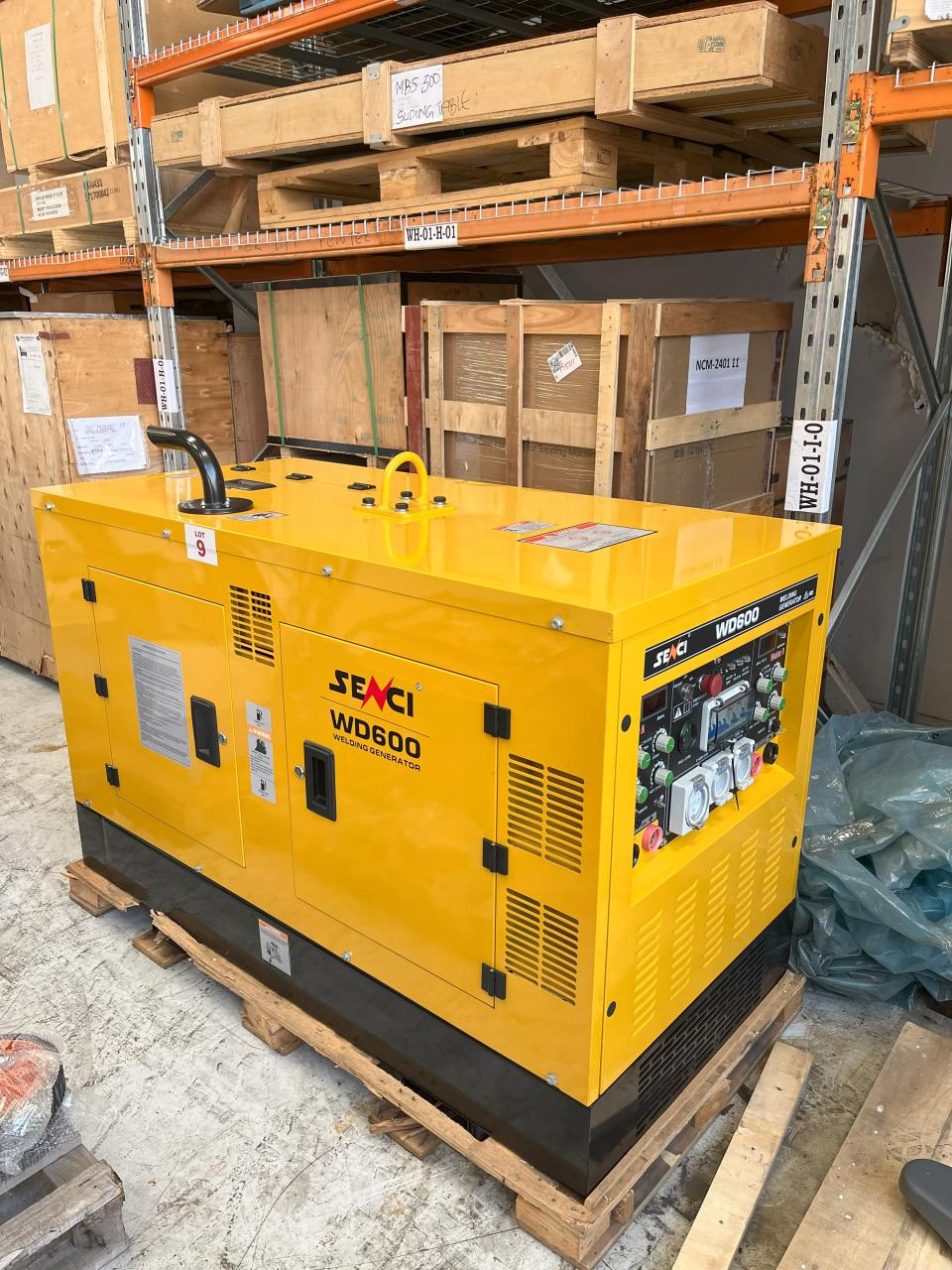

FEATURES - The WD-600 DC power welder generator workstation is fitted with the reliable Kubota diesel engine for maximum
performance and reliability.
Fitted with AVR brushless ecitation voltage regulator for constant voltage delivery.
This Tri-Phase machine is fitted with EW35-50 large size welding pin outlets x 2, Power outlets 230v x 2, Three phase
400v outlet x 1

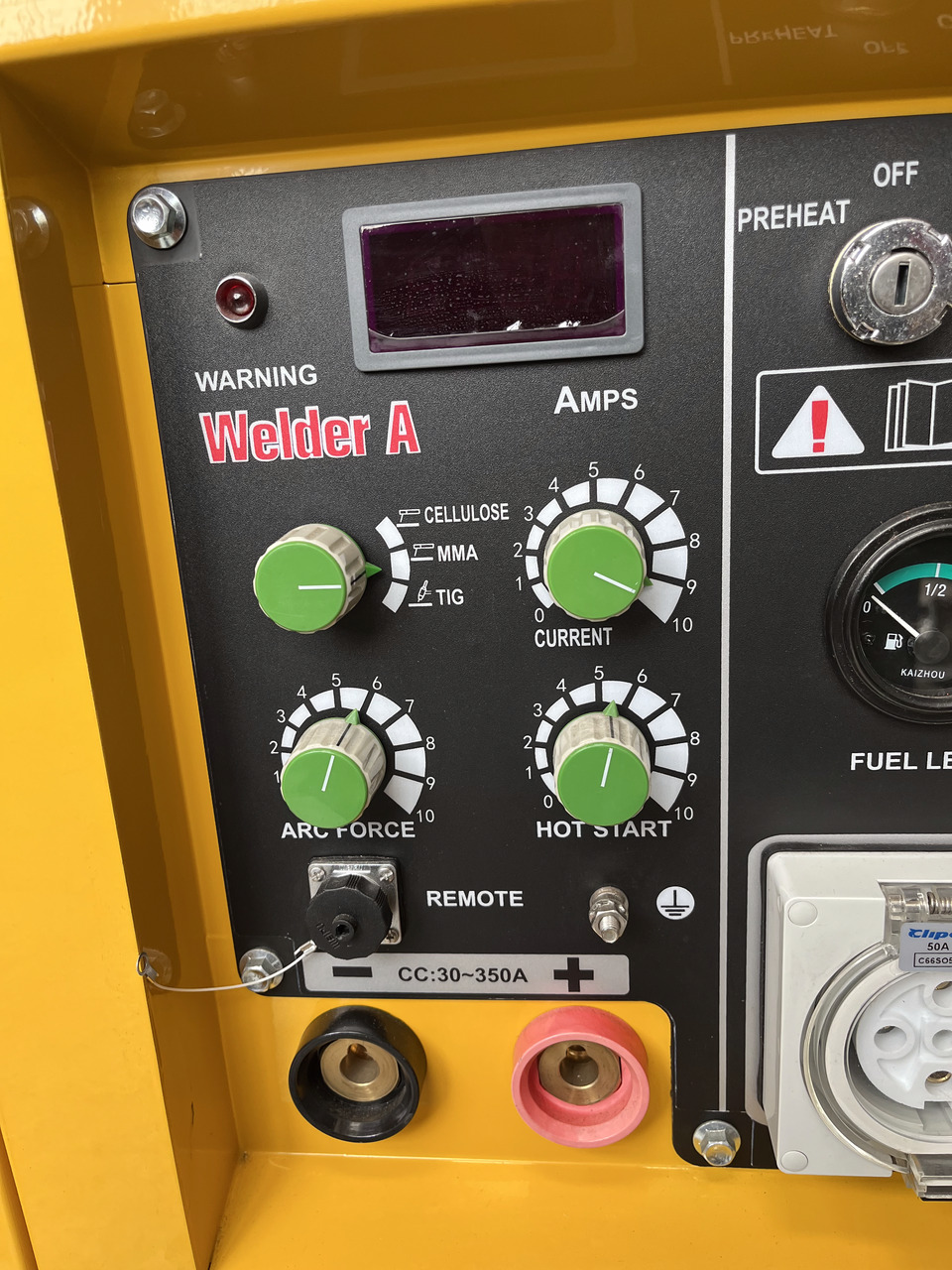

Welding current can be adjusted by remote control which is supplied with this machine.
The flux core semi-automatic can be realised by matching Millar, Lincoln, or Senci wire feeder.
The wire feeding speed and welding voltage can be adjusted on the SC100 wire feeder.
The welding current can be preset and adjustedin MMA gear.

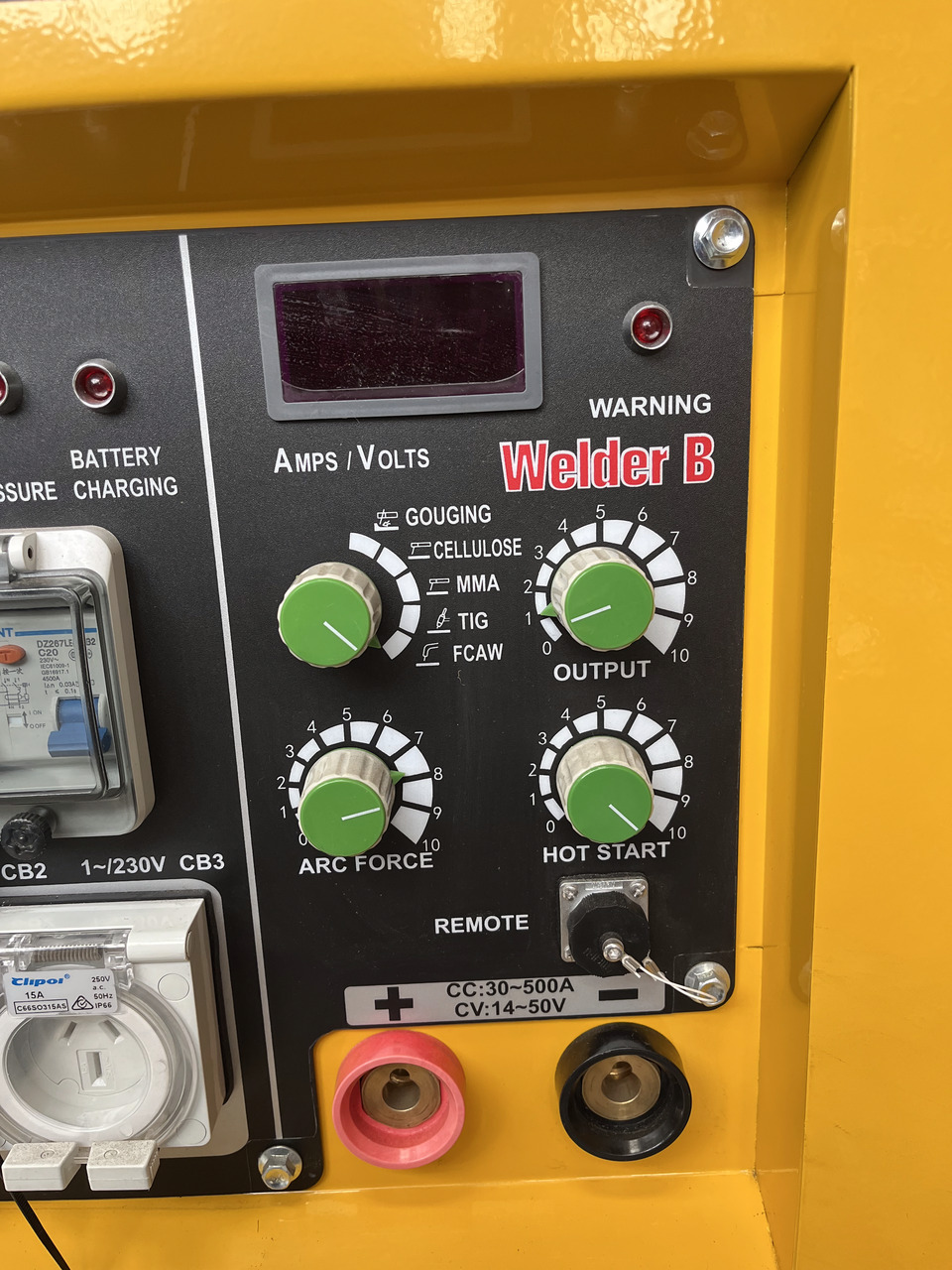

Dual handles can be output independantly or in parallel which can achieve greater current and power output.
