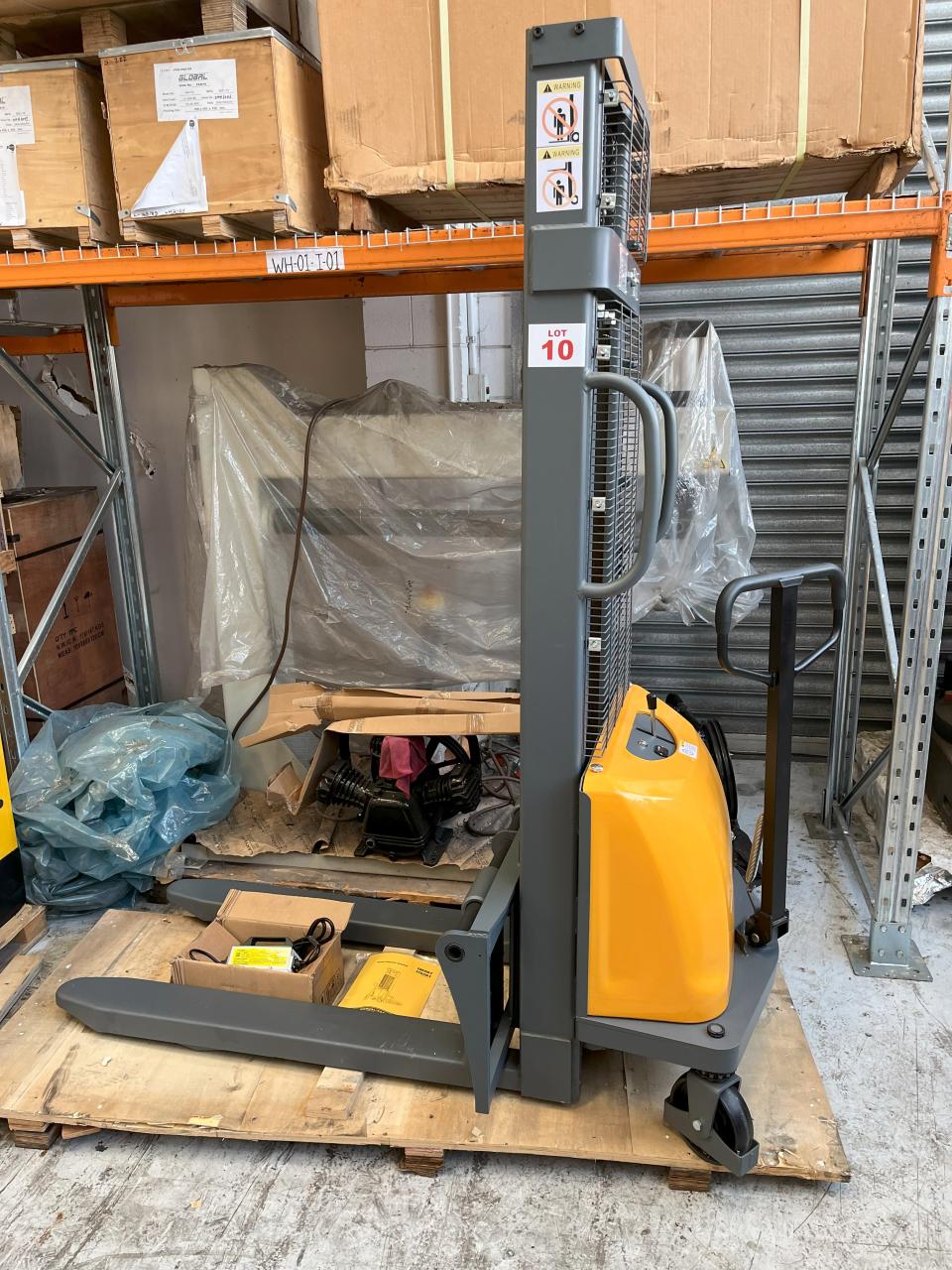

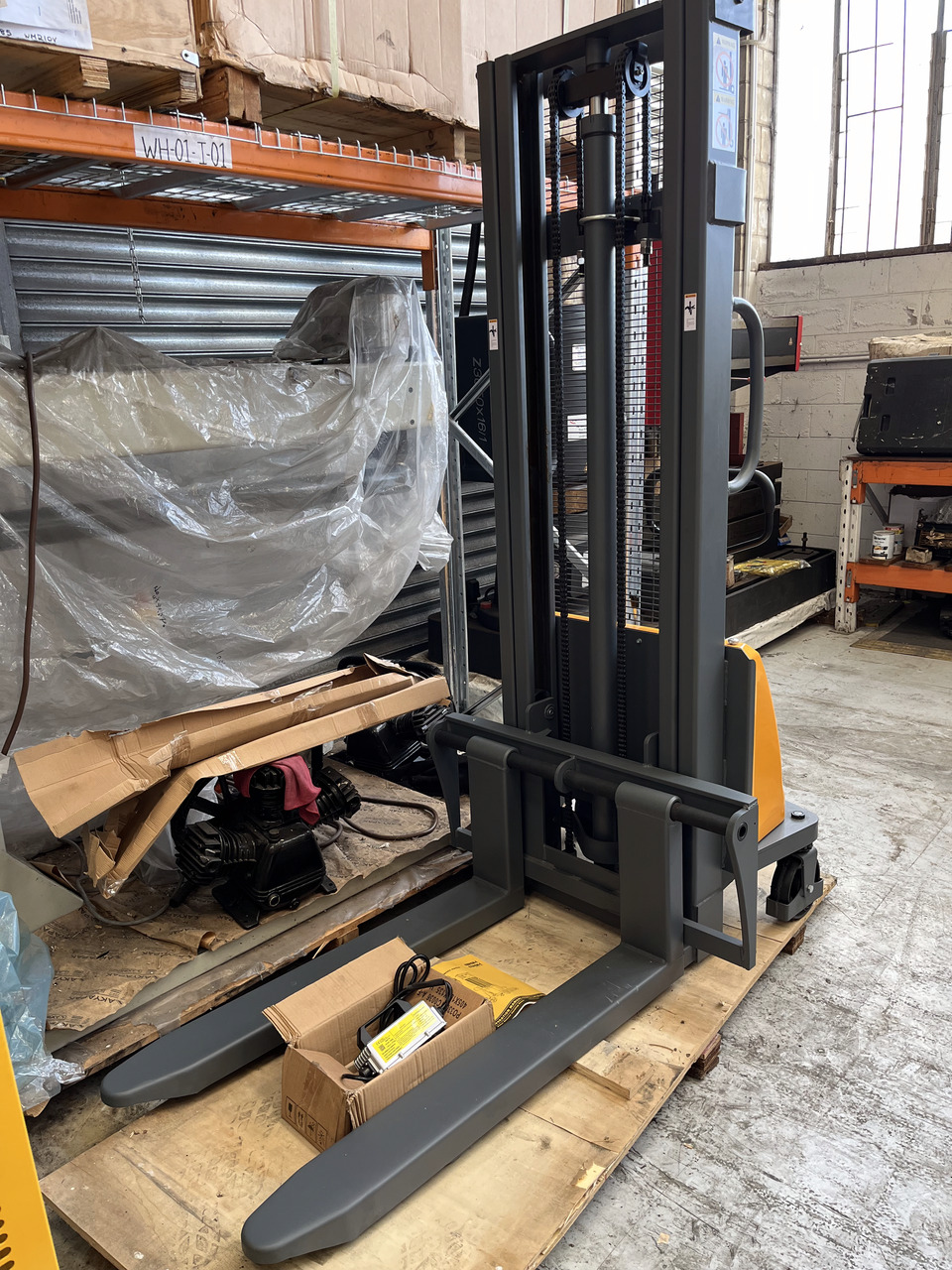

Pallet Stacker, 3 Metre lift height, 1500 kg, Electric 12V
SPECIFICATIONS Model CDD15B-E
Max Height 3,000 mm
Mast Height 2145 mm
Min Height 90.0 mm
Fork Length 1070 mm
Fork Adjustable Range 300-930 mm
Length O/A 1745 mm
Body Width O/A 960 mm
Wheel size Front 180 x 50 mm
Load Centre 400 mm
Service Weight 420 Kg
Loaded Capacity 1500 Kg
Lifting Speed Loaded/ Unloaded 0.05/0.8 m/s
Braking Mechanical
Lifting Motor 1.5 kw
Weight Without Battery 385 Kg
Battery Weight 45 Kg
Charger 12v 15 amp
Battery 12v /120ah (included)
Weight Nett/ Gross 415 kg
Volume 3.6682 cm
Packing Size 2145 x 980 x 1745 mm L x W x H
FEATURES - This powerful electric pallet stacker comes complete with 120 A/h battery and charger.
Complete design with strong steel construction
Smooth control when lifting under load and walk behind.
Hydraulic pump is from Germany.
Drive motor is brushless type.
Braking system by mechanical.
Explosion proof valve is fitted to cylinder in case of failure.
Steering mechanism is driven by chains and requires small steering force.
Fitted with foot brake for added safety.
This electric stacker conforms to iso3691-1, EN1175-1, EN16307-1
