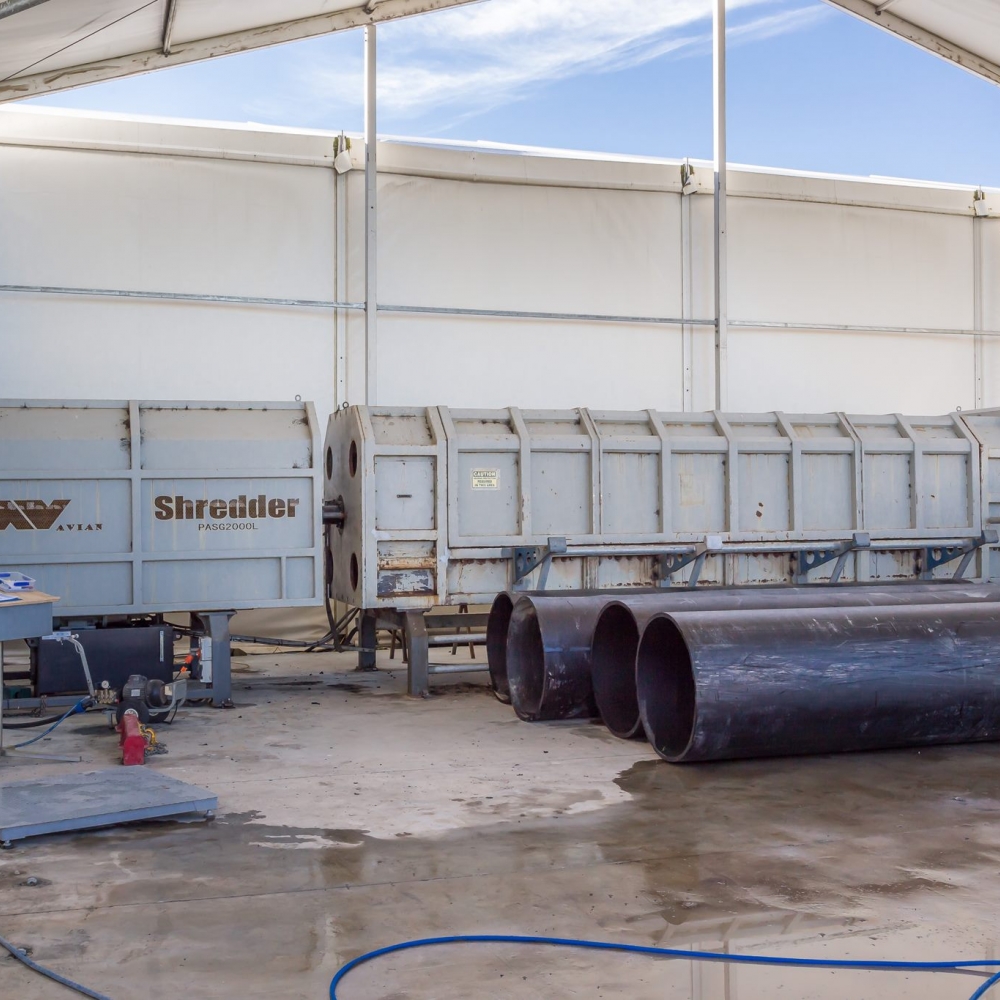

AVAIN PASG 2000L HDPE PIPE REGRIND SHREDDER,COMPLETE WITH AVIAN GRANULATOR.. MODEL 680/120 AND BULK BAG FILLER WITH INFEED BLOWER; TWO BAG LOADING FRAME; ELECTRICAL CONTROL PANEL AND ENCLOSURE; OPERATORS CONTROL BOOTH;TRANSFER ELEVATED CONVEYOR..

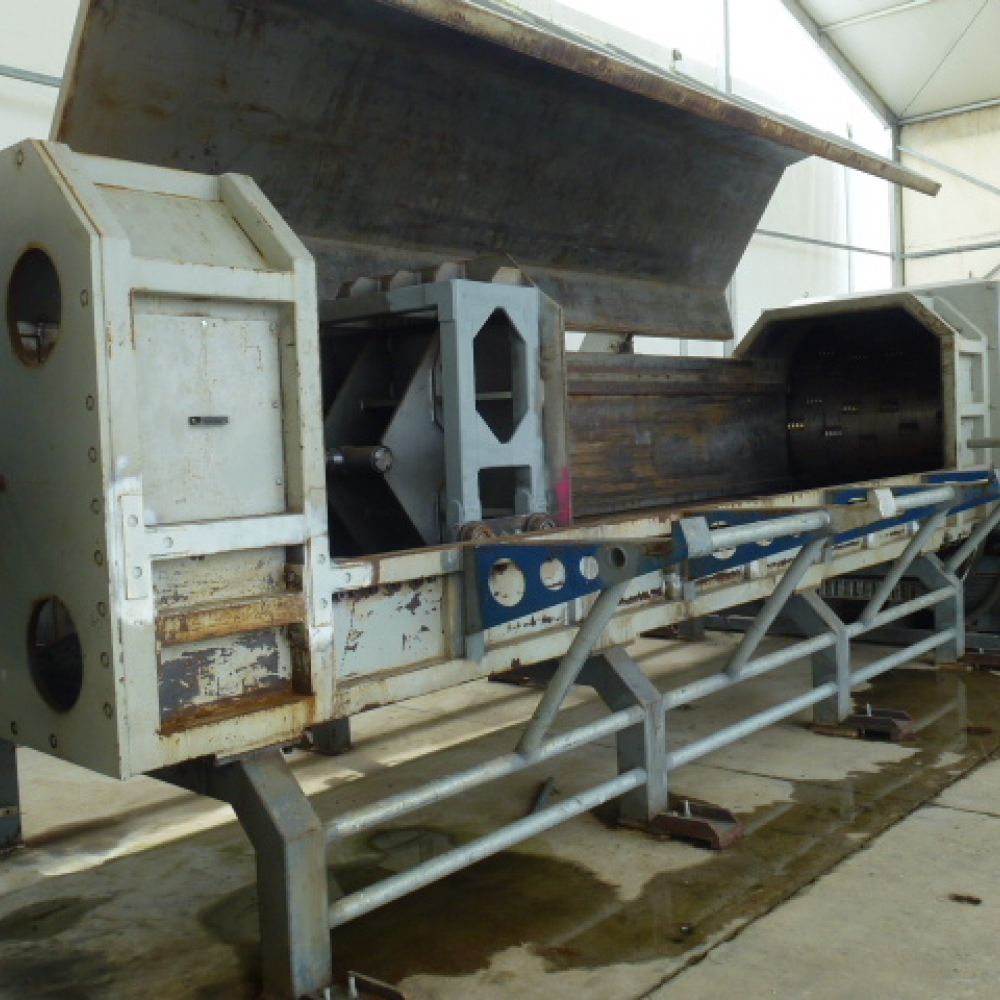

THE SHREDDER IS POWERED BY 2 X ABB 90KW ELECTRIC MOTORS( 50HZ, 1485 RPM, 151 AMPS) .. INFEED AREA APPROX 6000 MM (L) X 1610 MM (W) X 1700 MM (H).. HYDRAULIC POWER PACK ( MAX PRESS 21 MPA, MAX DISPLACEMENT 56.2 CM3/REV.. MODEL 456-P-R-01-H-K-32) WITH 17.3 KW ELECTRIC MOTOR, 2 STAGE HYDRAULIC RAM 140MM/120MM SPEAR.

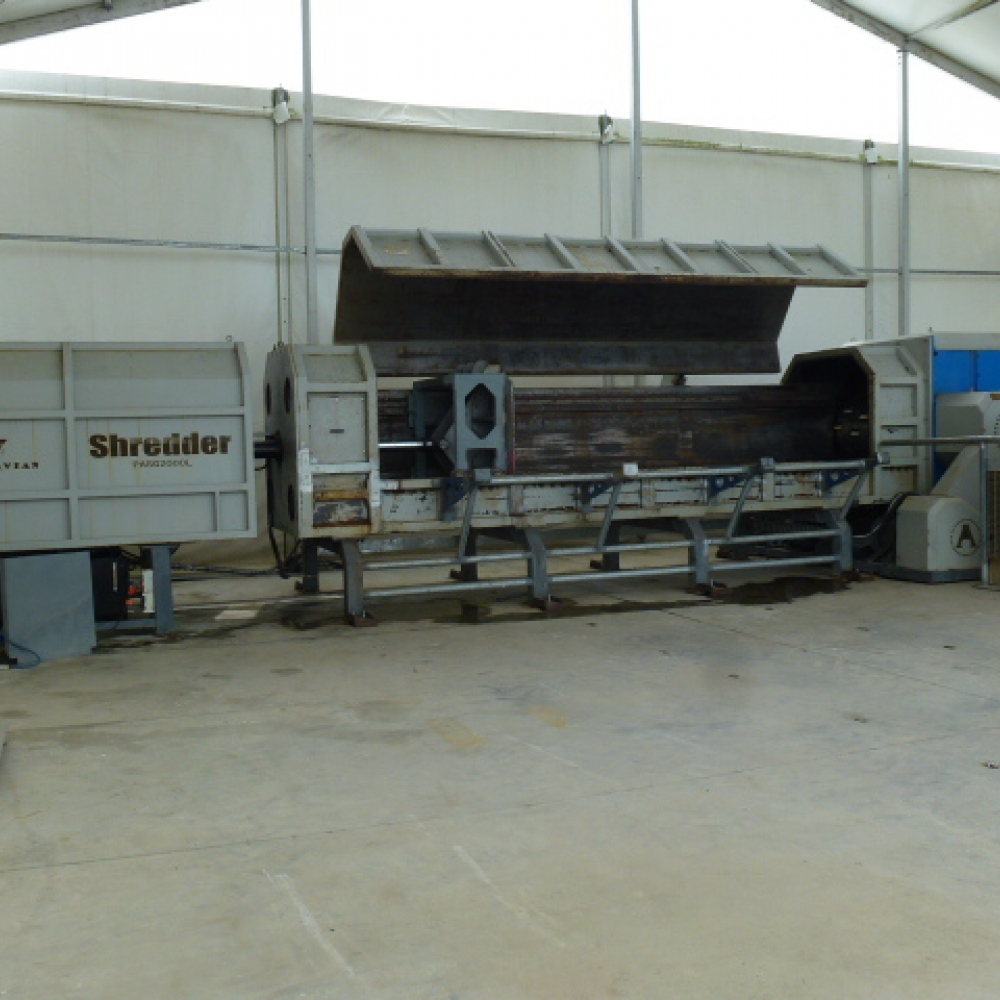

OVERALL FOOT PRINT DIMENSIONS OF SHREDDER - 14,200 MM (L) X 4900 (W) X 2850 MM (H) X 4000 MM (H) LID UP.
CONVEYOR DETAILS 7,800 MM(L) X 730MM (W) X (450 MM (W) RUBBER CLEATED BELT) X 3760 MM (H) ELEVATED END OF CONVEYOR.

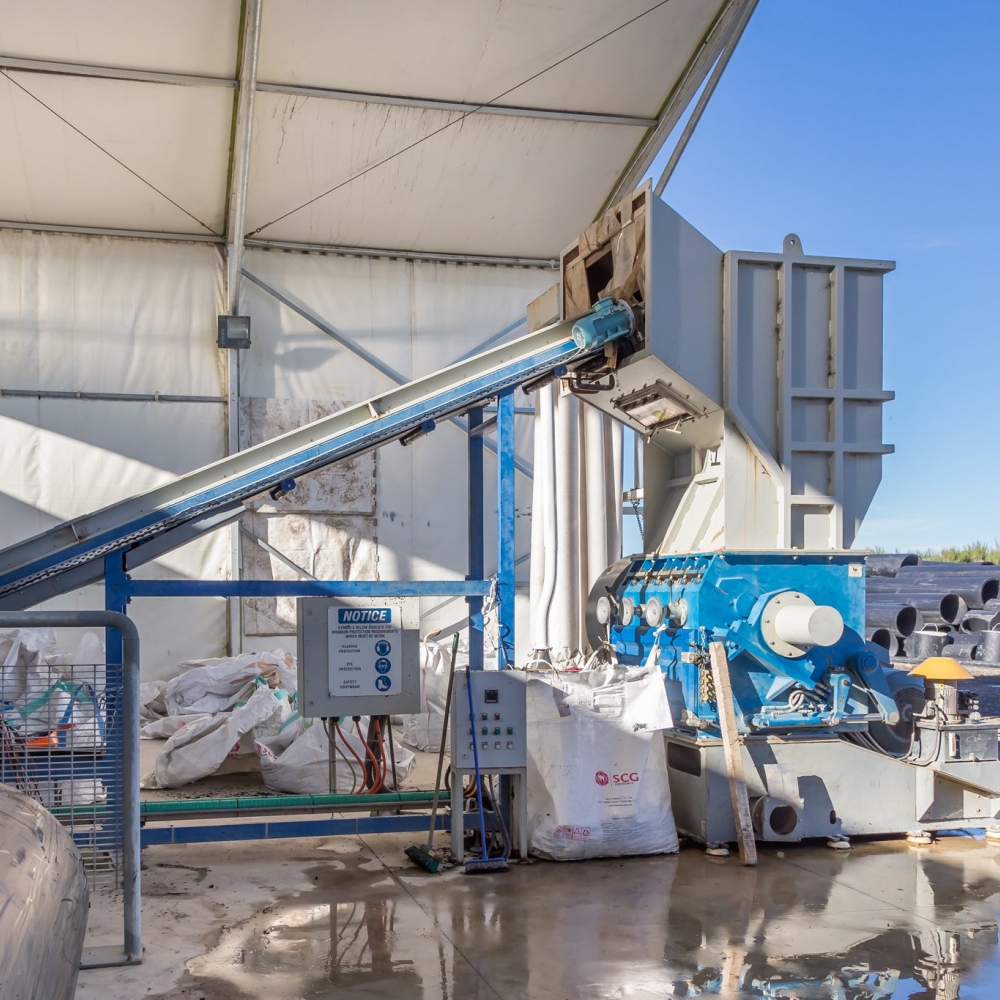

GRANULATOR DETAILS -AVIAN MODEL 680/120, MANUFACTURES DATE 2014/10, SERIAL NO. 14/05/026/80120/106.. 160KW , 415 VOLT , 50 HZ.INCLUDING HYDRAULIC POWER PACK WITH 2.2KW ELECTRIC MOTOR.. 3 X GRANULATOR SCREENS 8MM, 12MM, 14MM...APPROX DIMENSIONS 2500 MM (W) X 2900 MM (D) X 4350 MM (H)
HOPPER AND BAGGING DETAILS:

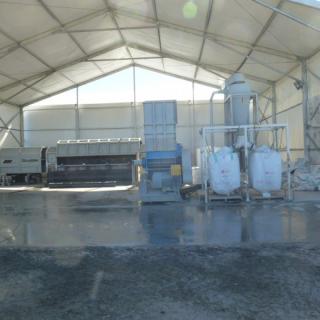

HOPPER IS COMPLETE WITH: SOCK DUST FILTER; 2 STATION BULK BAG FILLER AND SUPPORT FRAME WITH DIVERTER AND BUTTERFLY VALVES; BULK BAG SUPPORT CHAINS; PRODUCT BLOWER WITH 18.5KW , 34.3 AMPS, 2930 RPM, 50HZ ELECTRIC MOTOR; HYDRAULIC CONTROL PANEL TO OPEN GRANULATOR. FOOT PRINT DIMENSION INCLUDING BLOWER 3020 MM X 2700 MM (D) X 4670 MM (H).
ELECTRICAL MAIN CONTROL AND ENCLOSURE: DIMENSIONS - 1800 (W) X 480 (D) X 2200 (H) (MM).
OPERATORS CONTROL BOOTH WITH TOUCH SCREEN.
* EXTRACTION / DECOMMISSIONING/ LOADING COSTS .
EXTRACTION OF COMPLETE LINE,INCLUDING THE BELOW FACTORS/EQUIPMENT,AND LOAD TO TRUCK OR FLATRACK BASE. INCLUDED IN ESTIMATE:LABOUR, REQUIRED HOISTS, TRAVEL AND RELOCATION OF OUR EQUIPMENT,CRANAGE(70T/CRANE A DAY)-$21,500.00 + GST. LEAVING SITE: 5-6 FLATRACKS WILL BE REQUIRED. NO CONTAINERS WILL BE REQUIRED. $1850.00+GST TO GET ALL EMPTIES TO SITE. $625.00+ GST PER FLATRACK OR CONTAINER SITE TO LYTTELTON(INCLUDES VBS BOOKING AT PORT) BASED ON USING COMBILIFT ON SITE.
IF TRUCKED AWAY (4) TRUCKLOADS WILL BE REQUIRED.ALLOWANCE NEEDS TO BE MADE FOR PILOTING OVERSIZE/WEIGHT ITEMS.$1000.00 + GST PER LOAD TO CHRISTCHURCH/RECEIVER TO UNLOAD-ADDITIONAL FOR OVERSIZE WEIGHT UNITS,AS WEIGHT IS UNKNOWN NOT GIVEN. PRICE.$5780.00 + GST PER LOAD TO AUCKLAND/RECEIVER TO UNLOAD-ADDITIONAL FOR OVERSIZE WEIGHT UNITS, AS WEIGHT IS UNKNOWN NO GIVEN PRICE.ABOVE ALLOWS FOR REASONABLE UNLOADING TIME.
*ADDITIONAL COSTS/ TAGS IF REQUIRED.#ESTIMATE HEAT WRAPPING OF 40 FT BASES AT $1800.00-$2000.00 + GST PER FLATRACK. #ESTIMATE LASHING EQUIPMENT AT $16.20 +GST PER 2.5T STRAP.LASHING TO BE 3 TIMES WEIGHT OF ITEMS(YOU MAY WANT TO SUPPLY) # NO ALLOWANCE HAS BEEN MADE FOR MARINE SURVEY IF GOING OFFSHORE. # USE OF COMBILIFT FOR DURATION HAS BEEN ASSUMED. # NO ALLOWANCE HAS BEEN MADE FOR ANY PACKING TIMBER OR CRATES.#TIME FRAMES MENTIONED ARE STRICT BUT ACHIEVABLE IF WE OPERATE WITH OUT OBSTRUCTION.#NO ALLOWANCE HAS BEEN MADE FOR TRANSPORT OF THE ROLLER RACKS OUTSIDE AS DISCUSSED. # ANY TRANSPORT TO BE AT LIMITED CARRIERS LIABILITY UNLESS OTHERWISE SPECIFIED.# ALL ITEMS TO BE ELECTRICALLY DISCONNECTED FROM POWER.# SOME FRAMING ITEMS TO BE CUT TO FIT INSIZE ON UNITS TO SAVE TRANSPORTATION OUT OF GAUGE COSTS.
*ELECTRICAL DISCONNECTION COST-Shredder/Regrind Recycling Plant-$375.00.Additionally to disconnect each item ready for up-lift -$570.00
