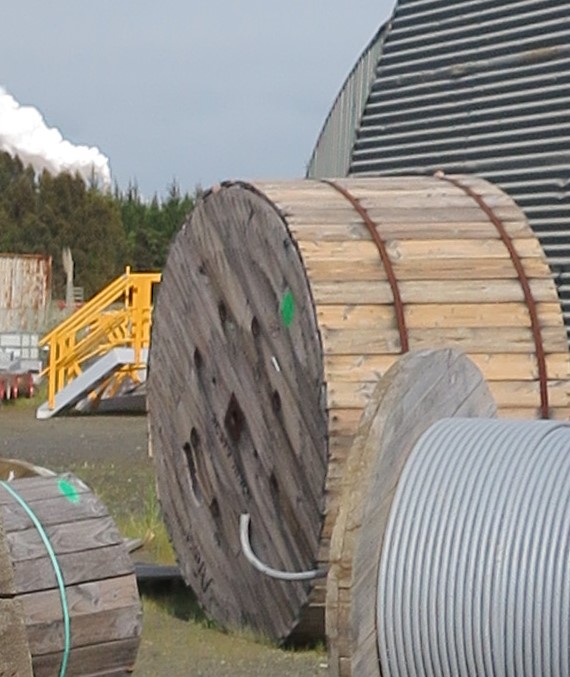

Cable Markings-CABLE 4 CORE 185MM2 +185MM2 EARTH XLPE LS SWA PVC 0.6/1KV......0.6/1KV 5G 185 XLPE LEAD SWA 3A BLACK. *PLEASE NOTE THE CABLE WEIGHT INCLUDES THE DRUM.
|

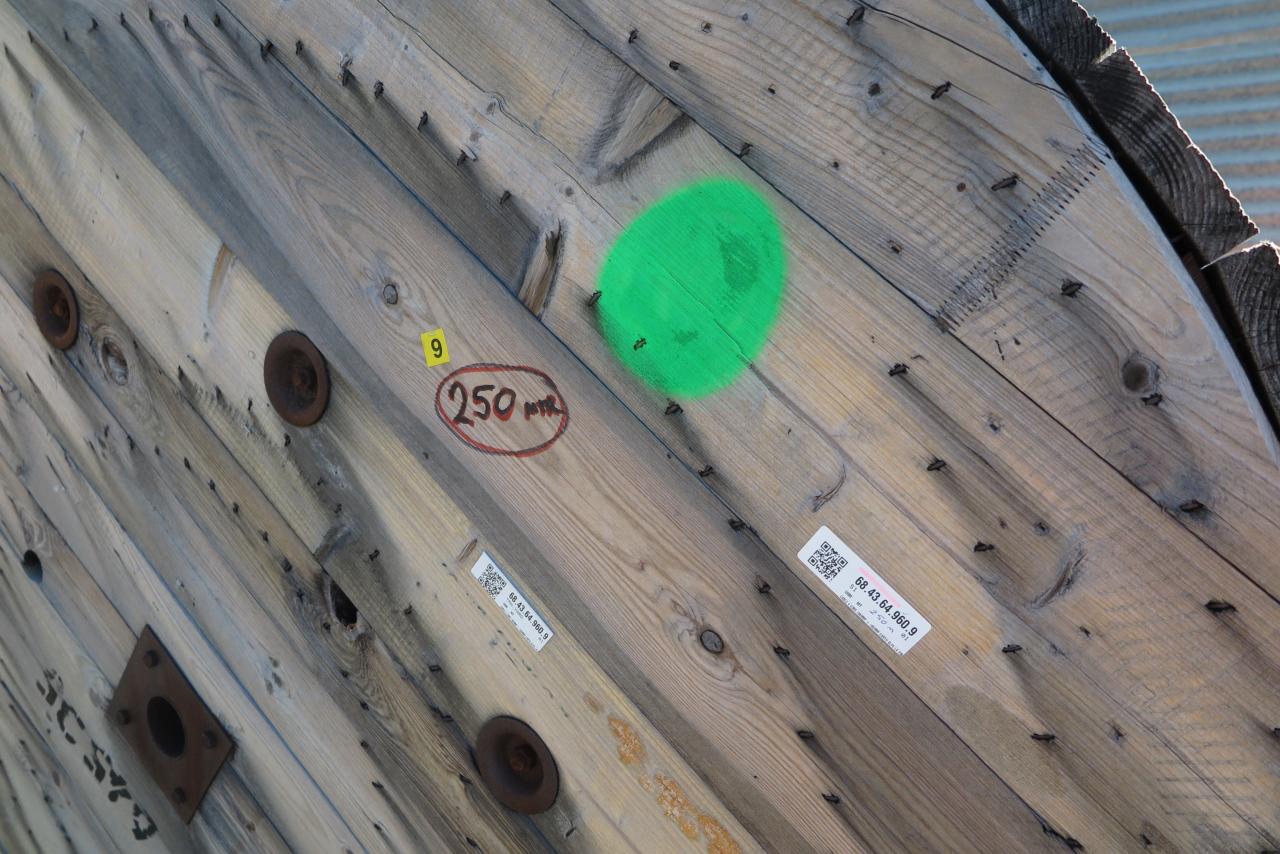

LOT 9 – 6843649609 - CABLE 4 CORE 185MM² + 185MM² EARTH XLPE LS SWA PVC 0.6/1kV |
|
CABLE 4 CORE 185MM + 185MM EARTH, STRANDED PLAIN COPPER CONDUCTORS, XLPE INSULATION, PVC BEDDING, LEAD SHEATH, BLACK PVC SHEATH. 0.6/1 kV. MADE TO IEC 60502-1
CONDUCTOR: STRANDED PLAIN COPPER CLASS 2 INSULATION: XLPE RATED VOLTAGE: 600/1000 VOLTS BEDDING: POLYESTER TAPE INNER/BEDDING SHEATH: PVC METALLIC SHEATH: LEAD SHEATH: PVC METALLIC ARMOUR: GALVANISED STEEL WIRES PROTECTIVE SHEATH: PVC NUMBER OF CORES: 5 CONDUCTOR CROSS SECTION: 185MM CORE IDENTIFICATION: RED, WHITE BLUE BLACK + GREEN/YELLOW CONDUCTOR DIAMETER: 15.85MM DIAMETER OVER INSULATION: 19.05 DIAMETER OVER INNER SHEATH: 55MM DIAMETER OVER LEAD SHEATH: 59.4MM DIAMETER OVER INTERMEDIATE SHEATH: 62.8MM DIAMETER OVER ARMOUR: 67.8MM MAX OUTER DIAMETER: 71.97MM APPROX WEIGHT: 19018.56 KG/KM FIRE RETARDANT IEC 60332-3-22 (A) CHEMICAL RESISTANCE ALIPHATIC AND AROMATIC HYDROCARBONS RESISTANT MAX CONDUCTOR TEMP RANGE -20~60 Deg C MINIMUM BENDING RADIUS 1 CORE: 10 X OUTER DIAMETER MINIMUM BENDING RADIUS MULTICORES: 8 X OUTER DIAMETER (TO BE DOUBLED DURING LAYING OPERATION) MARKING: NEXANS 276 XLPE/PVC/LC/PVC/SWA/PVC 0.6/1kV 5 CORE 185MM Cu IEC 60332-3-22 (A) - MM YYYY MANUFACTURING NUMBER + METRE MARKING
|
