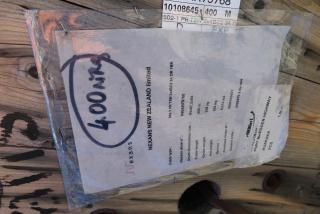

Cable Markings-CABLE POWER 3 CORE 4MM2 XLPE SWA PVC 600/1000V...502.1 PR T2W 3X4 BC2 3A OR 1 BLACK . *PLEASE NOTE THE CABLE WEIGHT INCLUDES THE DRUM.
|

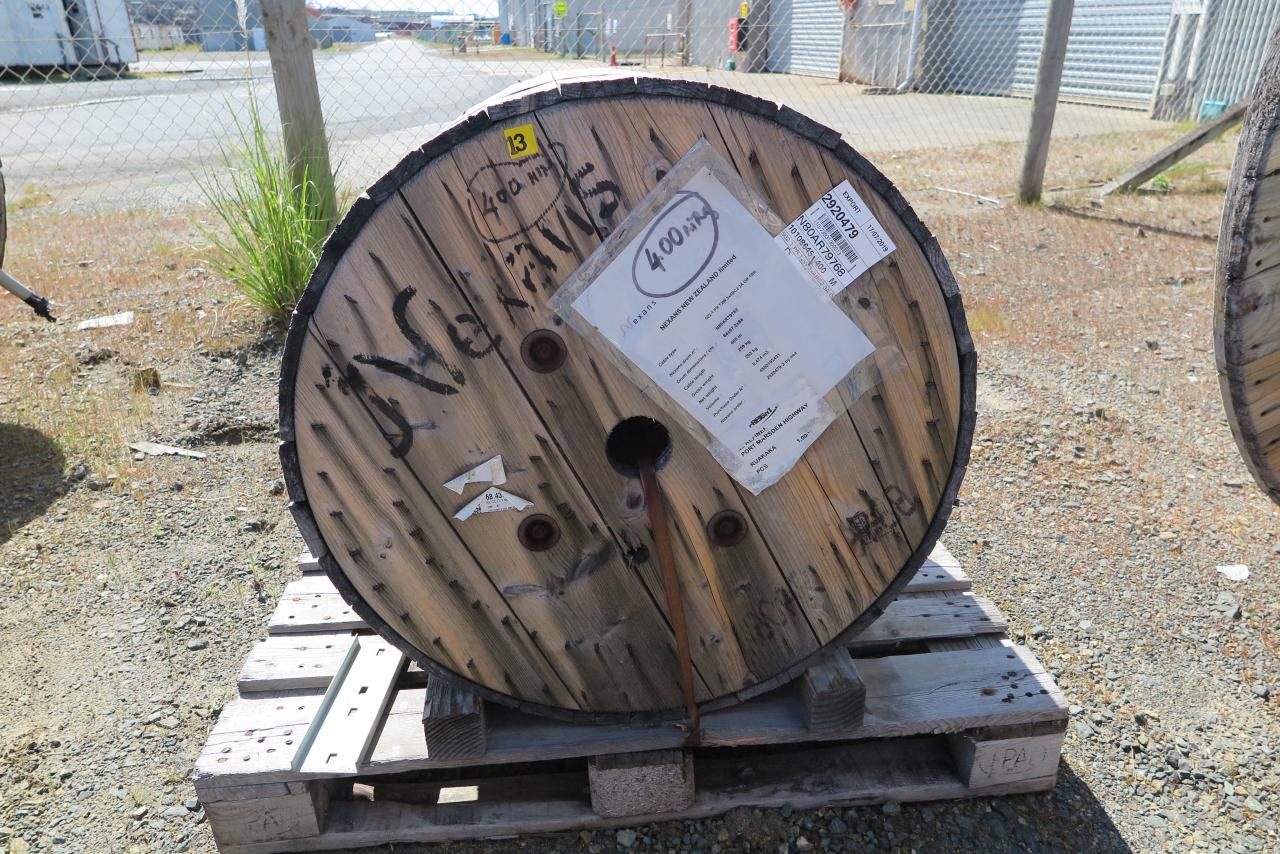

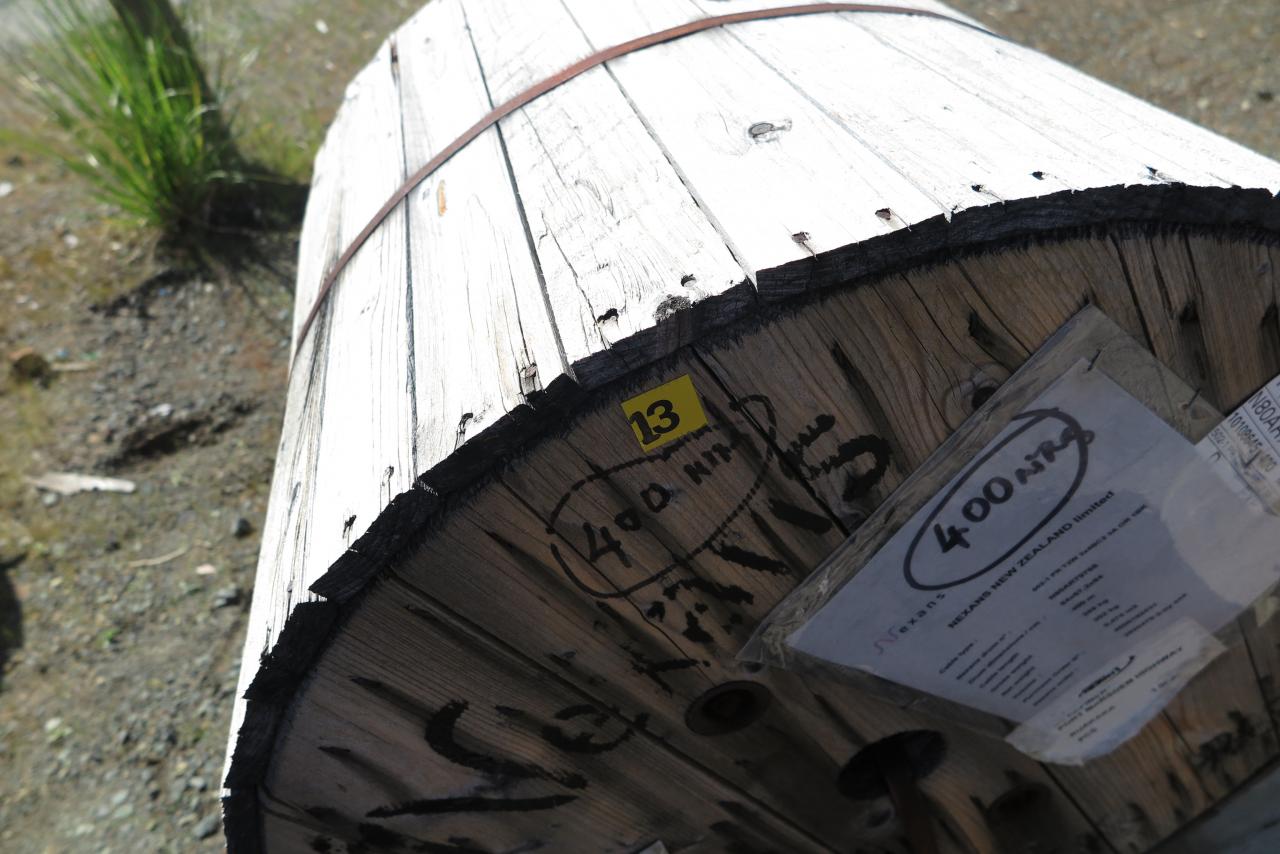

LOT 13 – 6843636269 - CABLE POWER 3 CORE 4MM² XLPE SWA PVC 600/1000V |
|
GALVANISED SWA, XLPE INSULATED STANDARDS: IEC 60502-1, IEC 60228, IEC 60332-3-22 CAT A CONDUCTOR MATERIAL: PLAIN COPPER TYPE OF CONDUCTOR: STRANDED CLASS 2 INSULATION: XLPE INNER SHEATH: PVC ARMOUR TYPE GALVANISED STEEL WIRES OUTER SHEATH: PVC PROTECTION: YES CORE IDENTIFICATION: CORE ID EUROPEAN HARMONISATION HD 308 S2 RATED VOLTAGE: 600/1000V MECHANICAL RESISTANCE TO IMPACT OIL RESISTANT MAX CONDUCTOR TEMPERATURE: 90 Deg C OPERATING TEMPERATURE: -20 Deg C TO 60 Deg C NUMBER OF CORES: 3 CONDUCTOR CROSS SECTION: 4MM CONDUCTOR DIAMETER: 2.43 DIAMETER OVER INSULATION: 3.83MM DIAMETER OVER INNER SHEATH: 10.8MM DIAMETER OVER ARMOUR: 12.6MM MAXIMUM OUTER DIAMETER: 17.3MM MINIMUM OUTER DIAMETER: 15.71MM MARKING: NEXANS 279 XLPE/PVC/SWA/PVC 0.6/1kV NBER OF CORES AND CROSS SECTION Cu IEC 60332-3-22(A) MM YYYY MANUFACTURING NUMBER + METRE MARKING
|
