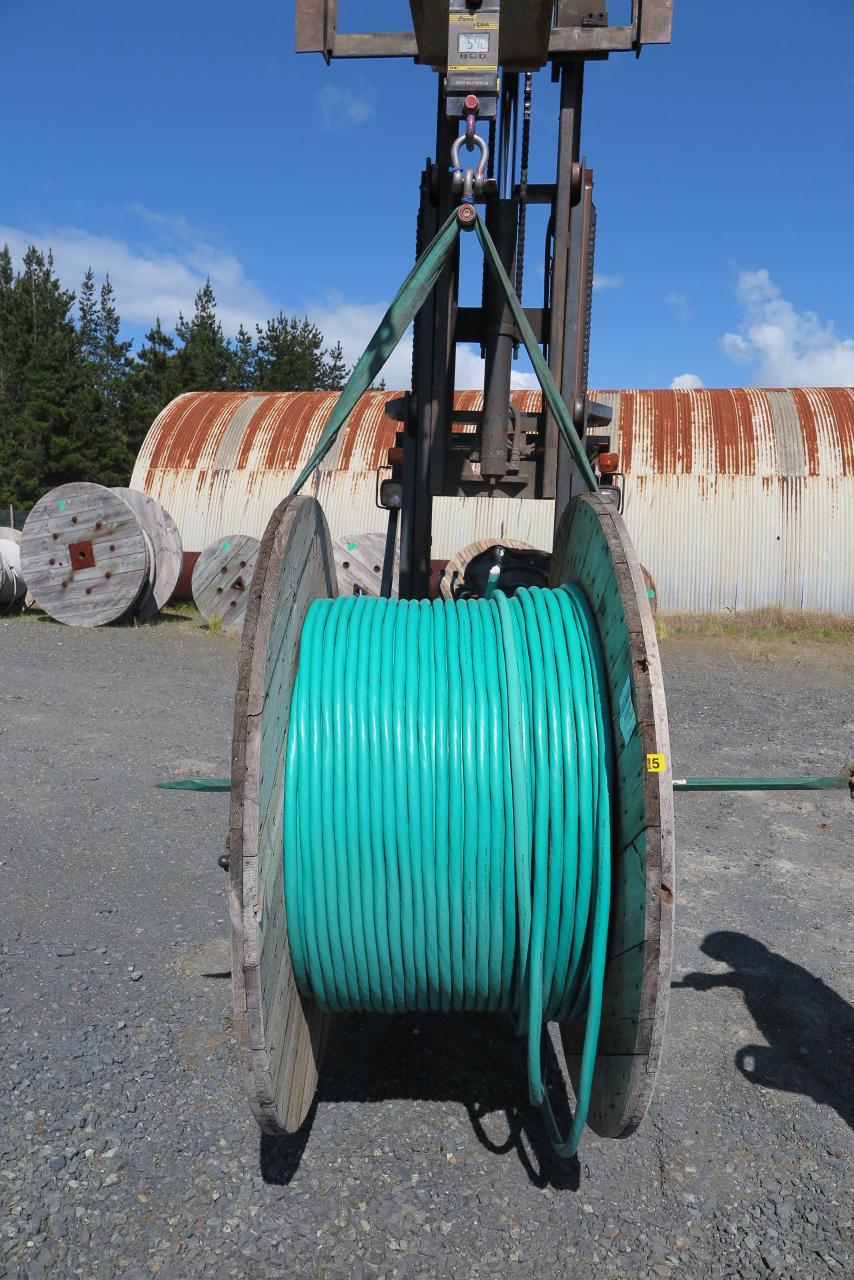

GC SPEC NUMBER: 07/739
GC ITEM NUMBER:
DESCRIPTION:
1.0MMSQ 10 PAIR,TINNED COPPER CONDUCTOR,
PE INSULATION,TWISTED,LAID UP AND
SCREENED WITH AL/POLYESTER LAMINATE TAPE
AND TINNED COPPER DRAINWIRE,EXTRUDED
PVC BEDDED,STEEL WIRE ARMOURED,
PVC OVERSHEATHED CABLE
GENERALLY TO BS5308 PART 1,1986: 300/500 VOLTS
CONDUCTOR:
MATERIAL: TINNED ANNEALED COPPER
STRANDING: 1/1.13MM
SHAPE: CIRCULAR
CSA: 1.0MMSQ
DIA/DEPTH(MM): 1.13 NOM
INSULATION:
EXTRUDED: POLYETHYLENE COMPOUND TYPE PE
COLOURS: AS PER STANDARD
RADIAL(MM): 0.55 MIN AV
0.60 NOM AV
0.65 MAX AV
0.50 MIN PT
DIA/DEPTH(MM): 2.23 MIN
2.33 NOM
2.43 MAX
TWISTING:
DIA/DEPTH(MM): 4.46 MIN
4.66 NOM
4.86 MAX
LAYUP:
0.023MM POLYPROPYLENE TAPE APPLIED HELICALLY
WITH 50% OVERLAP
TAPE WIDTH 40MM
DIA/DEPTH(MM): 13.39 MIN
13.98 NOM
14.58 MAX
SCREEN:
0.80MM TAC WIRE TWISTED OVER POLYPROPYLENE WRAP
0.05MM AL/POLYESTER TAPE APPLIED HELICALLY
WITH 30% OVERLAP
METAL SIDE IN
TAPE WIDTH 40MM
RADIAL(MM): 0.10
DIA(MM): 13.59 MIN
14.18 NOM
14.78 MAX
BEDDING:
EXTRUDED POLYVINYL-CHLORIDE(PVC)COMPOUND
TYPE VD26
COLOUR: BLACK
RIPCORD LAID UNDER BEDDING
RADIAL(MM): 1.10 MIN AV
1.20 NOM AV
1.30 MAX AV
0.92 MIN PT
DIA(MM): 15.79 MIN
16.59 NOM
17.38 MAX
|
ARMOUR:
GALVANISED STEEL WIRE
NUMBER OF WIRES 32
WIRE SIZE 1.6MM
RADIAL(MM): 1.6
DIA/DEPTH(MM): 18.99 MIN
19.79 NOM
20.58 MAX
SHEATH:
EXTRUDED:POLYVINYL-CHLORIDE (PVC) COMPOUND TYPE
VD26, UV STABILISED
COLOUR: GREEN
RADIAL(MM): 1.60 MIN AV
1.70 NOM AV
1.80 MAX AV
1.16 MIN PT
DIA/DEPTH(MM): 22.19 MIN
23.19 NOM
24.18 MAX
IDENTIFICATION:
SHEATH PRINTED
GENERAL CABLE NZ 10X2X1.13MM BS 5308 300/500V
D.O.M/M.O.M/ Y.O.M
TESTING:
TEST TO T126A2
MODIFICATIONS:
18/06/2007 ORIGINAL LB(GC)
|
