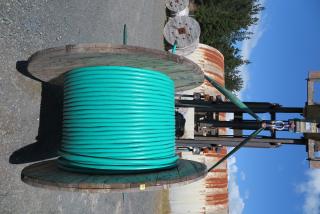

GC SPEC NUMBER: 07/740
GC ITEM NUMBER:
DESCRIPTION:
1.0MMSQ 20 PAIR,TINNED COPPER CONDUCTOR,
PE INSULATION,TWISTED,LAID UP AND
SCREENED WITH AL/POLYESTER LAMINATE TAPE
AND TINNED COPPER DRAINWIRE,EXTRUDED
PVC BEDDED,STEEL WIRE ARMOURED,
PVC OVERSHEATHED CABLE
GENERALLY TO BS5308 PART 1,1986: 300/500 VOLTS
CONDUCTOR:
MATERIAL: TINNED ANNEALED COPPER
STRANDING: 1/1.13MM
SHAPE: CIRCULAR
CSA: 1.0MMSQ
DIA/DEPTH(MM): 1.13 NOM
INSULATION:
EXTRUDED: POLYETHYLENE COMPOUND TYPE PE
COLOURS: AS PER STANDARD
RADIAL(MM): 0.55 MIN AV
0.60 NOM AV
0.65 MAX AV
0.50 MIN PT
DIA/DEPTH(MM): 2.23 MIN
2.33 NOM
2.43 MAX
TWISTING:
DIA/DEPTH(MM): 4.46 MIN
4.66 NOM
4.86 MAX
LAYUP:
0.023MM POLYPROPYLENE TAPE APPLIED HELICALLY
WITH 50% OVERLAP
TAPE WIDTH 40MM
DIA/DEPTH(MM): 18.89 MIN
19.73 NOM
20.58 MAX
SCREEN:
0.80MM TAC WIRE TWISTED OVER POLYPROPYLENE WRAP
0.05MM AL/POLYESTER TAPE APPLIED HELICALLY
WITH 30% OVERLAP
METAL SIDE IN
TAPE WIDTH 40MM
RADIAL(MM): 0.10
DIA(MM): 19.09 MIN
19.93 NOM
20.78 MAX
BEDDING:
EXTRUDED POLYVINYL-CHLORIDE(PVC)COMPOUND
TYPE VD26
COLOUR: BLACK
RIPCORD LAID UNDER BEDDING
RADIAL(MM): 1.40 MIN AV
1.50 NOM AV
1.60 MAX AV
1.18 MIN PT
DIA(MM): 21.89 MIN
22.94 NOM
23.98 MAX
|
ARMOUR:
GALVANISED STEEL WIRE
NUMBER OF WIRES 43
WIRE SIZE 1.6MM
RADIAL(MM): 1.6
DIA/DEPTH(MM): 25.09 MIN
26.14 NOM
27.18 MAX
SHEATH:
EXTRUDED:POLYVINYL-CHLORIDE (PVC) COMPOUND TYPE
VD26, UV STABILISED
COLOUR: GREEN
RADIAL(MM): 1.70 MIN AV
1.80 NOM AV
1.90 MAX AV
1.24 MIN PT
DIA/DEPTH(MM): 28.49 MIN
29.74 NOM
30.98 MAX
IDENTIFICATION:
SHEATH PRINTED
GENERAL CABLE NZ 20X2X1.13MM BS 5308 300/500V
D.O.M/M.O.M/ Y.O.M
TESTING:
TEST TO T126A2
MODIFICATIONS:
18/06/2007 ORIGINAL LB(GC)
|
