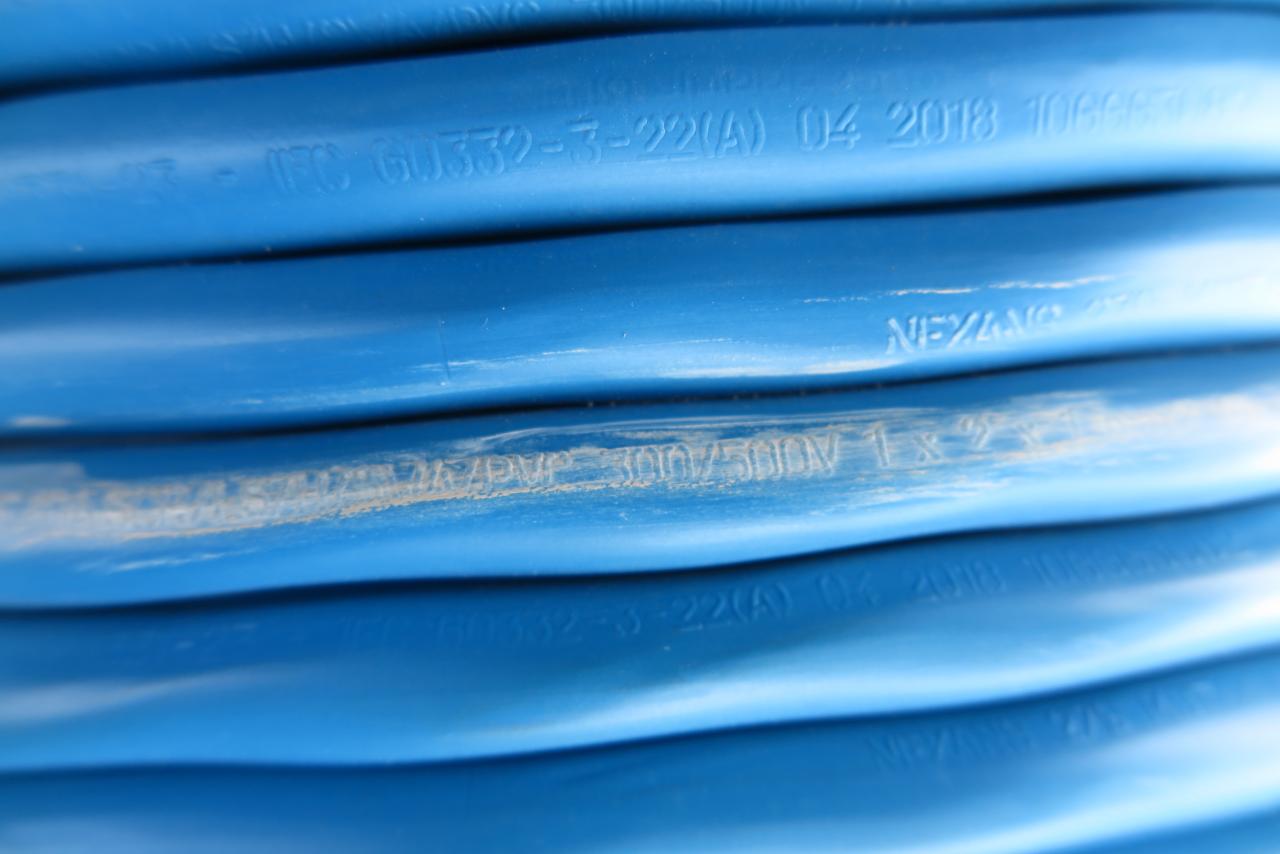

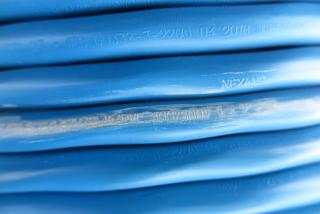

Cable Markings-CABLE INSTRUMENTATION 2 PR 1.0MM2, 300/500V XLPE BLUE 2 X 2 X 1.13 300/500 14/04/2014. *PLEASE NOTE THE CABLE WEIGHT INCLUDES THE DRUM.
|

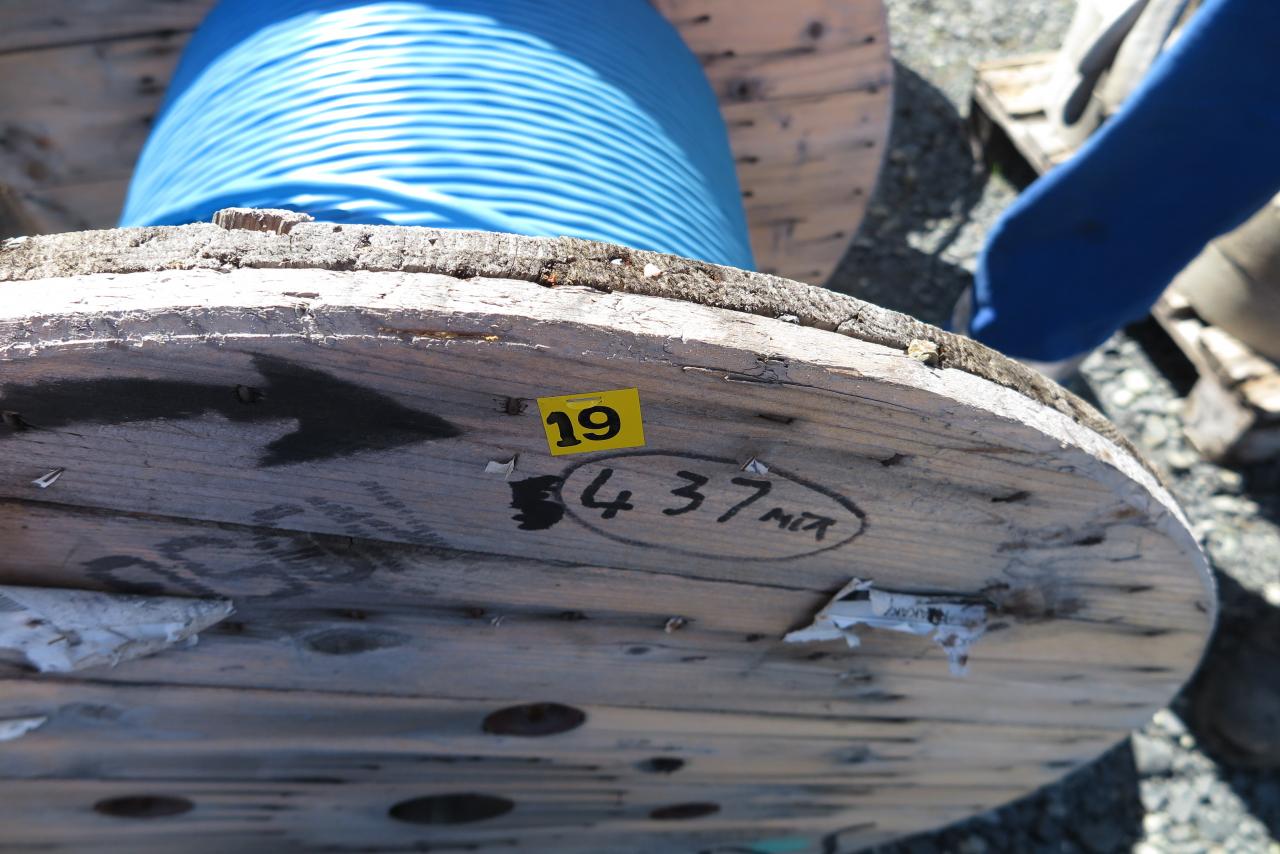

LOT 19 – 6843156239 - CABLE INSTRUMENTATION 2 PR 1.0MM², 300/500V, XLPE (BLUE) |
|
APPLICATION : INSTRUMENT/COMMS CABLE TRANSMITTING ANALOGUE/DIGITAL SIGNALS APPROX WEIGHT KG/KM : 290 ARMOURING : GALVANISED STEEL WIRE CABLE STANDARDS : PAS 5308 PART 1/TYPE 1 (DESIGN GUIDELINES) BS EN IEC 60228 BS EN IEC 50290-2-29 CHEMICAL RESISTANT : YES COLOUR, OUTER SHEATH : BLUE CONDUCTOR CROSS SECTION : 1.0MM² CONDUCTOR DIAMETER (MM) : 1.14 DESCRIPTIVE DETAIL : CABLE, INSTRUMENTATION, 2 PAIR, 1.0MM², 300/500V XLPE INSULATION (PART 1), GSW ARMOURED (TYPE 2) OVERALL SCREEN, OIL RESISTANT (BLUE) DIAMETER OVER ARMOUR (MM) : 9.2 DIAMETER OVER INNER SHEATH (MM) : 7.4 DIAMETER OVER INSULATION (MM) : 2.34 ELECT MAGN INTERF RESIST : YES FIRE RETARDANT STANDARD : IEC 60332-3-22 IDENTIFICATION, CORES : PAIR: BLACK - WHITE WHITE CORE PRINTED WITH PAIR NUMBER INSULATION : CROSS-LINKED POLYETHYLENE MARKING : NEXANS 279 XLPE/OA.SCR/PVC/SWA/PVC 300/500V NBER OF PAIRS & CROSS-SECTION CU IEC 60332-3-22(A) MM YYYY, MANUFACTURING NUMBER + METRIC MARKING MAT SPEC, INNER SHEATH : PVC MAT SPEC, OUTER SHEATH : PVC MAT, CONDUCTOR : TINNED ANNEALED COPPER MAX CONDUCTOR TEMP (IN SERVICE) : 90 °C MAX OUTER DIAMETER (MM) : 12.9 MIN OUTER DIAMETER (MM) : 11.5 NUMBER OF PAIR : 2 OIL RESISTANT : YES OVERALL SCREEN : BINDER TAPE TINNED COPPER DRAIN WIRE ALUMINIUM POLYESTER TAPE TEMPERATURE, OPERATING : -20 .. 60 °C TYPE : SOLID/CLASS1 VOLTAGE, RATED : 300 / 500 V
|
