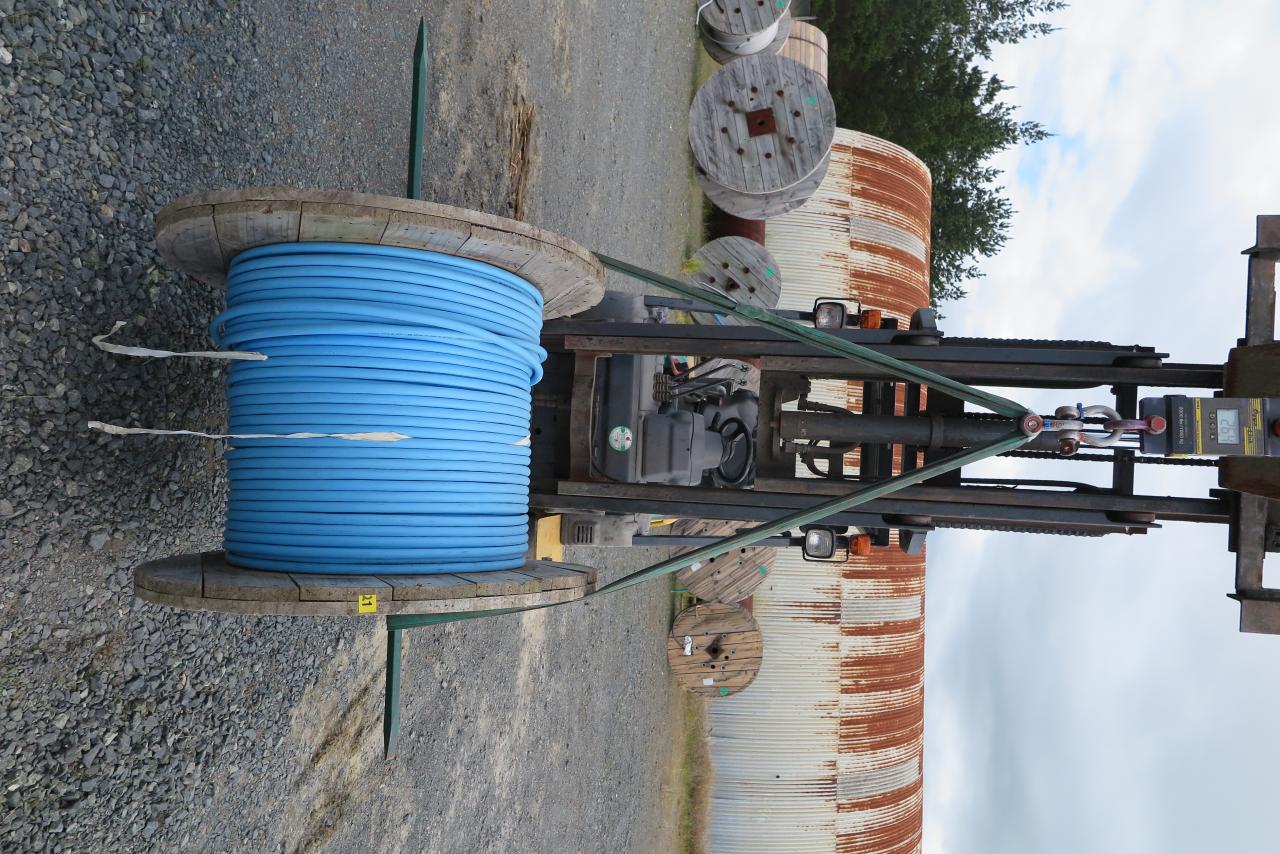

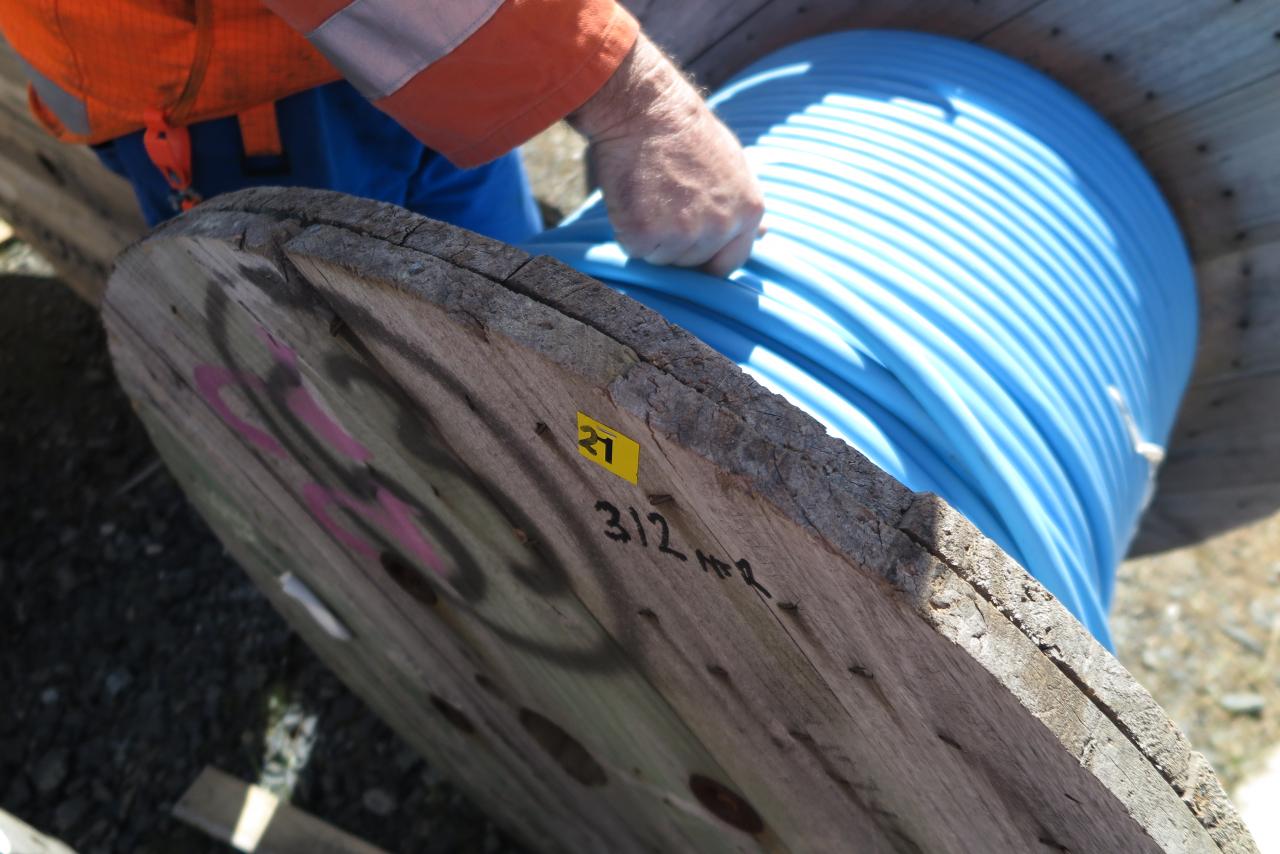

GC SPEC NUMBER: 06/A176
GC ITEM NUMBER:
DESCRIPTION:
1.0MMSQ 5 PAIR,TINNED COPPER CONDUCTOR,
PE INSULATION,TWISTED,LAID UP AND
SCREENED WITH AL/POLYESTER LAMINATE TAPE
AND TINNED COPPER DRAINWIRE,EXTRUDED
PVC BEDDED,STEEL WIRE ARMOURED,
PVC OVERSHEATHED CABLE
GENERALLY TO BS5308 PART 1,1986: 300/500 VOLTS
CONDUCTOR:
MATERIAL: TINNED ANNEALED COPPER
STRANDING: 1/1.13MM
SHAPE: CIRCULAR
CSA: 1.0MMSQ
DIA/DEPTH(MM): 1.13 NOM
INSULATION:
EXTRUDED: POLYETHYLENE COMPOUND TYPE PE
COLOURS: AS PER STANDARD
RADIAL(MM): 0.55 MIN AV
0.60 NOM AV
0.65 MAX AV
0.50 MIN PT
DIA/DEPTH(MM): 2.23 MIN
2.33 NOM
2.43 MAX
TWISTING:
DIA/DEPTH(MM): 4.46 MIN
4.66 NOM
4.86 MAX
LAYUP:
0.023MM POLYPROPYLENE TAPE APPLIED HELICALLY
WITH 50% OVERLAP
TAPE WIDTH 55MM
DIA/DEPTH(MM): 9.49 MIN
9.91 NOM
10.33 MAX
SCREEN:
0.80MM TAC WIRE TWISTED OVER POLYPROPYLENE WRAP
0.05MM AL/POLYESTER TAPE APPLIED HELICALLY
WITH 30% OVERLAP
METAL SIDE IN
TAPE WIDTH 55MM
RADIAL(MM): 0.10
DIA(MM): 12.09 MIN
12.51 NOM
12.93 MAX
BEDDING:
EXTRUDED POLYVINYL-CHLORIDE(PVC)COMPOUND
TYPE VD26
COLOUR: BLACK
RIPCORD LAID UNDER BEDDING
RADIAL(MM): 1.10 MIN AV
1.20 NOM AV
1.30 MAX AV
0.92 MIN PT
DIA(MM): 14.29 MIN
14.91 NOM
15.53 MAX
|
ARMOUR:
GALVANISED STEEL WIRE
NUMBER OF WIRES 37
WIRE SIZE 1.25MM
RADIAL(MM): 1.25
DIA/DEPTH(MM): 16.79 MIN
17.41 NOM
18.03 MAX
SHEATH:
EXTRUDED PVC COMPOUND TYPE VD26
COLOUR: BLUE
RADIAL(MM): 1.60 MIN AV
1.70 NOM AV
1.80 MAX AV
1.16 MIN PT
DIA/DEPTH(MM): 19.99 MIN
20.81 NOM
21.63 MAX
ELECTRICAL SPECIFICATION:
MAX DC CONDUCTOR RESISTANCE AT 20 DEG C: 18.4 OHM/KM
MIN INSULATION RESISTANCE AT 500V DC : 5000 MOHM.KM
NOMINAL CAPACITANCE : 75 NF/KM
NOMINAL INDUCTANCE : 1.0 MH/KM
IDENTIFICATION:

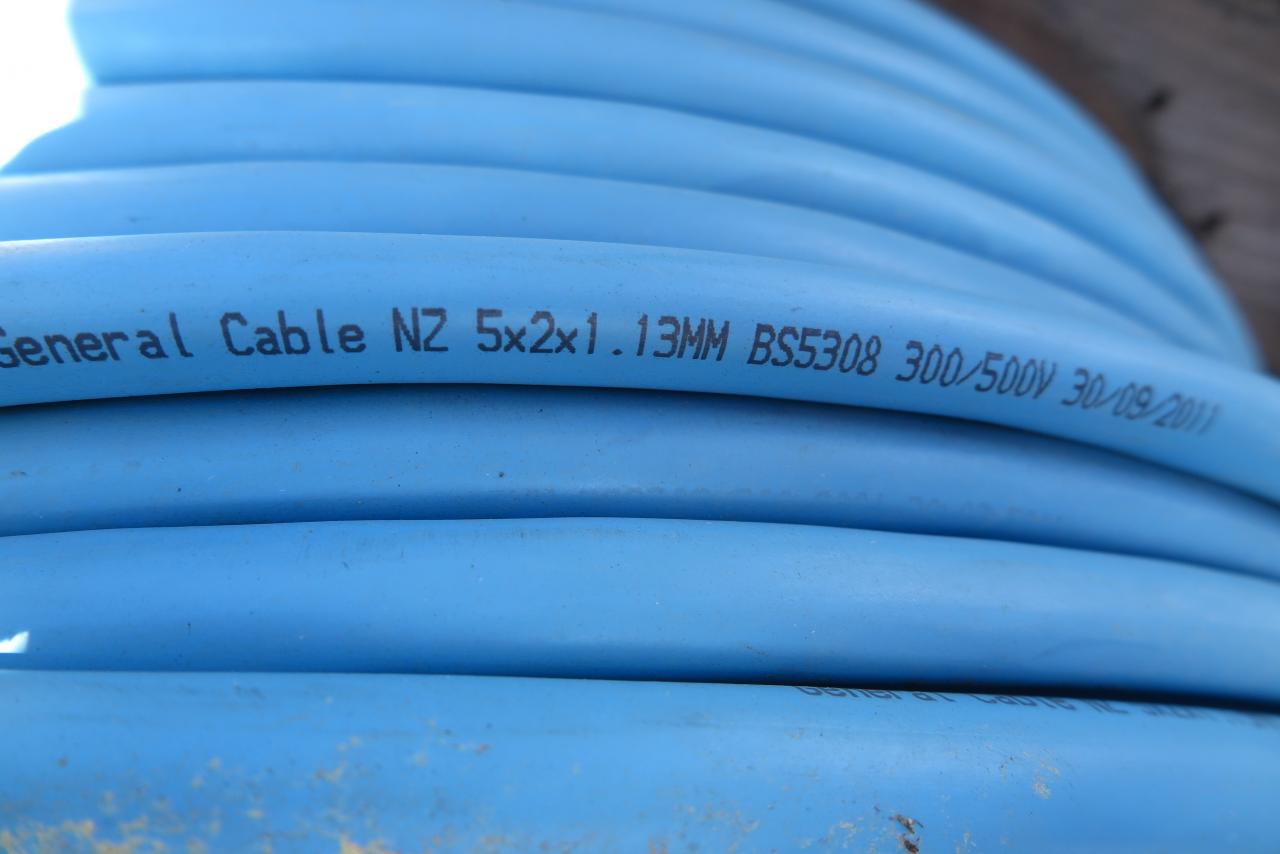

SHEATH PRINTED
GENERAL CABLE NZ 2X5X1.13MM BS 5308 300/500V
D.O.M/M.O.M/ Y.O.M
TESTING:
TEST TO T126A2
MODIFICATIONS:
21/12/2006 ORIGINAL LB(GC)
|
