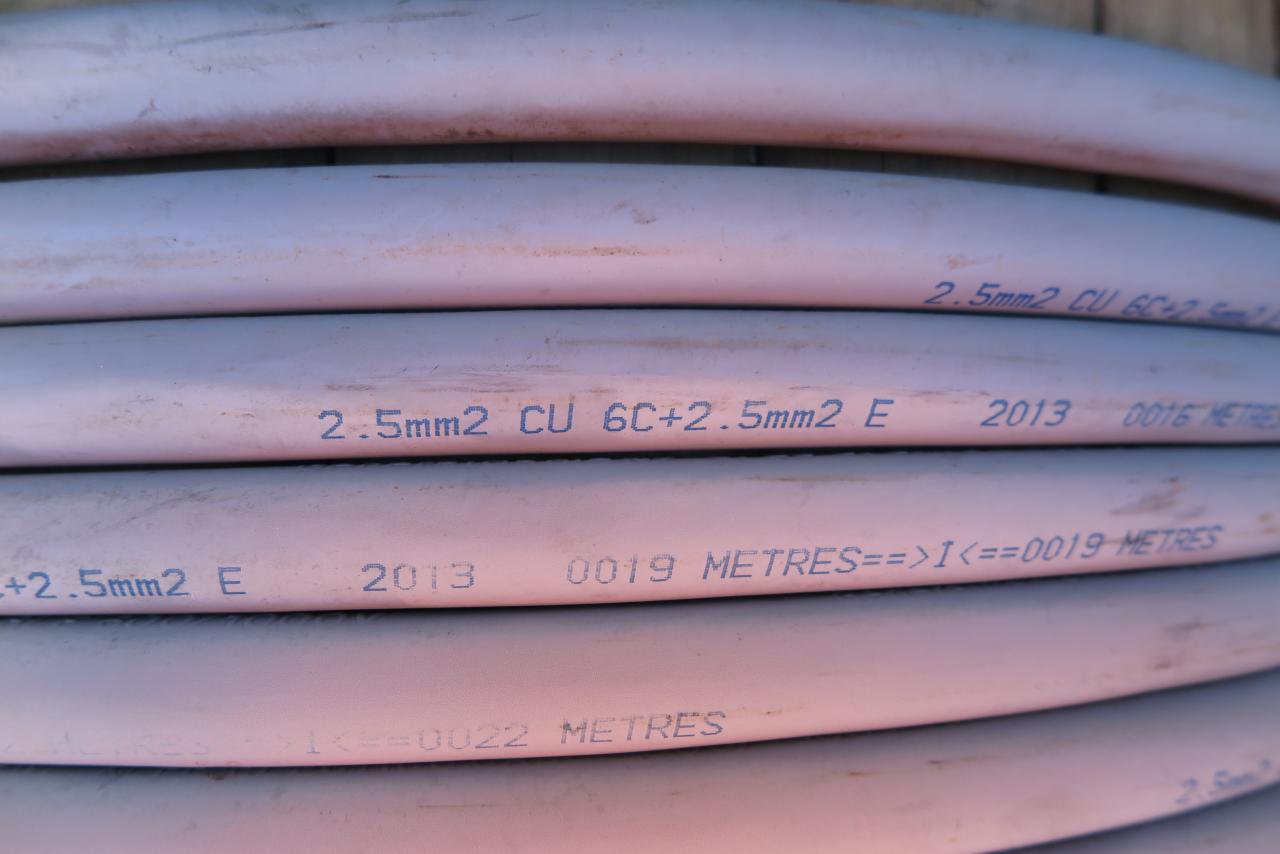

CABLE MARKINGS-POWER, CU, 6C,2.5MM2, XLPE, CWS, LS, GWS, PVC, 0.6/1KV, 1EC 60502...2.5MM2 CU 6C+2.5MM E 2013 (EXTRA CORE -E) *PLEASE NOTE THE CABLE WEIGHT INCLUDES THE DRUM.
|
LOT 23 – 6843649619 - CABLE, POWER, CU, 6C, 2.5MM2, XLPE, CWS, LS, GSW, PVC, 0.6/1KV, IEC 60502-1 |
|
Conductor: Copper Cores: 6 Conductor Cross-Sectional Area: 2.5mm2 Insulation: XLPE Insulation Colours: White, Numbered Metallic Screen: Plain Annealed Copper Wires Screen Cross-Sectional Area: 2.5mm2 Metallic Sheath: Lead Type of Armour: Galvanised Steel Wire (GSW) Oversheath: PVC Oversheath Colour: Black Voltage: 0.6/1 (1.2) kV Overall Diameter: Vendor to Advise Metre Marking Required? Yes Routine Test Results Required? Yes Standards: IEC 60502-1
|
