STANDARD: GENERALLY TO IEC60502-1 1998
COMPLIANT WITH IEC60332-3-24
FLAME RETARDANT PROPERTIES
CONDUCTOR:PLAIN ANNEALED COPPER
STRANDING:7/1.70MM
SHAPE:CIRCULAR COMPRESSED
CSA 16MM²
DIA 4.90MM
INSULATION:EXTRUDED XLPE
COLOUR: RED, WHITE, BLUE
RADIAL: MIN AV 0.70MM
MAX AV 0.77MM
DIA: MIN 6.25MM
MAX 6.49MM
LAY UP:3 CORE CIRCULAR, R/H LAY
BINDER: 1X0.025 POLYESTER OR POLYPROPYLENE
TAPE WITH 10% OVERLAP
BEDDING:EXTRUDED PVC COMPOUND
COLOUR:BLACK
DIA.:MIN 15.52MM
MAX 16.24MM
COPPER EARTH SCREEN: PLAIN ANNEALED COPPER
WIRE SIZE:0.85MM
# OF WIRES 11
WIRES SPACED EQUALLY AROUND CABLE
LEAD SHEATH:EXTRUDED LEAD ALLOY E
2 x RIPCORDS LAID UNDER SHEATH
RADIAL:MIN 1.50MM
MAX 1.65MM
DIA:MIN 20.22MM
MAX 21.24MM
BEDDING: EXTRUDED PVC COMPOUND
COLOUR: BLACK
RADIAL: MIN AV 1.20MM
MAX AV 1.32MM
DIA: MIN 22.62MM
MAX 23.88MM
ARMOUR:GALVANISD STEEL WIRE L/H LAY
DIA: 1.60MM
# OF WIRES 45
DIA: MIN 25.82MM
MAX 27.08MM
SHEATH: EXTRUDED PVC COMPOUND
COLOUR: GREY
RADIAL: MIN AV 1.90MM
MAX AV 2.09MM
DIA: MIN 29.62MM
MAX 31.26MM
|

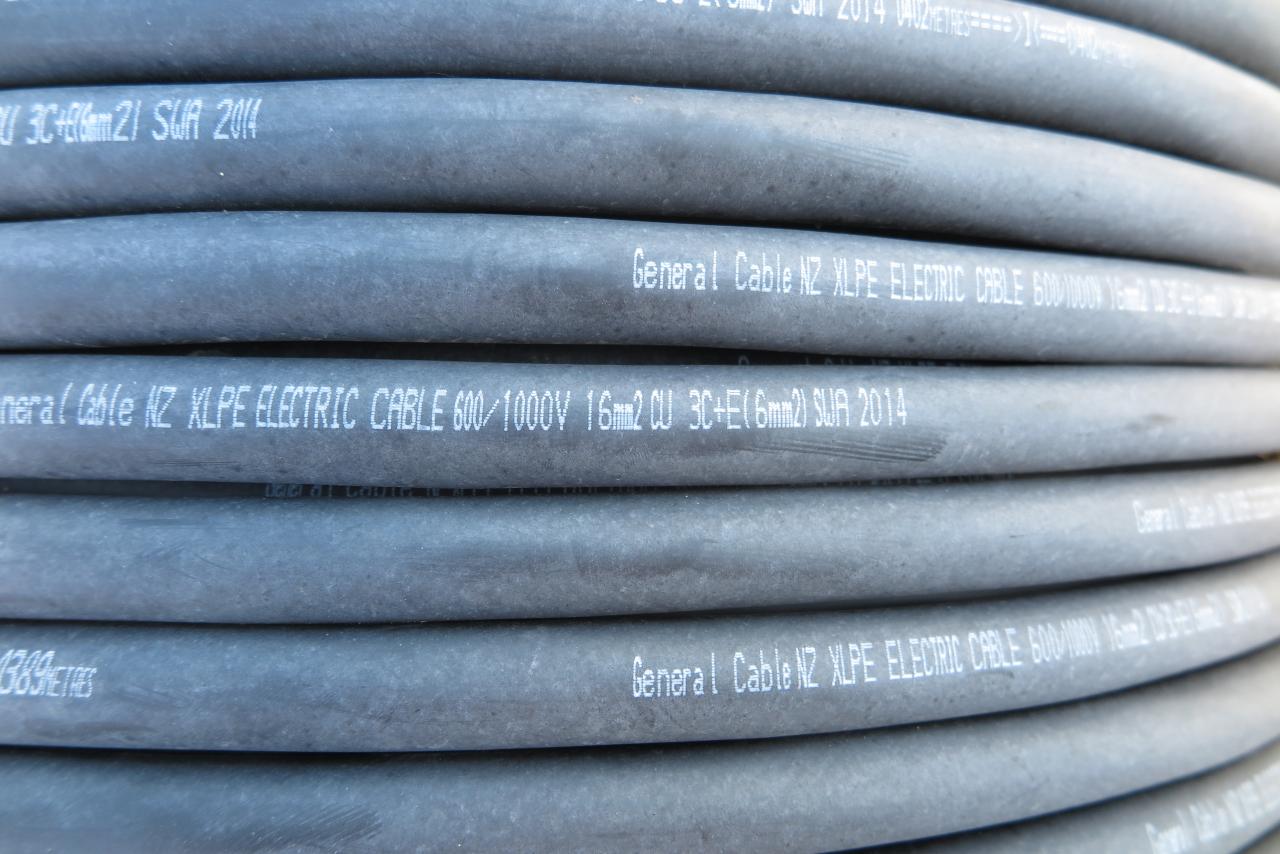

IDENTIFICATION: SHEATH EMBOSSED/PRINTED:
(MANUFACTURERS NAME) XLPE ELECTRIC CABLE 600/1000 VOLT
3 CORE 16MMSQ+EARTH
D.O.M./ M.O.M./ Y.O.M. PLUS
SEQUENTIAL METRE MARKING
DRUM LENGTH:TO BE 500 OR 1000 METRE ONLY UNLESS SPECIFIED
OTHERWISE UNDER RUN OF LESS THAN 2.5% OR OVER RUN OF LESS
THAN 5% ONLY ALLOWABLE
CABLE DRUMS TO BE CONSTRUCTED OF TANALISED TIMBER
NOTE: MANUFACTURING TOLERANCES MAY ALLOW PRODUCT
DIMENSIONS TO LIE OUTSIDE ABOVE QUOTED VALUES
|
