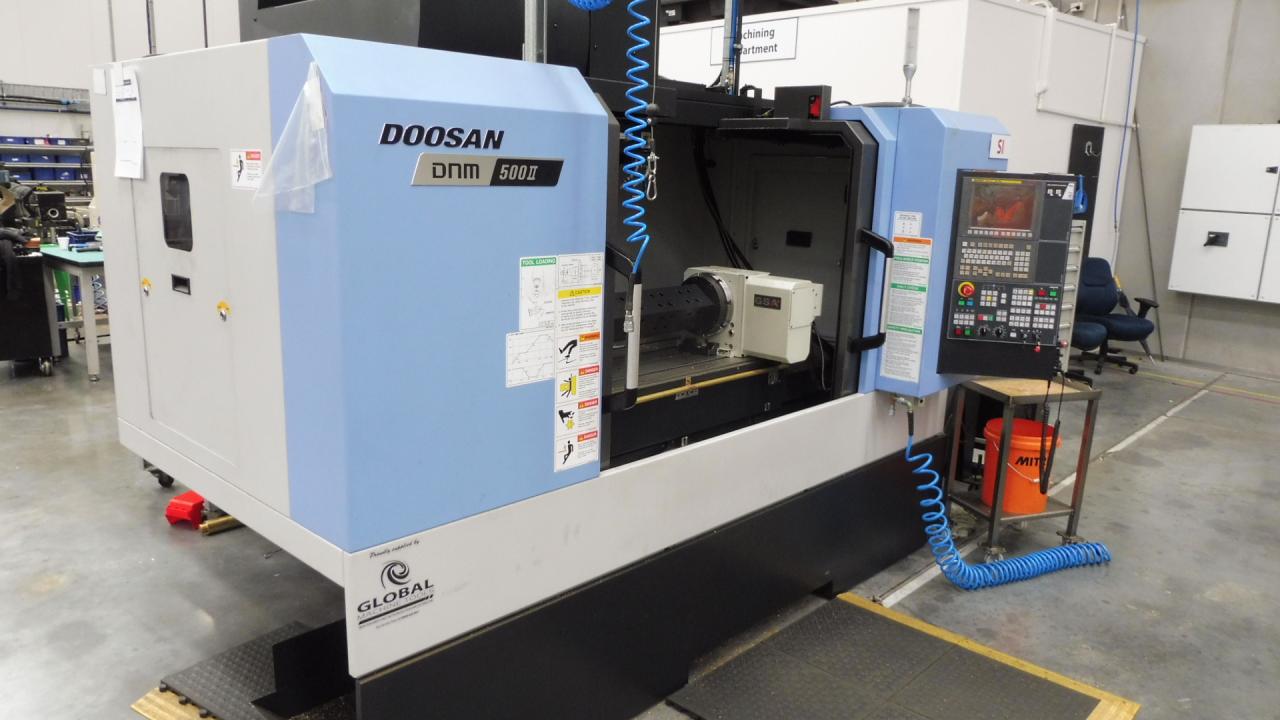

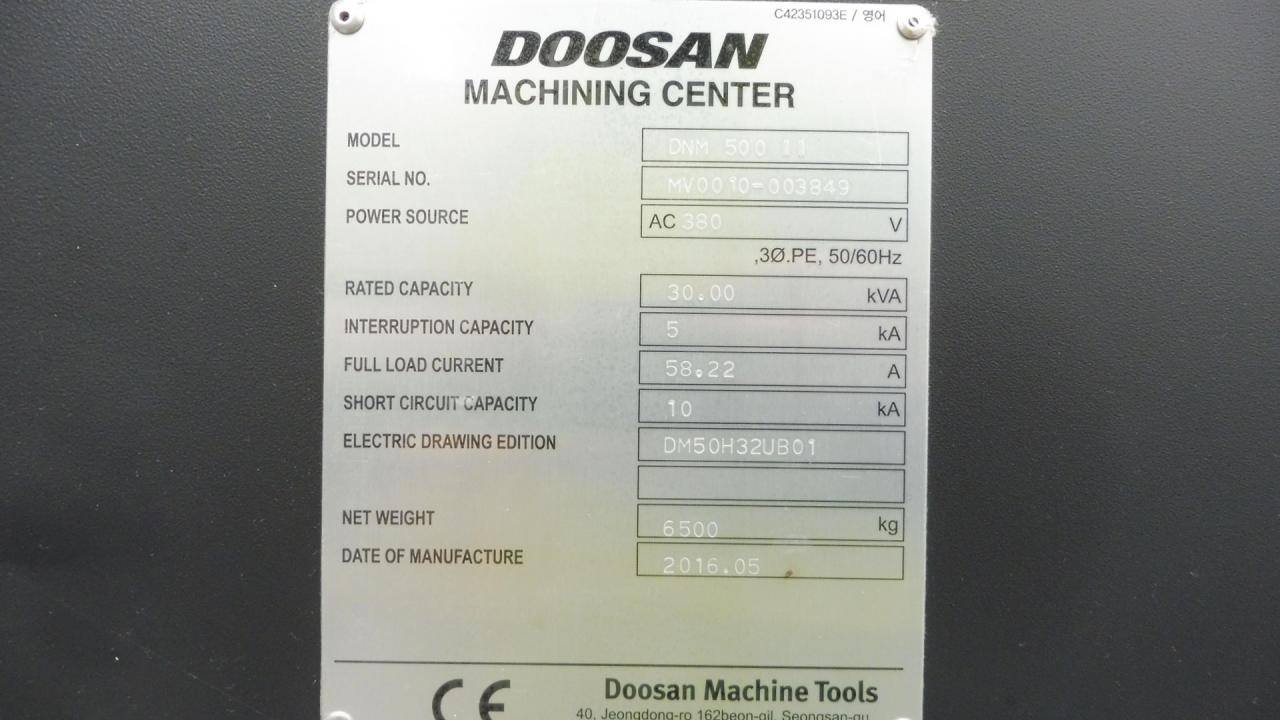

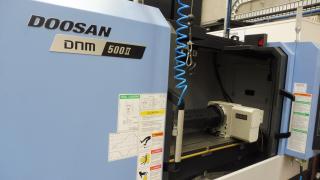

Doosan, DNM 500, Vertical CNC Machining Centre. Year 2016.

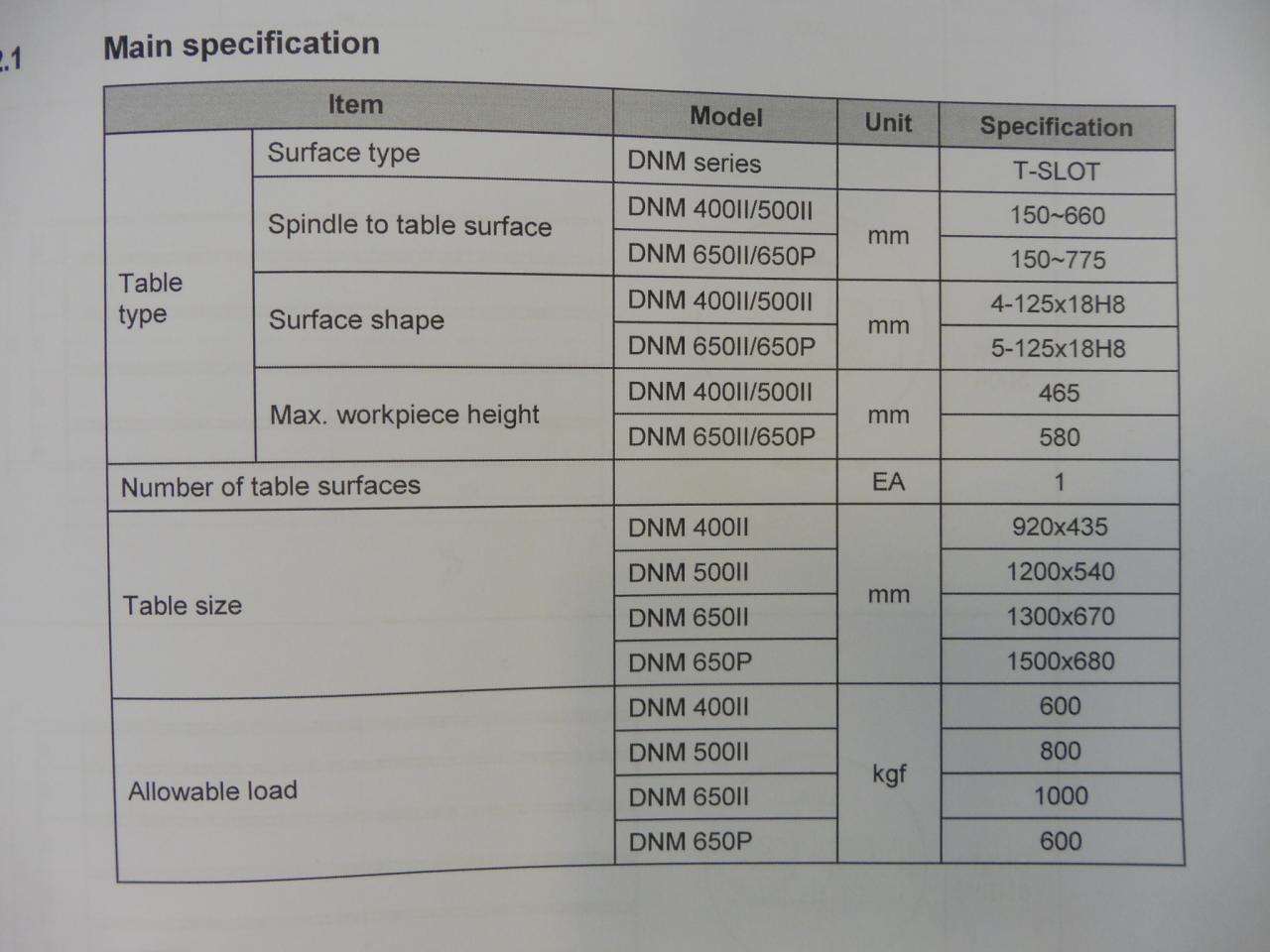

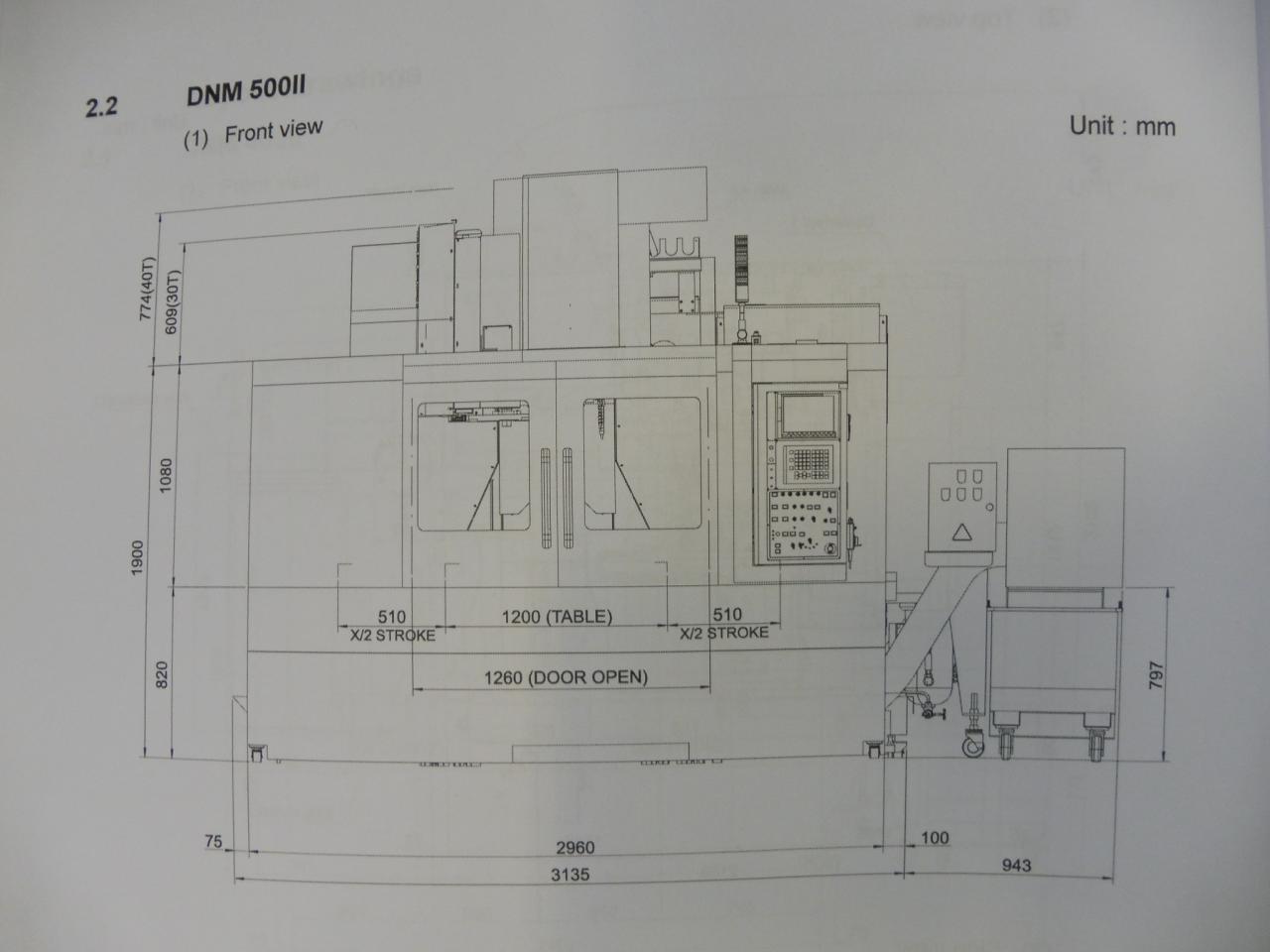

Table Type -"T" slot.. Spindle to table surface-150 to 660mm..Surface Shape-4-125 x 18H8 mm..Max work piece height-465mm..Table Size-1200mm x 540mm..Allowable load-800 kgf.

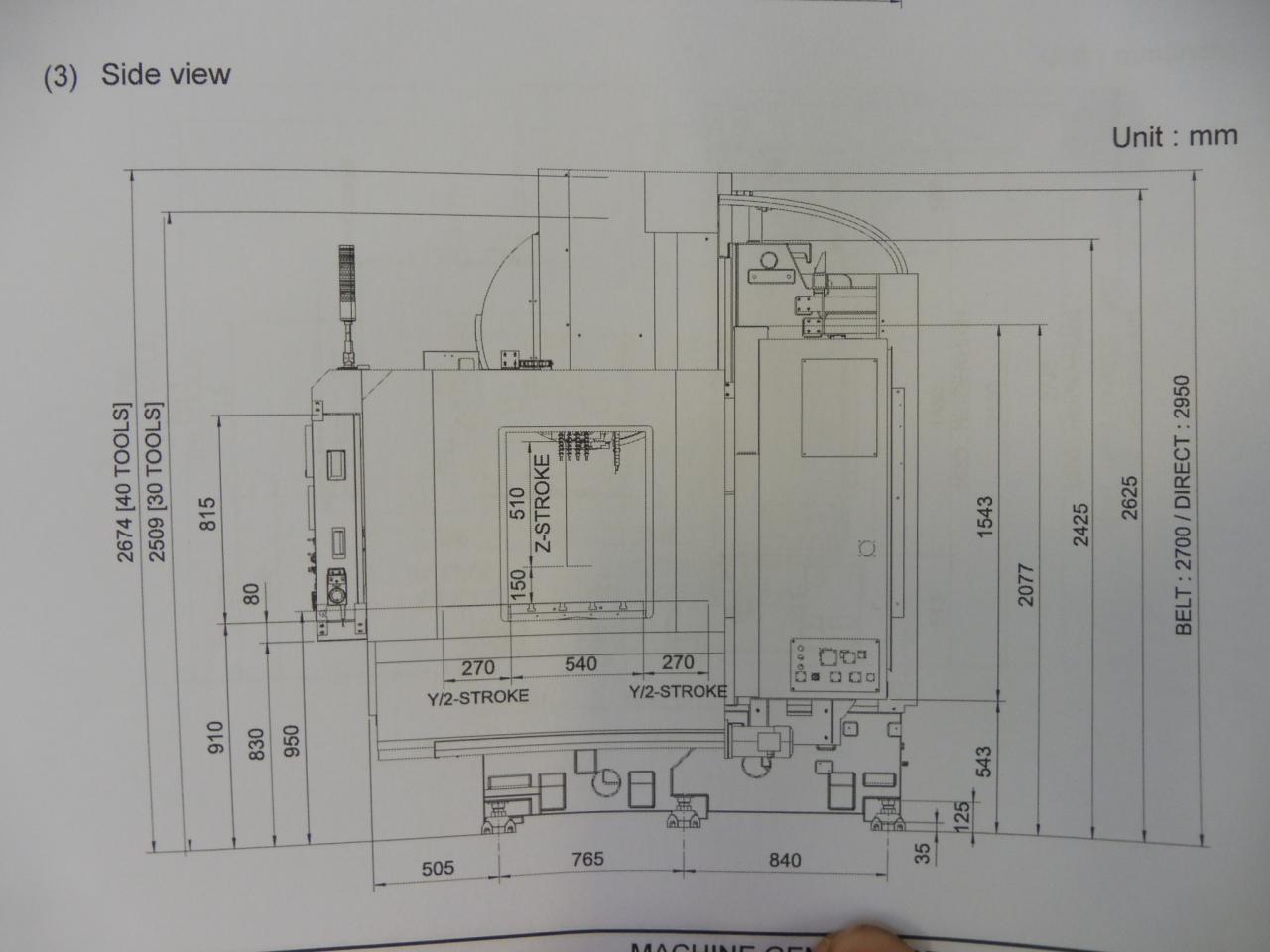

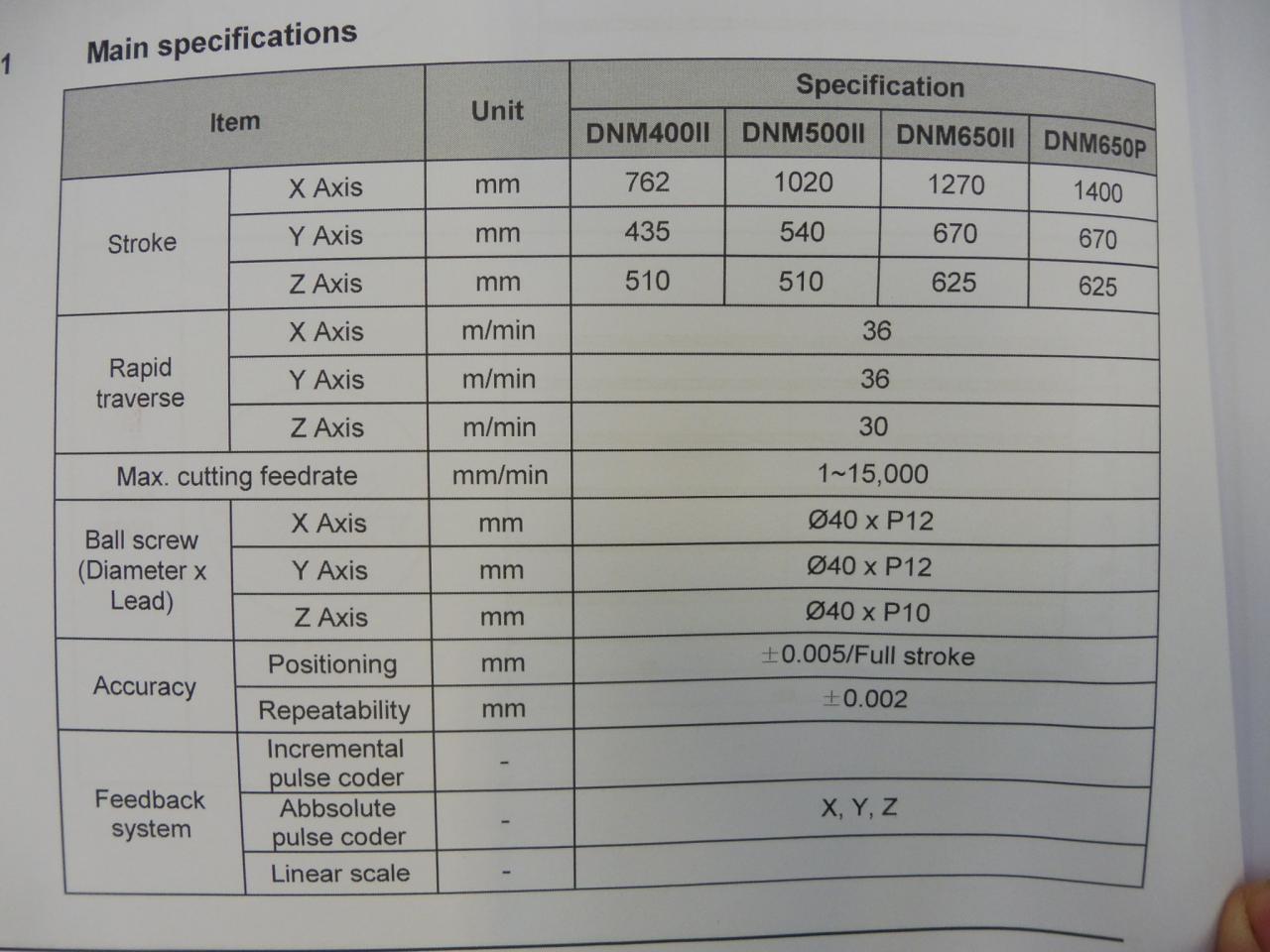

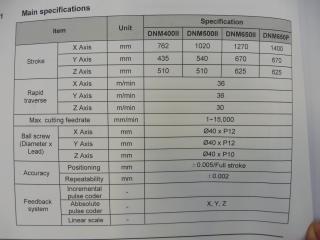

Stroke-X Axis -1020mm - Rapid traverse-36 m/min..Y Axis-540mm-Rapid traverse-36 m/min...Z Axis - 510mm-Rapid traverse-30 m/min.
Max cutting feedrate -1-15000 mm/min...Ball Screw (dia x lead) x - dia 40 x p12mm..Y- dia 40 x p12mm..Z- dia 40 x p10mm. Accuracy Positioning +- 0.005/Full Stroke..Repeatability +- 0.002mm.

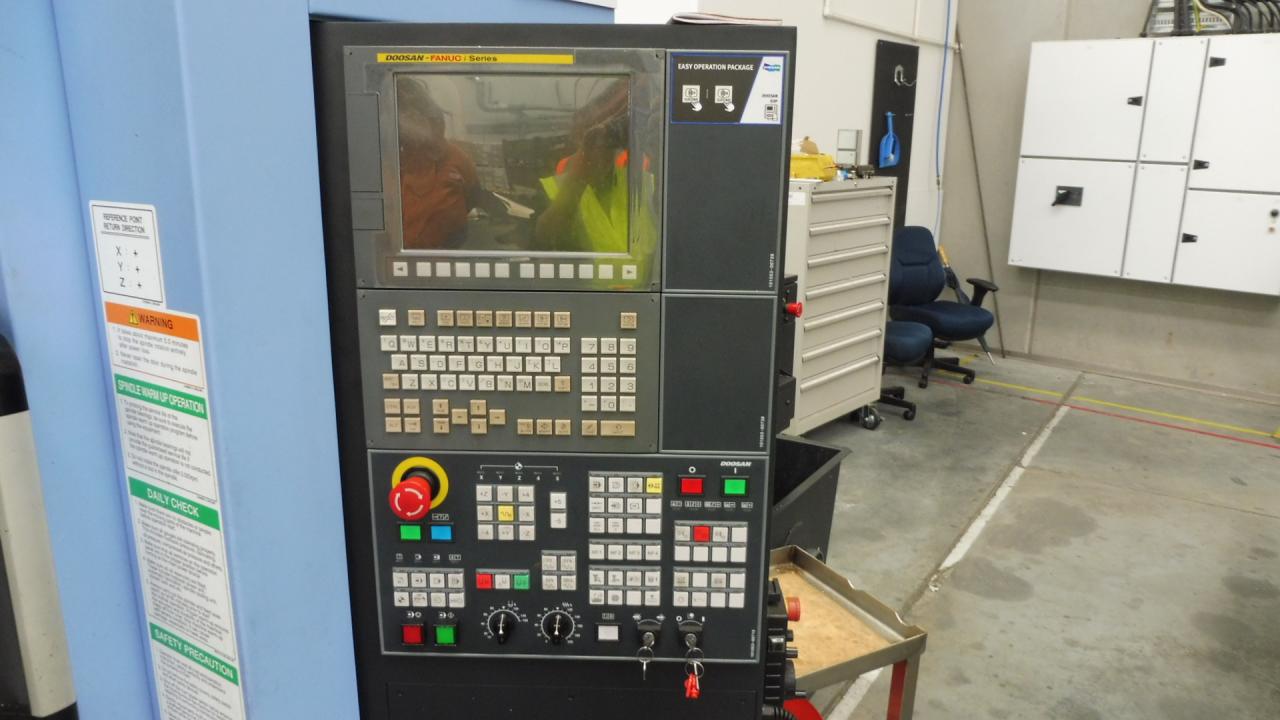

NC System - Fanuc.

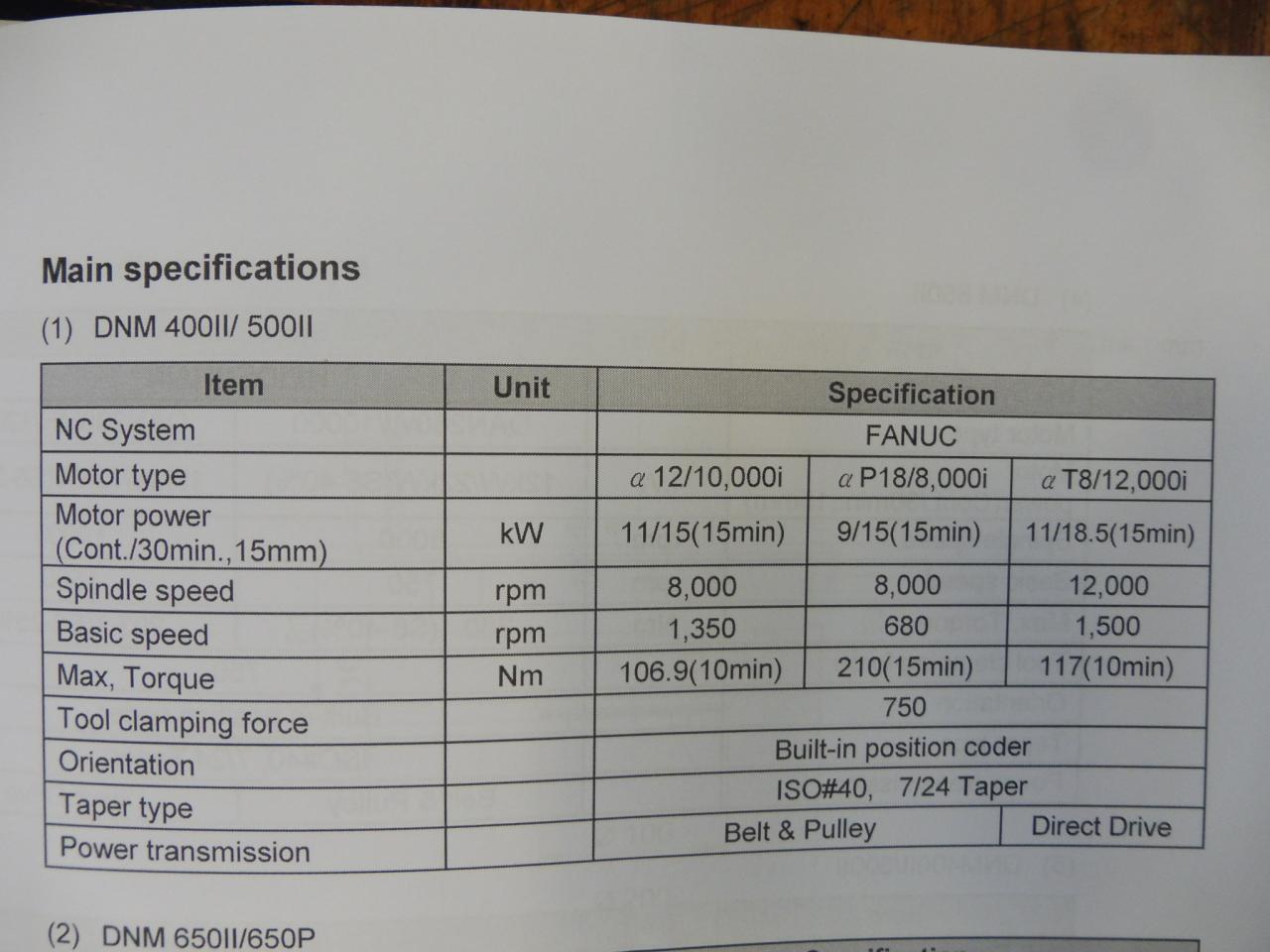

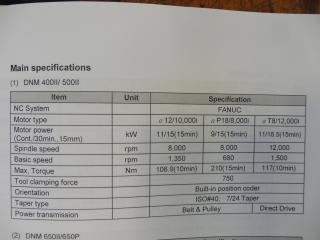

Motor Type - a12/10,000i..motor power-con 30min,15mm..Spindle speed - 8,000 rpm,basic speed - 1350rpm,Max torque - 106.9 nm, tool clamping-750, orientation built in position coder, taper type-Iso 40 7/24 taper.
Motor Type - ap18/8,000i..motor power-11/15 kw,19/15..spindle Speed - 8,000 rpm, basic speed-680 rpm,Max torque-210(15min)Tool clamping - 750, orientation built in position coder, Taper Type-ISO 40 7/24 taper.
Motor Type - aT8/12,000i..motor power-11/18.5 kw..Spindle Speed - 12,000 rpm,basic speed-1500rpm..max torque-117(10 min) Tool clamping force -750 orintation built in position coder..Taper type - ISO 40 7/24 taper.

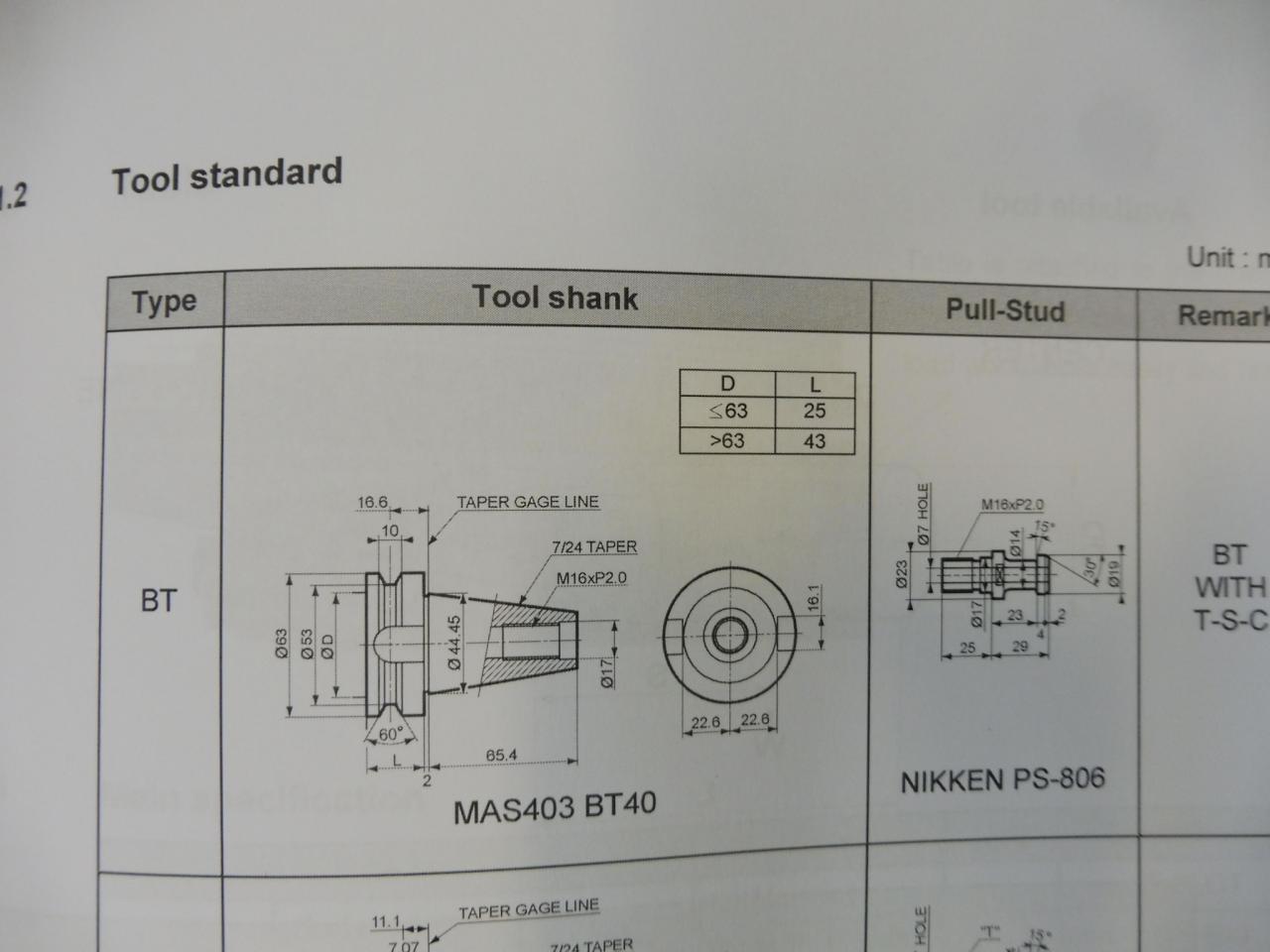

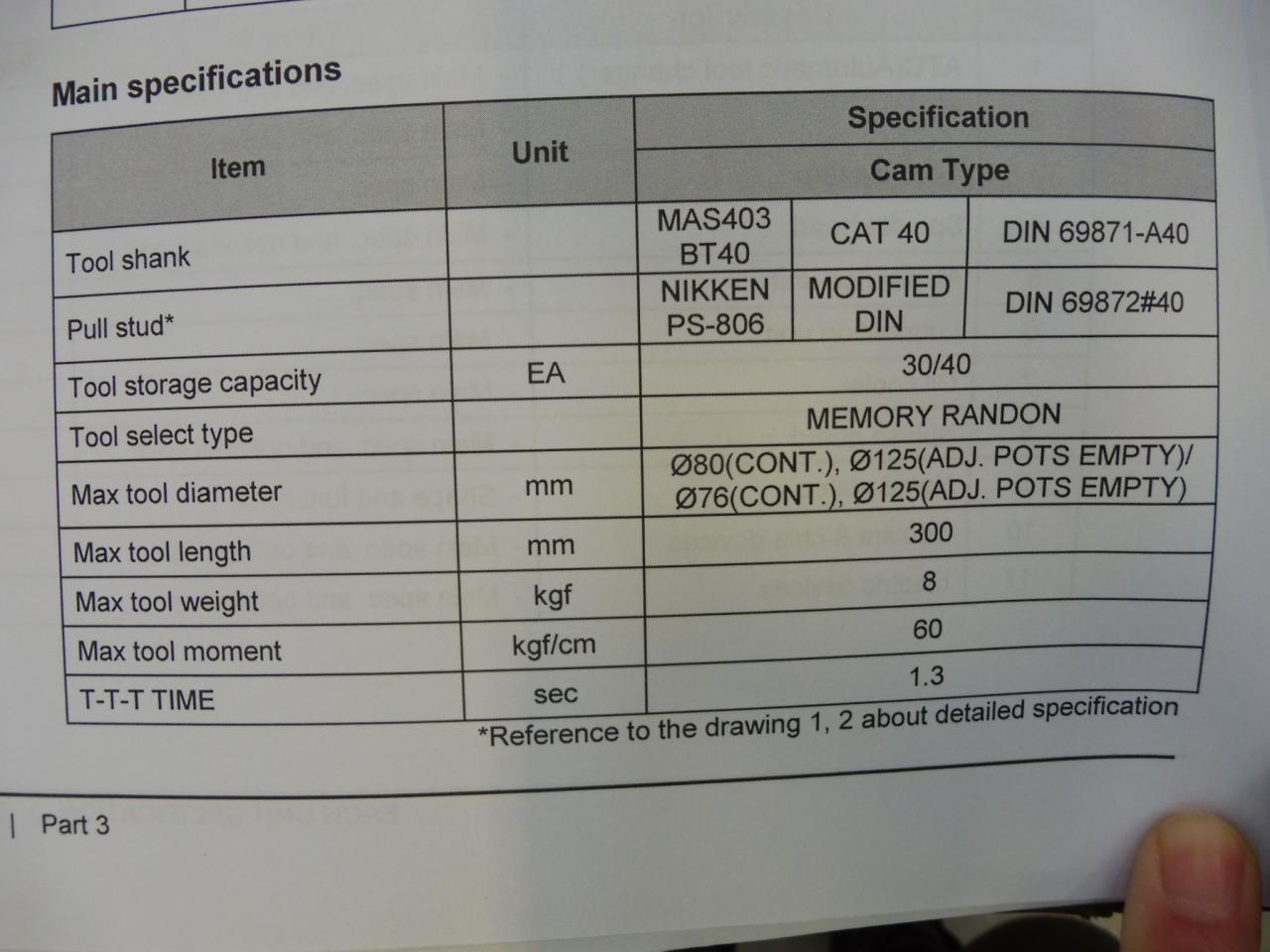

Automatic Tool Changer - Cam Type - ATC..Tool Shank - BT 40..pull stud - Nikken ps806..Tool select type memory random. Max tool dia-80(cont) dia - 76 continuos, dia - 125 adj pots empty..Max Tool Length - 300mm..Max Tool Weight - 8 kgf..T-T-T Time-1.3 sec.
Comes with some tooling.
*ALL MANUALS WILL BE AVAILABLE TO LOOK AT ON VIEWING DAY.
* For Extraction and Trucking - Approved Contractor, Rick's Trucking , contact Richard - mobile 021434428.
