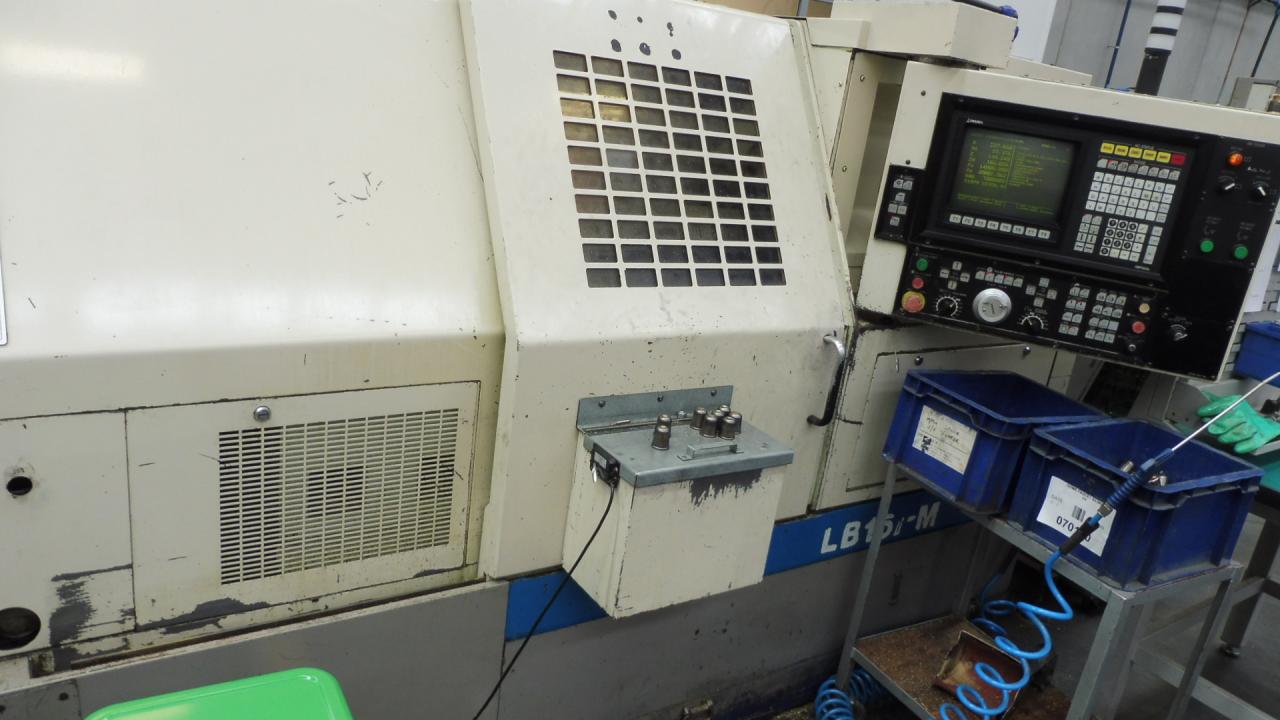

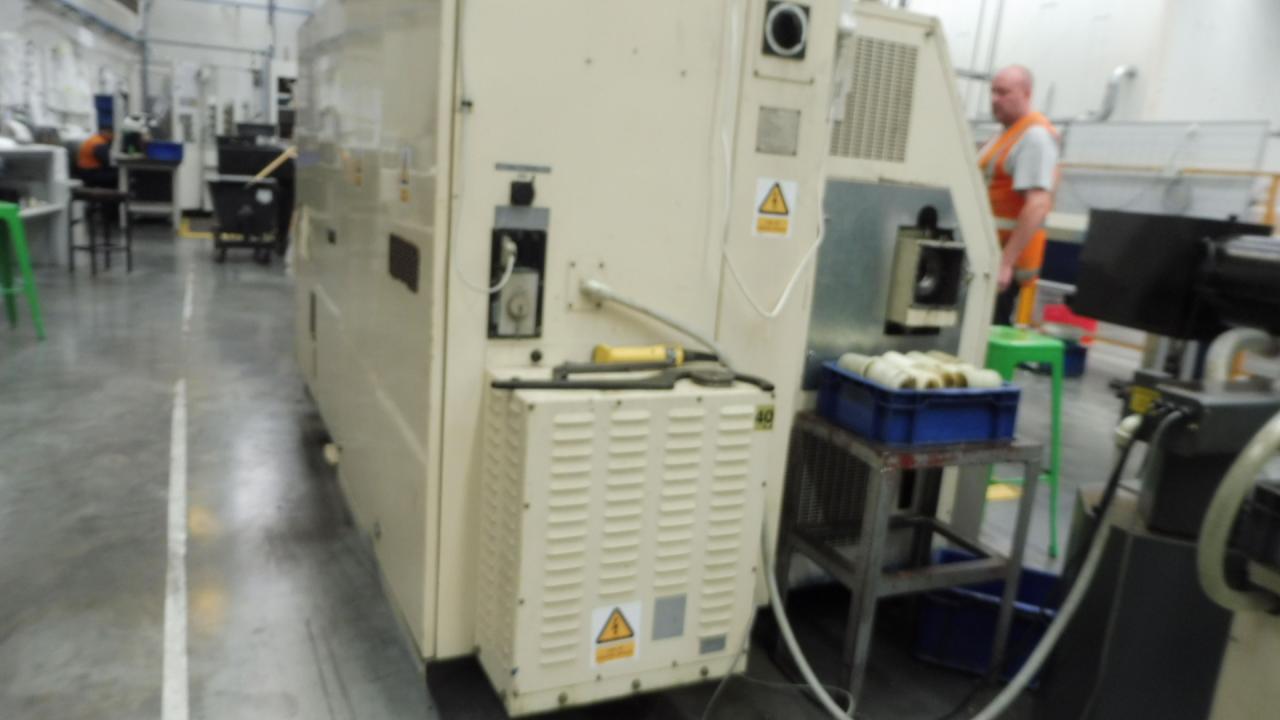

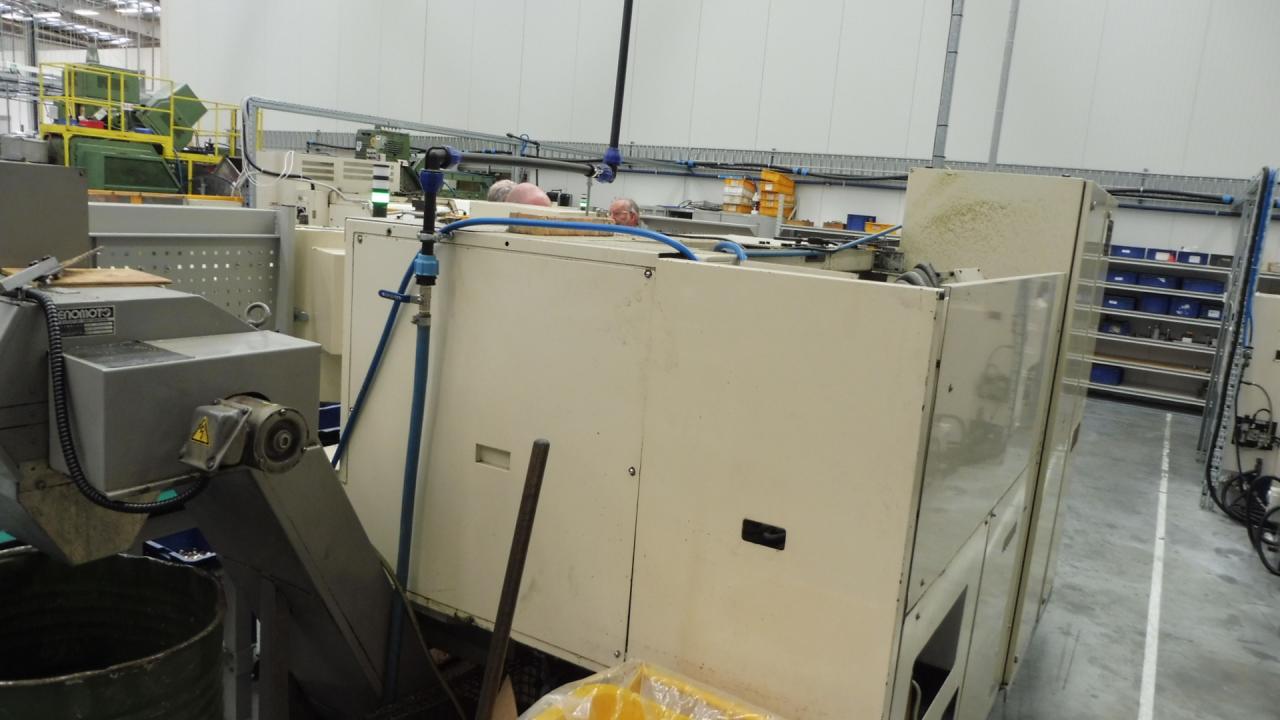

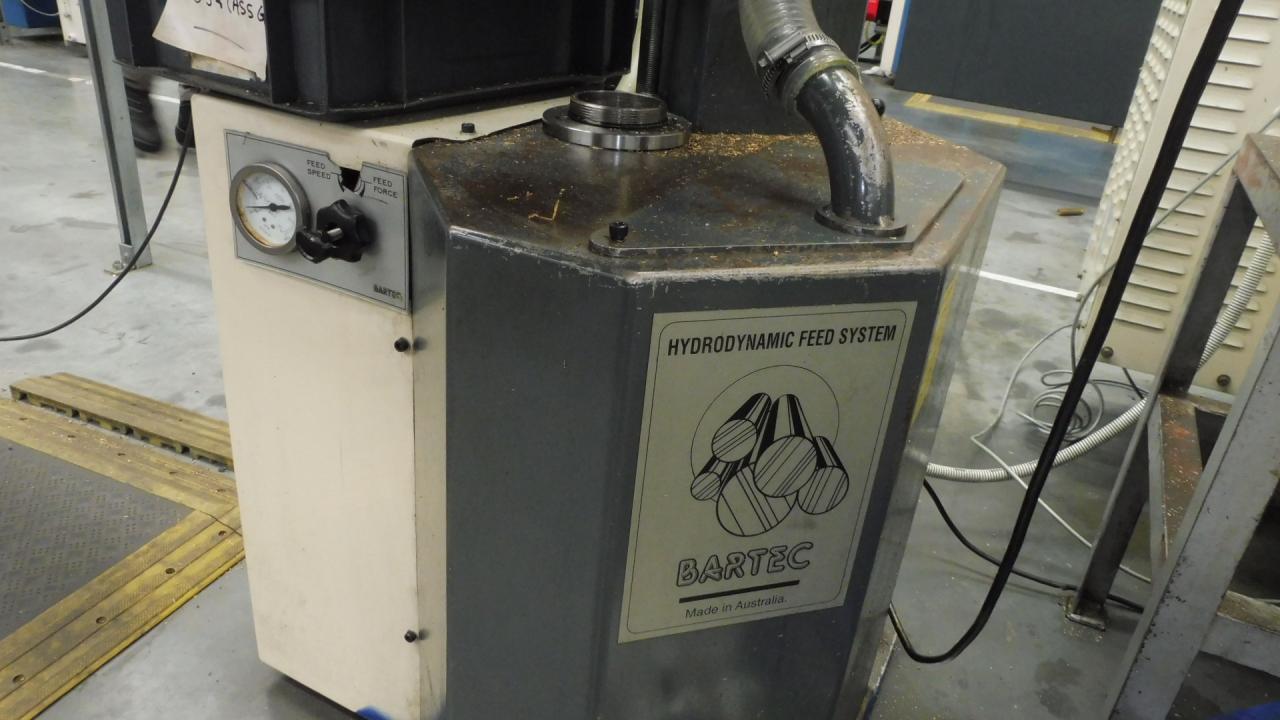

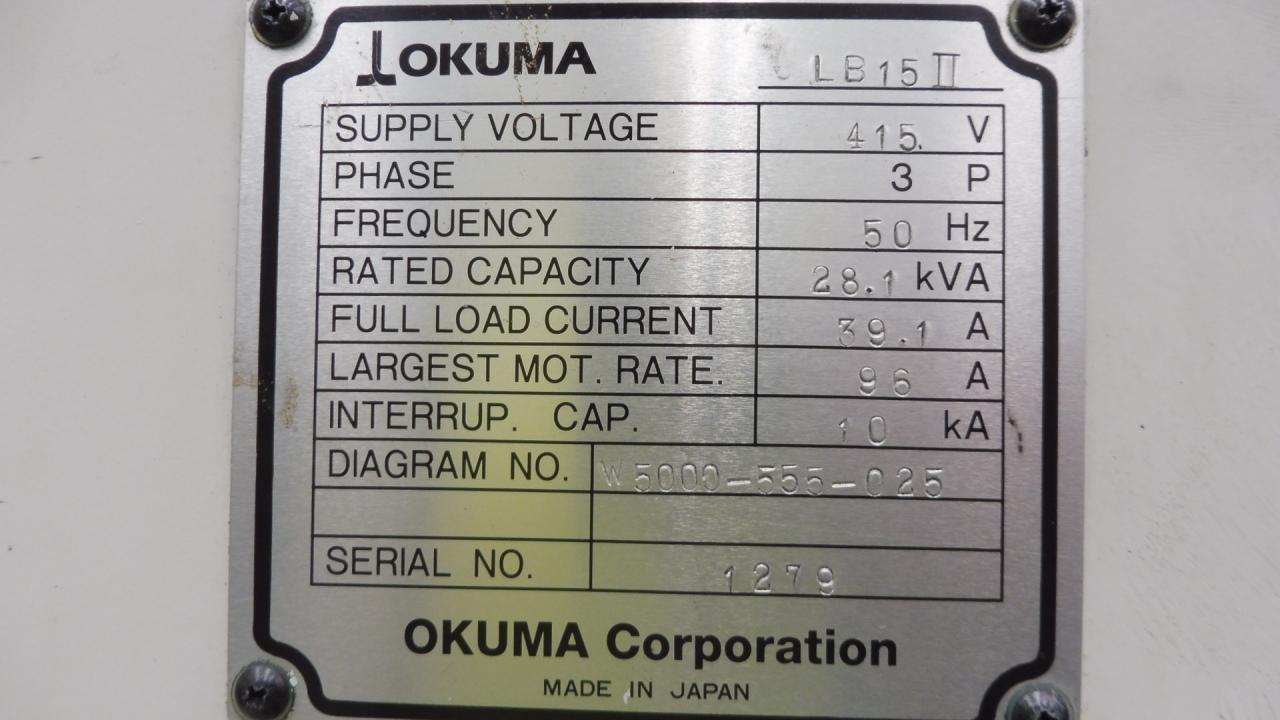

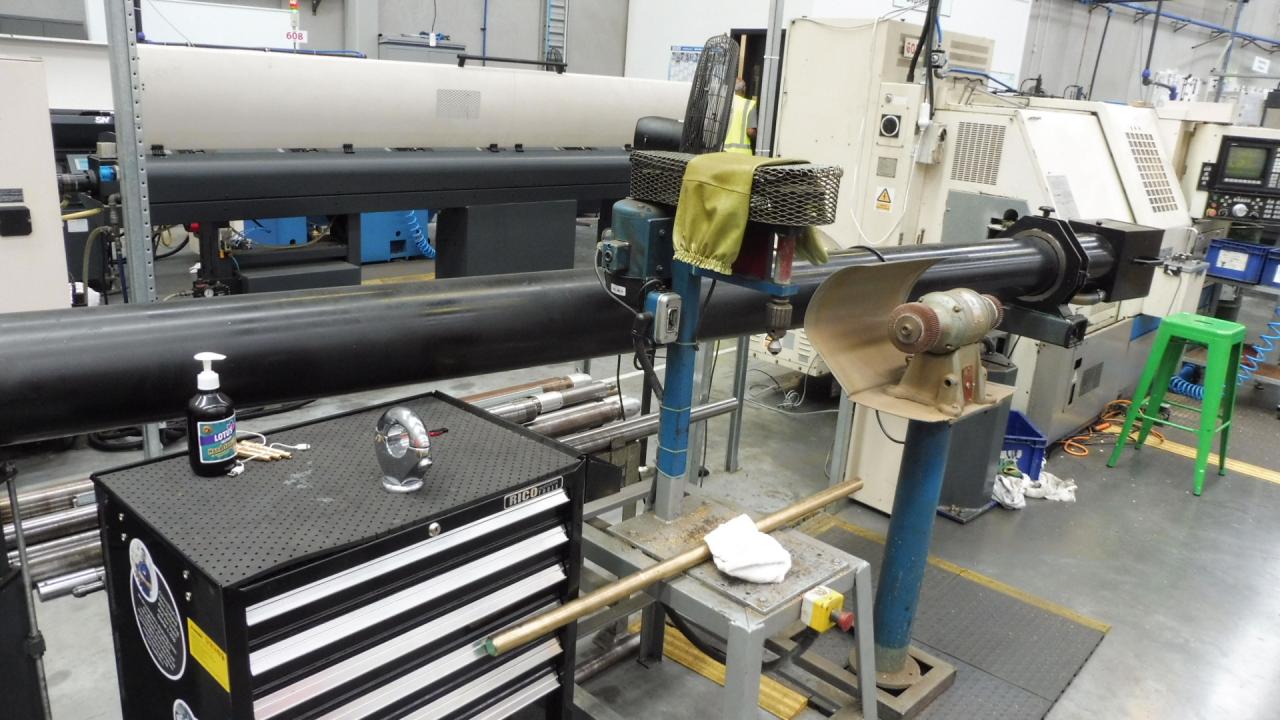

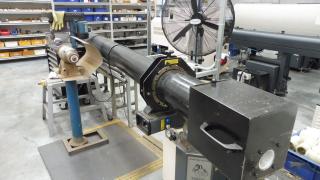

Okuma CNC Lathe model LB15 with Bartec Bar Feeder and Enomoto chip conveyor ( bar feeder is faulty and needs attention ) Serial No;1279; phase 3; 50 hz; Rated capacity; 28.1 KVA; full load current 39.1A; Largest motor rate 96A.
Has travelling centre, tail stock. Right angle and straight driven heads for milling.
Capacity: number of controlled Axis-3; Swing over bed diameter 530mm; Swing over carriage-dia 530mm; Swing over cross slide-dia 340mm; Distance between centres? Max turning dia x Length ? Spindle Dia 100mm; Spindle nose type; Jis A2-6; Taper Hole dia 70mm x 1/10 dia 90mm x 1/10; Through Spindle Hole-dia 62mm-dia 80mm; Number of spindle speed ranges 1 step; Spindle Speed 38-3800 rpm; Carriage (z axis) axis travel 520mm.
Comes with some tooling.
Manuals available for viewing onsite.
* For Extraction and Trucking - Approved Contractor, Rick's Trucking , contact Richard - mobile 021434428.
